72
FI727
FI728

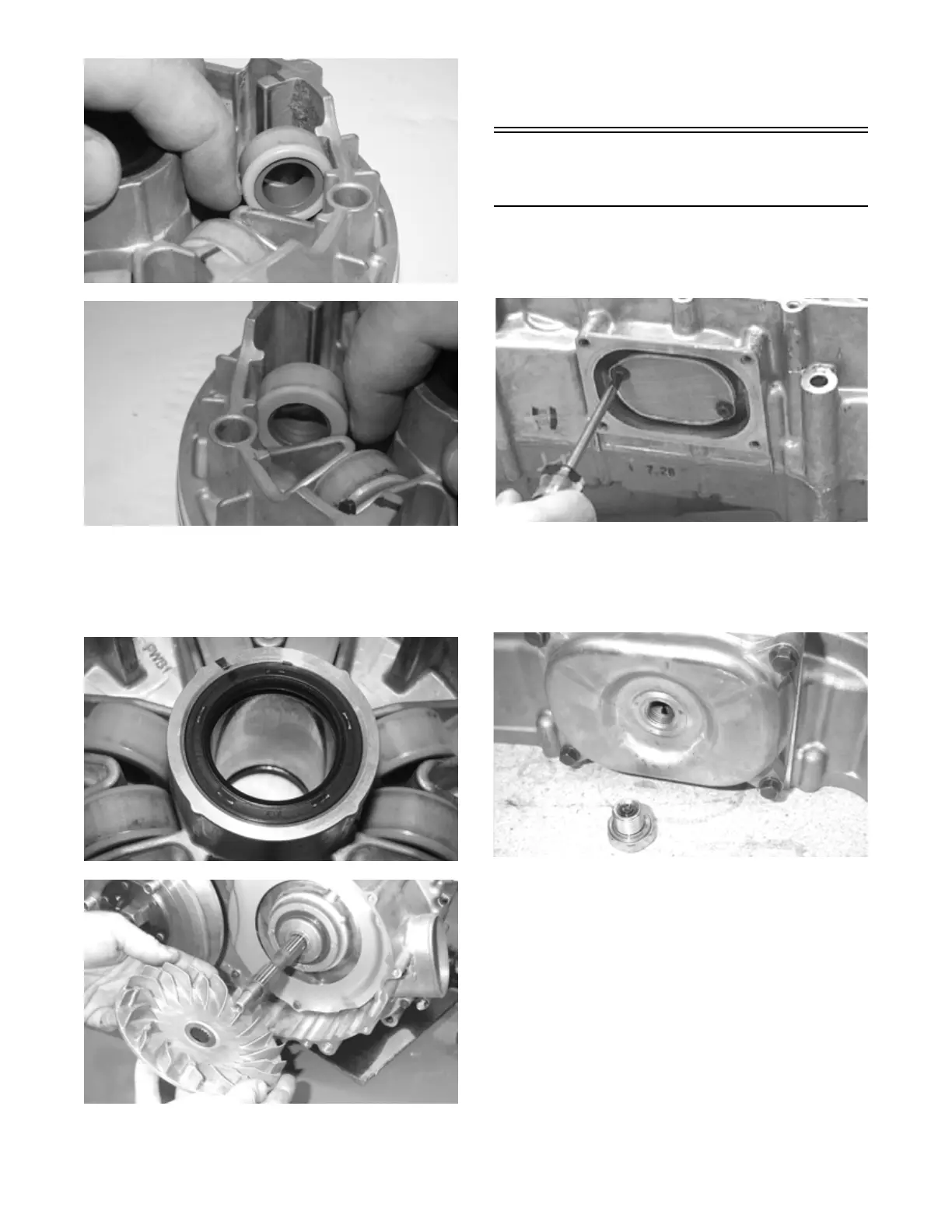

3. Check the seals on both sides, internal bushing of the
movable drive sheave and surface of the spacer.
Replace as necessary. Check the fixed drive sheave
internal splines for excessive wear. Check for any
broken cooling fins and replace as necessary.
FI729
MD1094
DRIVEN PULLEY ASSEMBLY
NOTE: The driven pulley assembly is only service-
able as an assembly.
Installing Left-Side
Components
A. Oil Strainer/Oil Pump
1. Place the oil strainer into position beneath the crank-
case. Tighten the Phillips-head screws securely.
MD1337
2. Place the strainer cap into position on the crankcase
making sure the O-ring is properly installed and
secure with the four cap screws. Tighten the cap
screws to 10 ft-lb (13.6 N-m); then install the oil
drain plug and tighten to 16 ft-lb (21.8 N-m).
MD1208
3. Place two alignment pins and the oil pump into posi-
tion on the crankcase and secure with the Phillips-
head screws coated with red Loctite #271. Tighten to
8 ft-lb (10.9 N-m).
