70
MD1020
G. Oil Pump/Oil Strainer
NOTE: Steps 1-17 for the removal of items A
through F in the preceding sub-sections must precede
this procedure.

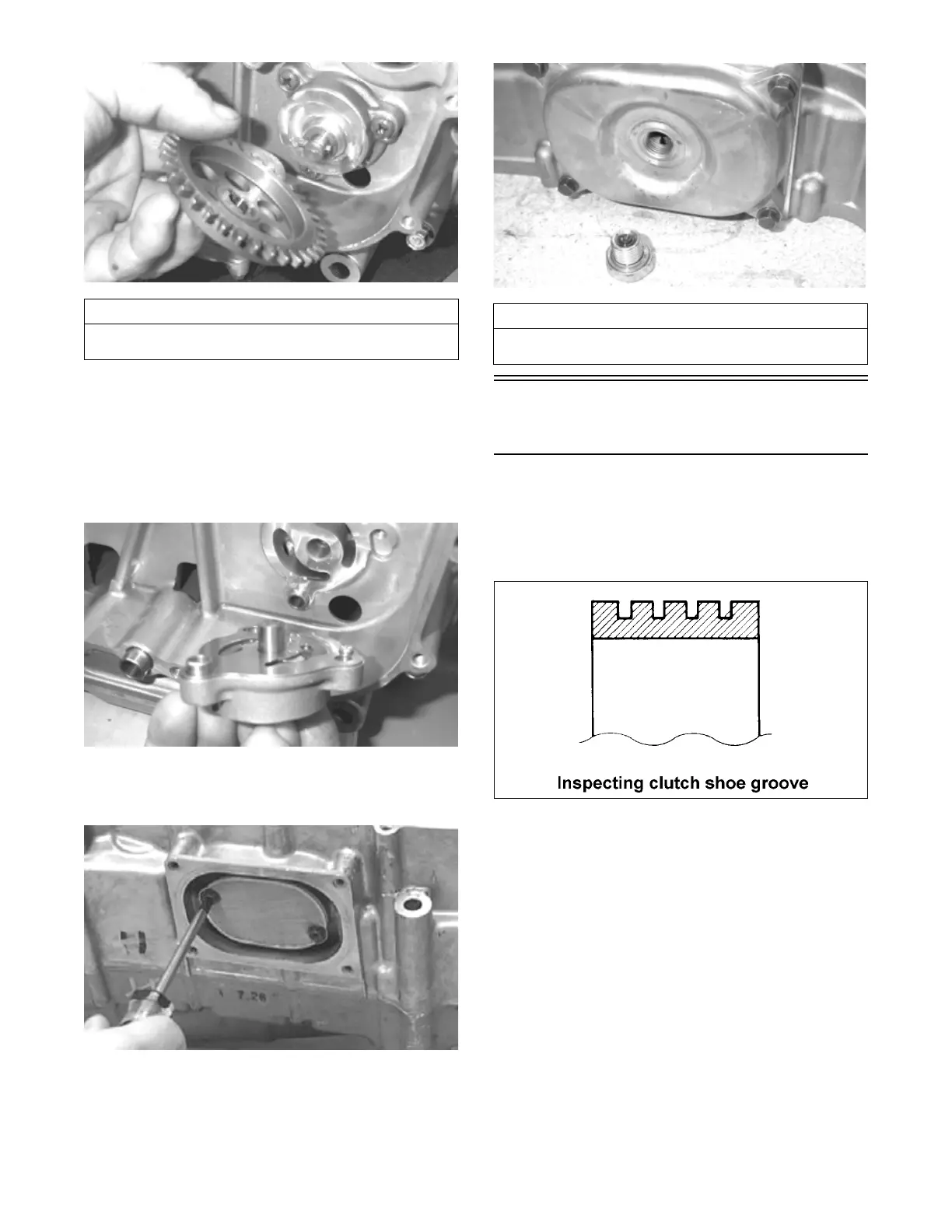

18. Remove three cap screws holding the oil pump and
remove the oil pump. Account for two alignment
pins.
MD1060
19. Remove the four cap screws securing the oil strainer
cap; then remove the Phillips-head screws securing
the oil strainer. Account for the O-ring.
MD1337
MD1208
Servicing Left-Side
Components
INSPECTING CENTRIFUGAL CLUTCH
SHOE
Inspect the clutch shoe for uneven wear, chips, cracks, or
discoloration. If wear is present, replace the clutch
assembly.
ATV1014
INSPECTING CENTRIFUGAL CLUTCH
HOUSING
1. Inspect the clutch housing for burns, marks, scuffs,
cracks, scratches, or uneven wear.
2. If the housing is damaged in any way, the housing
must be replaced.
INSPECTING PRIMARY
ONE-WAY DRIVE
1. Place the one-way clutch onto the clutch shoe assem-
bly with the green dot or the word “OUTSIDE”
directed away from the clutch shoe.
AT THIS POINT
To service clutch components, see Servicing Left-Side
Components sub-section.
AT THIS POINT
To service center crankcase components only, proceed
to Separating Crankcase Halves.
