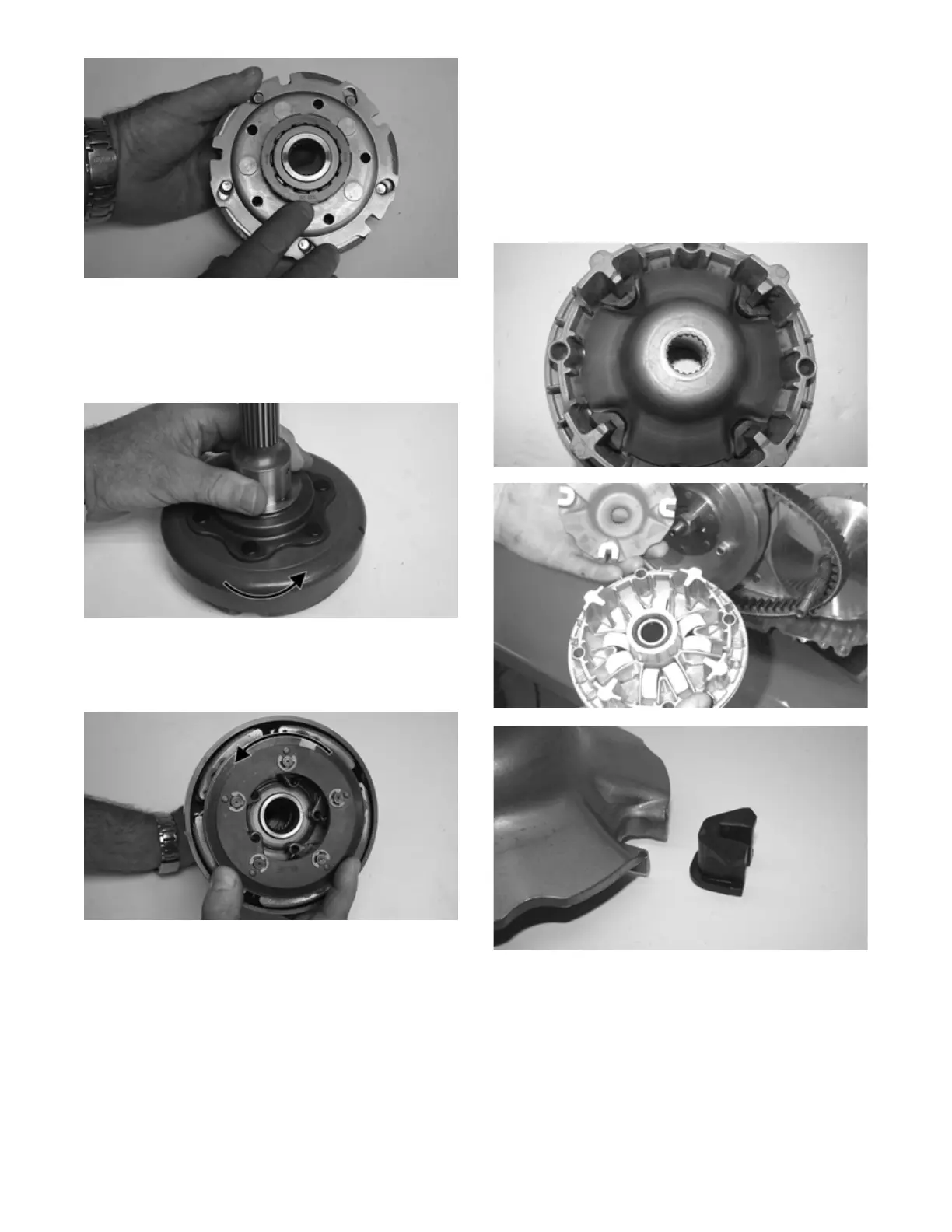

2. Place the clutch housing onto the clutch shoe/one-
way clutch.
NOTE: It will be necessary to rotate the clutch
housing counterclockwise to properly seat the one-
way clutch.
KC331A
3. Check that the clutch shoe can only be rotated coun-
terclockwise in respect to the clutch housing. If the
clutch shoe locks up or turns in both directions, the
one-way clutch must be replaced.
KC332A
INSPECTING OIL PUMP
1. Inspect the pump for damage.
2. It is inadvisable to remove the screw securing the
pump halves. If the oil pump is damaged, it must be
replaced.
NOTE: The oil pump is only serviceable as an
assembly.
INSPECTING DRIVE CLUTCH
ASSEMBLY
1. Slide the sheave plate out of the movable drive
sheave. Make note of each drive face plate damper
orientation before removing. Check for excessive
wear, warping or any cracks. Replace as necessary.
Check the internal splines of the sheave plate for
excessive or abnormal wear. Inspect the roller sur-
face of the sheave plate for abnormal wear or pitting.
Replace as necessary.
FI730
MD1036
FI731
2. Note the roller locations and orientation; then
remove the rollers. Check for flat spots or abnormal
or excessive wear.
