Tracker Off-Road 500S - Page 31

29
PK136A
PK137A

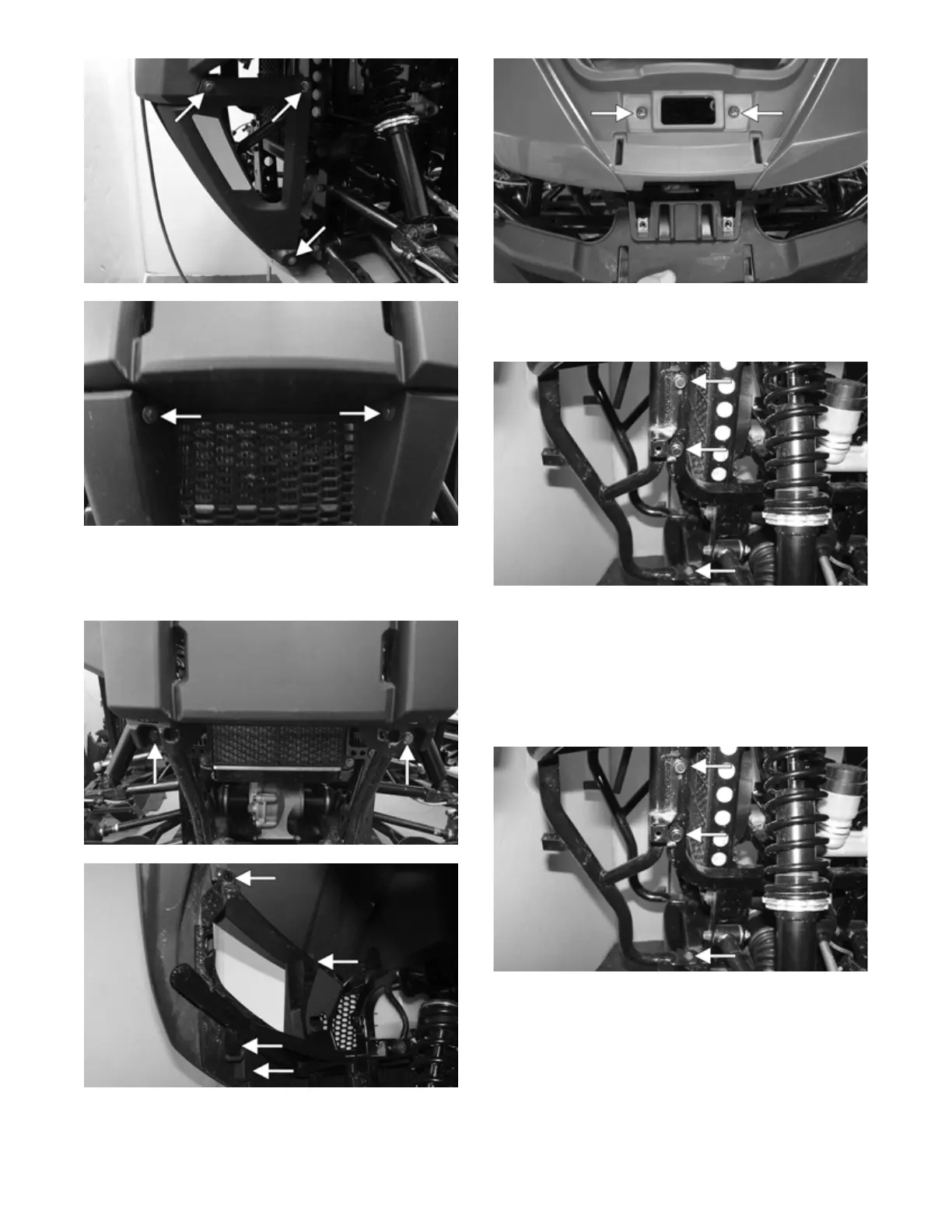

2. Remove the two cap screws at the front of the upper
fascia secured to the frame; then remove the cap
screws securing the upper fascia from around the
headlights.
PK139A
PK138A
3. Remove the two remaining machine screws; then
separate the upper fascia from the front body panel
for removal.
PK140A
4. Disconnect both headlight assemblies; then remove
the cap screws securing the bumper to the frame
from both sides of the vehicle. Remove the bumper.
PK141A
5. Remove the two Z-shaped retaining clips securing
each side of the headlights to the bumper; then
remove the tilt adjust knob.
INSTALLING
1. With the headlights installed, place the front bumper
into position and secure the cap screws. Tighten to 22
ft-lb (29.9 N-m). Connect each headlight connector.
PK141A
2. Place the upper fascia into position and secure the
cap screws.
