32
PK145A

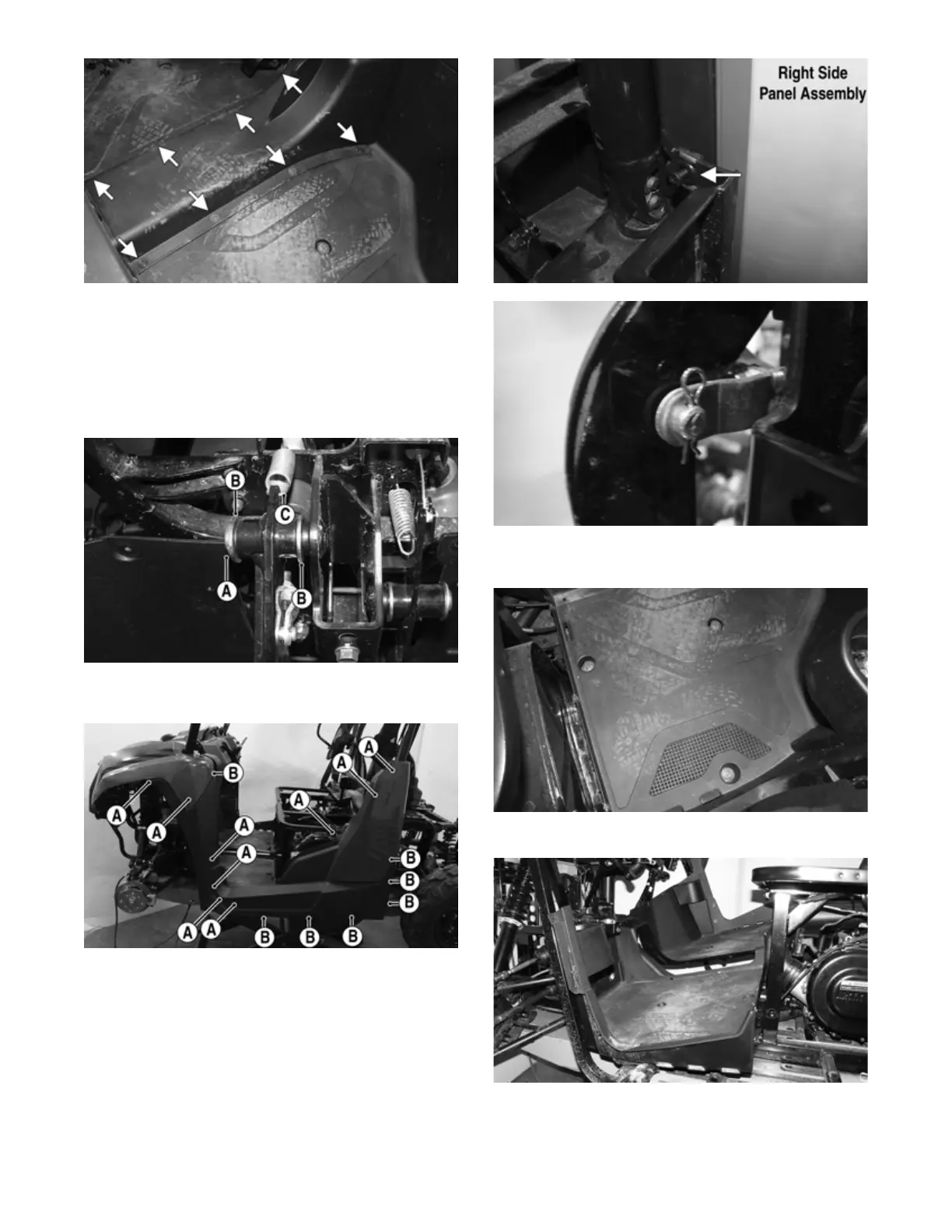

3. Remove the accelerator pedal (see Accelerator Pedal
in this section).
4. Remove the cotter pin and clevis pin securing the
master cylinder plunger to the brake pedal lever.
Remove the E-clip (A) securing the brake pedal lever
to the bracket. Release the return spring (C). Remove
the brake lever and account for the washers (B).
PK147A
5. Remove the cap screws (A) and plastic rivets (B) to
remove both left and right side panel assemblies.
PK093B
NOTE: To remove the right side panel assembly,
the gas tank cap and an additional plastic rivet,
located behind the right-rear ROPS tube securing the
rear splash panel to the side panel, must be removed.
PK148A
PK146
6. Remove the remaining cap screws securing the floor
board to the frame from each side of the vehicle.
PK149
7. Remove the floorboard.
PK150
CLEANING AND INSPECTING
1. Clean the floor with soap and water.
2. Inspect the floor for cracks or holes.
