45
PK168

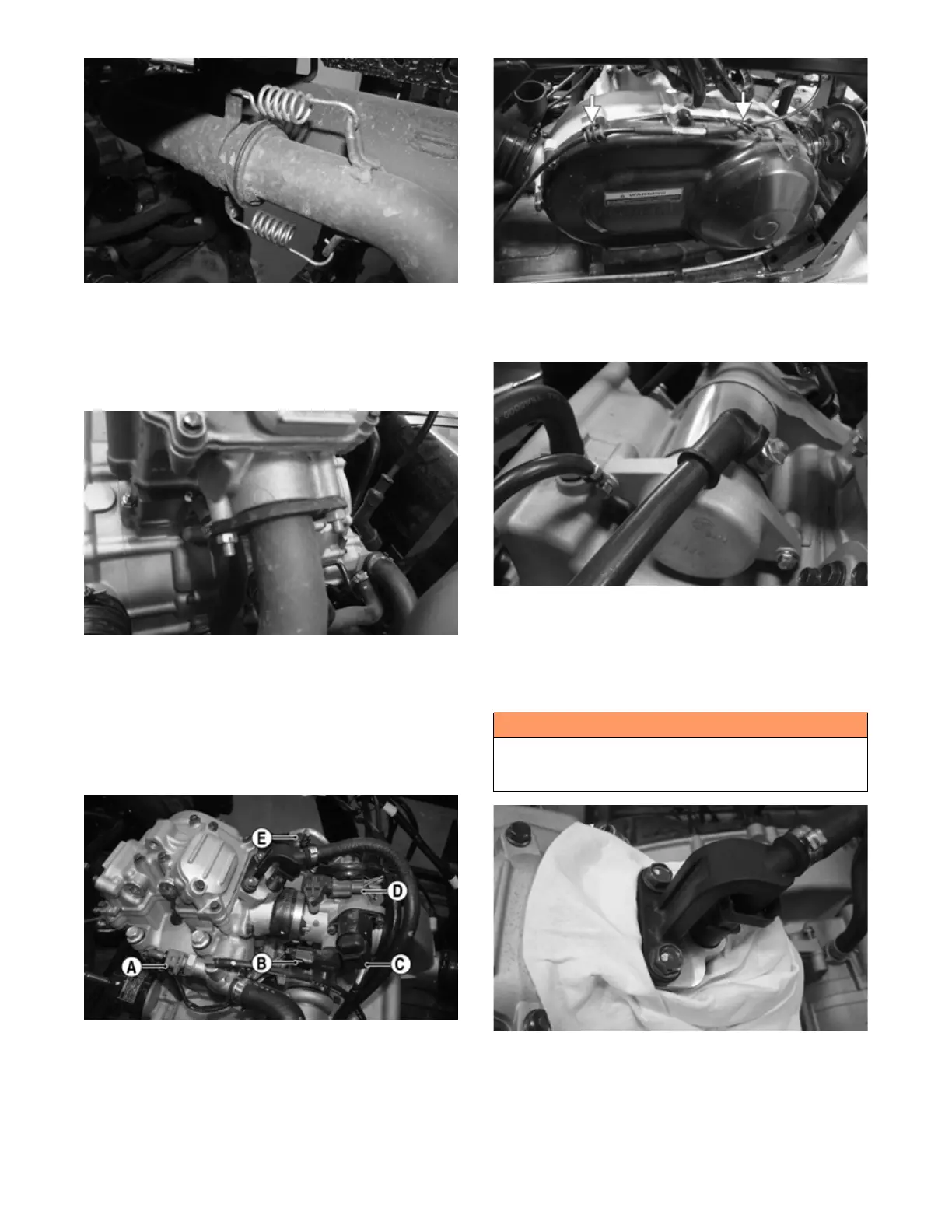

15. Mark the cable tie location; then remove the cable tie
securing the O2 sensor wire to the frame. Disconnect
the O2 sensor connector, then remove the two nuts
securing the exhaust pipe to the cylinder head.
Remove the exhaust pipe. Account for the head pipe
gasket.
PK169
16. Remove the spark plug cap from the spark plug. Dis-
connect the coolant temperature sensor (A), TPS (B),
ISC (C), TMAP (D), and fuel injector (E) connec-
tors. Secure the harness out of the way. Loosen the
clamp securing the throttle body to the intake boot.
Note the throttle cable routing and release the throttle
cable from the clamps attached to the top of the CVT
housing; then secure the throttle body out of the way.
PK170A
PK111A
17. Remove the starter cable from the starter motor; then
remove the engine ground cable from the front
starter motor mount.
PK171
18. Wrap a shop towel around the fuel injector and rail.
Remove the two cap screws securing the fuel rail to
the cylinder head. Carefully remove the rail and
injector. Account for the O-ring (A) on the injector
then release the fuel line from the engine clamp (B).
Secure the fuel line out of the way.
PK172
! WARNING
Gasoline may be under pressure. Place an absorbant
towel around the connector to absorb any gasoline
spray when disconnected.
