49
MD1131

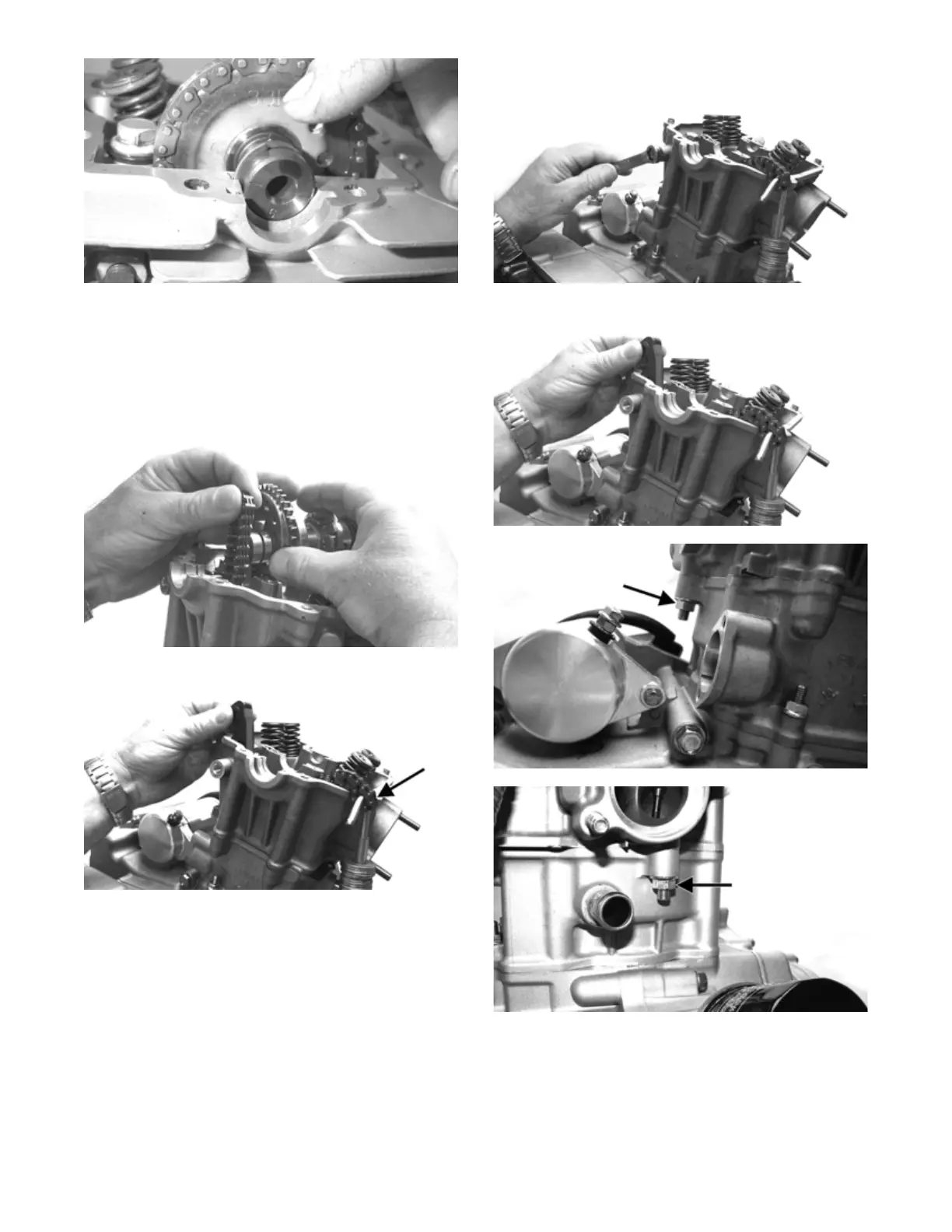

6. Noting the timing marks for installing purposes, drop
the sprocket off the camshaft. While holding the cam
chain, slide the sprocket and camshaft out of the cyl-
inder head. Account for an alignment pin.
NOTE: Loop the chain over the cylinder and secure
it to keep it from falling into the crankcase.
FI620
FI617A
7. Remove the cam chain tensioner pivot bolt and
remove the chain tensioner; then remove the two
nuts securing the cylinder head to the cylinder.
FI616
FI617
FI618A
FI619A
8. Remove the four cylinder head cap screws and wash-
ers. Note that the two cap screws on the right side of
the cylinder head nearest the cam sprocket are longer
than the two cap screws on the left (spark plug) side.
