85

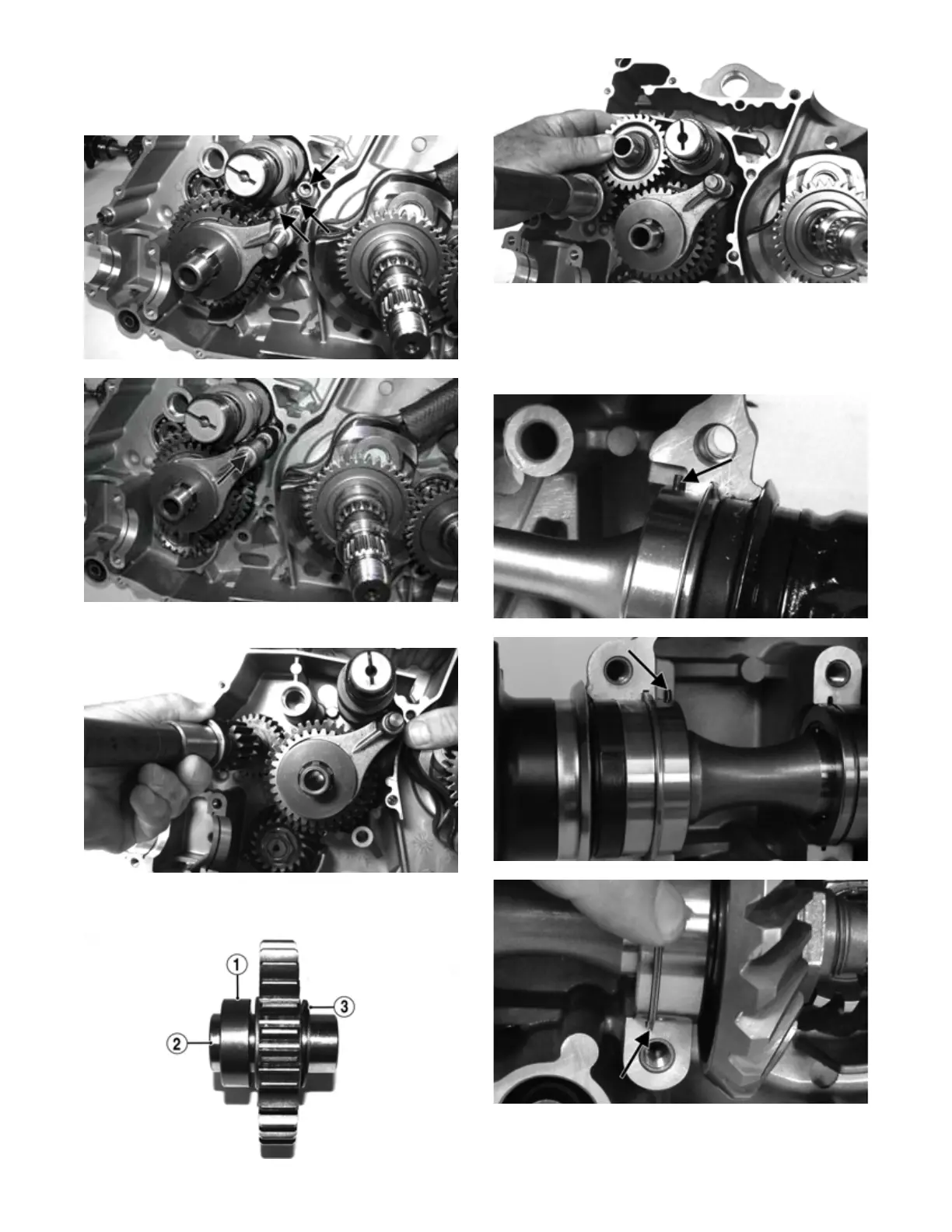

8. Align the shift forks to allow engagement with the
shift cam; then engage the shift forks and slide the
shift fork shaft into the locating boss in the crank-
case.
FI653A
FI655A
9. Install the input driveshaft.
FI646
10. Install the spacer (1), shaft (2), reverse idler gear, and
washer (3).
FI641A
FI645
11. Install the secondary output driveshaft assembly into
the crankcase half making sure the front and rear
bearing alignment pins are seated in the recesses;
then install the center carrier bearing alignment C-
ring.
FI660A
FI659A
FI661A
