13
Physical Features
Connect to 12 volt system:
12 Volt Systems:
The backlight will be 5x brighter.
The temperature and voltage
indicator LEDs will be enabled.
The voltage readout will function.
•
•
•

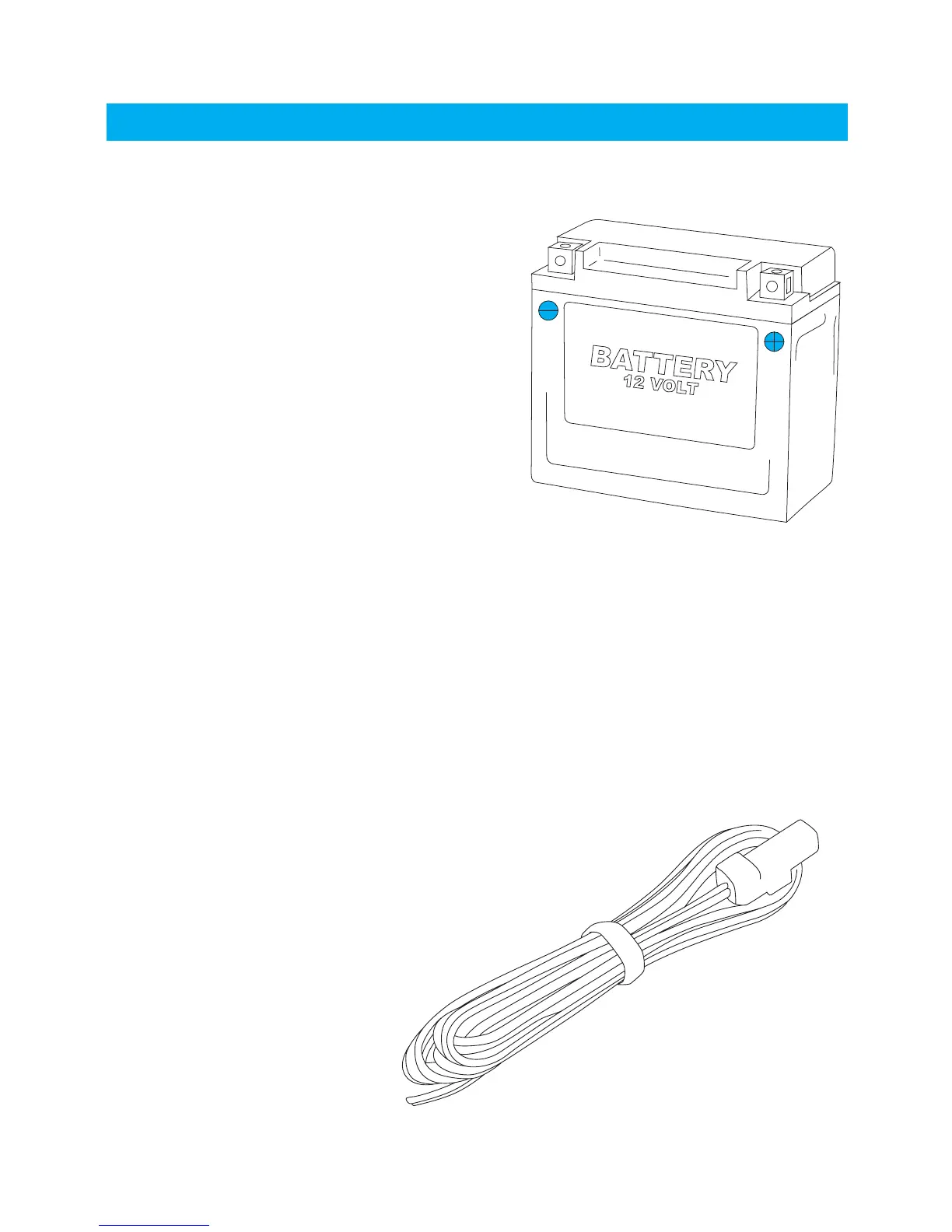

OPTION 1) BATTERY WIRED:
Connect the power cables
directly to the vehicle’s 12 volt
battery.
As an alternative to running wires all the way to the battery, it is
possible to tap into the electrical system. It is best to connect so
power is not interrupted by the key switch.
OPTION 2) SYSTEM TAP:
The “LO” indicator will activate if
voltage drops below 2.45V.
Striker draws too little power to
drain the vehicle battery.
Striker is polarity
independent.
•
•
•
Power Wire
To Next Page
