System Features
Voltage:
Description: The voltage function provides a display of voltage,
maximum voltage, and minimum voltage. Voltage data is
measured from the power input wire. It has a resolution of 0.1
volts and is accurate across the entire sensor range.
Voltage: Displayed on screens
1 and 2 in the lower left with a
lit V icon. Displays 0.0V if not
connected to vehicle power.
Displays HI if voltages exceeds
the maximum specification
(52.6V.)

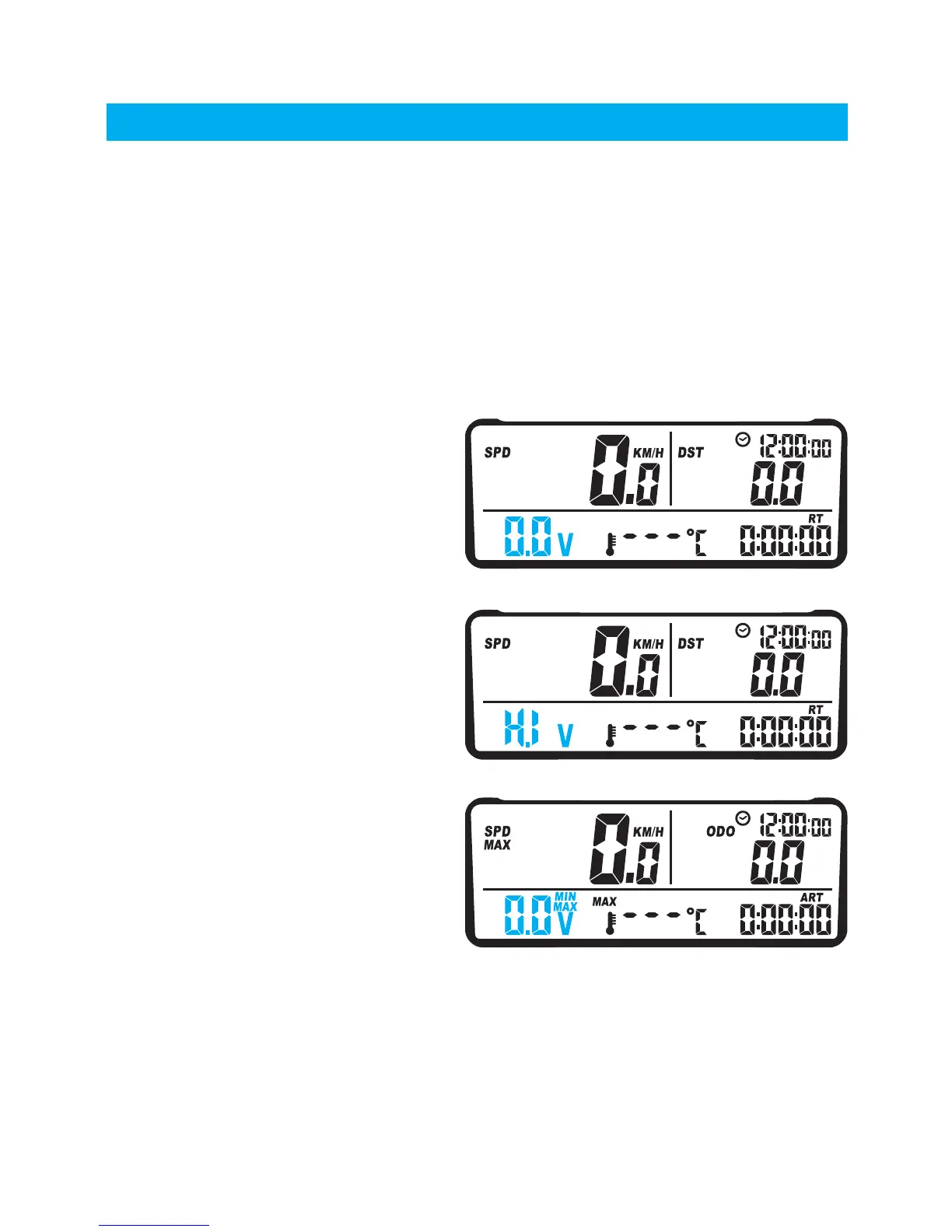

Voltage on Screen 1
Max/Min Voltage: Displayed
on screen 3 in the lower left.
Min/Max voltage alternates
being displayed every second,
accompanied by V and the
respective MIN/MAX icon.
Exceeding 52.6 Volts
Min/Max Voltage on Screen 3
Voltage LEDs: The LEDs
will flash if the voltage falls below the values defined by the user in
setup mode, alerting of potential electrical system problems. See
data setup mode for more information. (pg.36)
