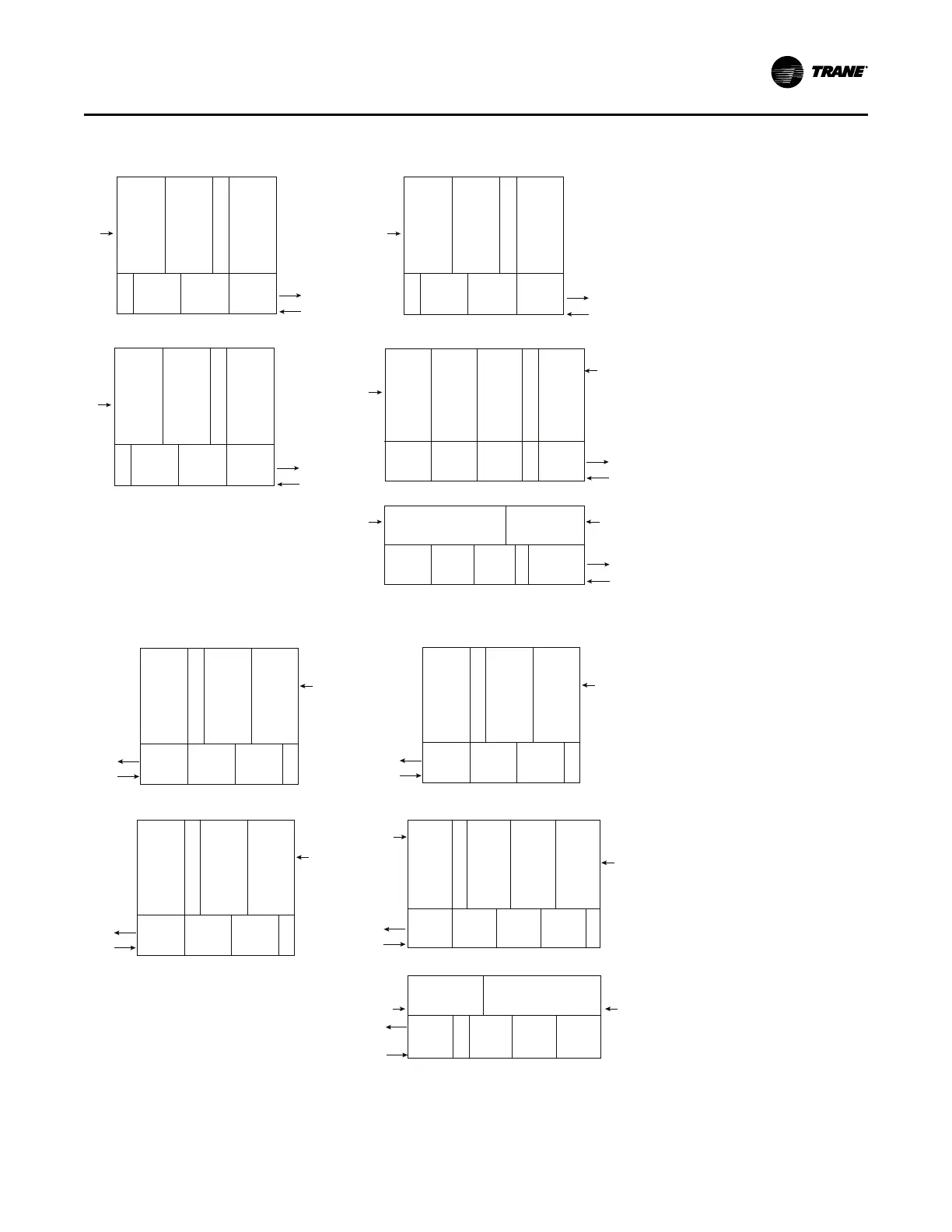

Figure 15. Typical layout of units (40 to 80 tons) left hand electrical and right hand water
40 TON 50 TON
70-80 TON Front View
60 TON
FAN 3,4
SPACERSPACER
FIXED
SPEED
C
FIXED
SPEED
D
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2 FAN 5
EVAP
DOOR
WATER IN
WATER OUT
STARTER
CONTROL
70 - 80 TON Top View
WATER OUT
WATER IN
FAN 5FAN 3,4FAN 1,2
SPACER
STARTER
CONTROL
EVAP
DOOR
30T Evap section50T Evap section
EVAP
DOOR
FAN 3
SPACER
SPACER
FIXED
SPEED
C
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2
STARTER
CONTROL
WATER IN
WATER OUT
FAN 3,4
SPACER
SPACER
FIXED
SPEED
C
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2
STARTER
CONTROL
WATER IN
WATER OUT
FAN 3
WATER IN
WATER OUT
SPACER
SPACER
EMPTY
C
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2
STARTER
CONTROL
Figure 16. Typical layout of units (40 to 80 tons) right hand electrical and left hand water
40 TON 50 TON
60 TON 70 - 80 TON Front View
FAN 3
WATER OUT
WATER IN
SPACER
SPACER
FIXED
SPEED
C
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2
STARTER
CONTROL
FAN 3,4
WATER OUT
WATER IN
SPACER
SPACER
FIXED
SPEED
C
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2
STARTER
CONTROL
FAN 3
WATER OUT
WATER IN
SPACER
SPACER
EMPTY
C
FIXED
SPEED
B
VARIABLE
SPEED
A
EVAP
DOOR
FAN 1,2
STARTER
CONTROL
WATER OUT
WATER IN
FAN 5 FAN 3,4 FAN 1,2
SPACER
SPACER
FIXED
SPEED
B
FIXED
SPEED
C
FIXED
SPEED
D
VARIABLE
SPEED
A
STARTER
CONTROL
EVAP
DOOR
EVAP
DOOR
70-80 TON Top View
FAN 3,4
SPACER
EVAP
DOOR
FAN 1,2
FAN 5
WATER IN
WATER OUT
STARTER
CONTROL
50T Evap section30T Evap section
EVAP
DOOR
