PKG-SVX027D-EN
33

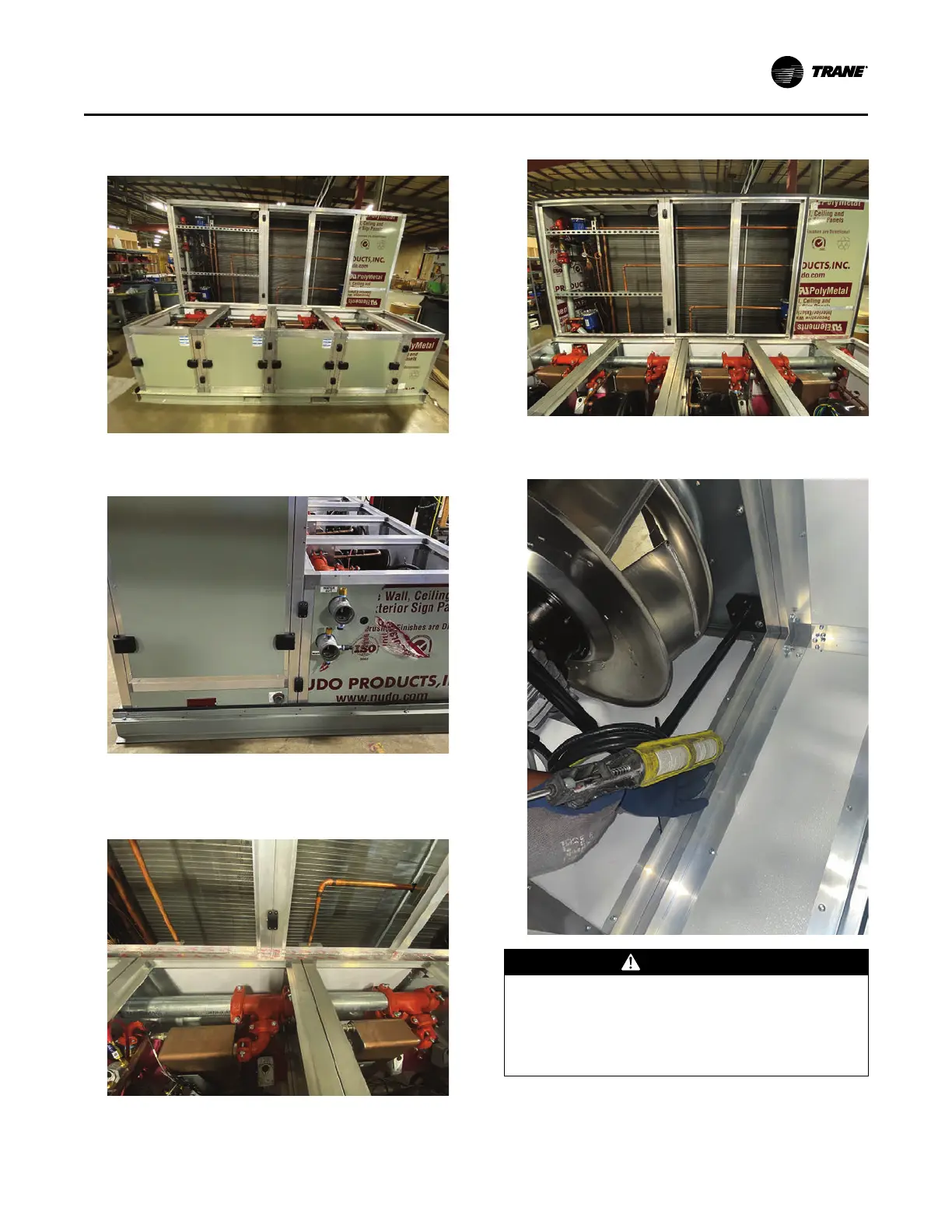

15. Push compressor D in and clamp down to compressor
C using intellaclamps.
16. Clamp compressor D side to evaporator using
intellaclamps.
Sealing of Unit (To Prevent Air Leaks)
1. Apply aluminum tape across the gap on top of the
compressors.
2. Apply gasket around evaporator opening.
3. Apply caulk all around all fan cassette seem/gaps for
good seal.
WARNING
High Pressure Water!
Failure to follow instructions below could result in
death or serious injury, and equipment damage.
Provide relief valve on system water piping to prevent
instantaneous release of high pressure water.
Installation - Mechanical
