Dimensional Data
(Standard and High Efficiency)

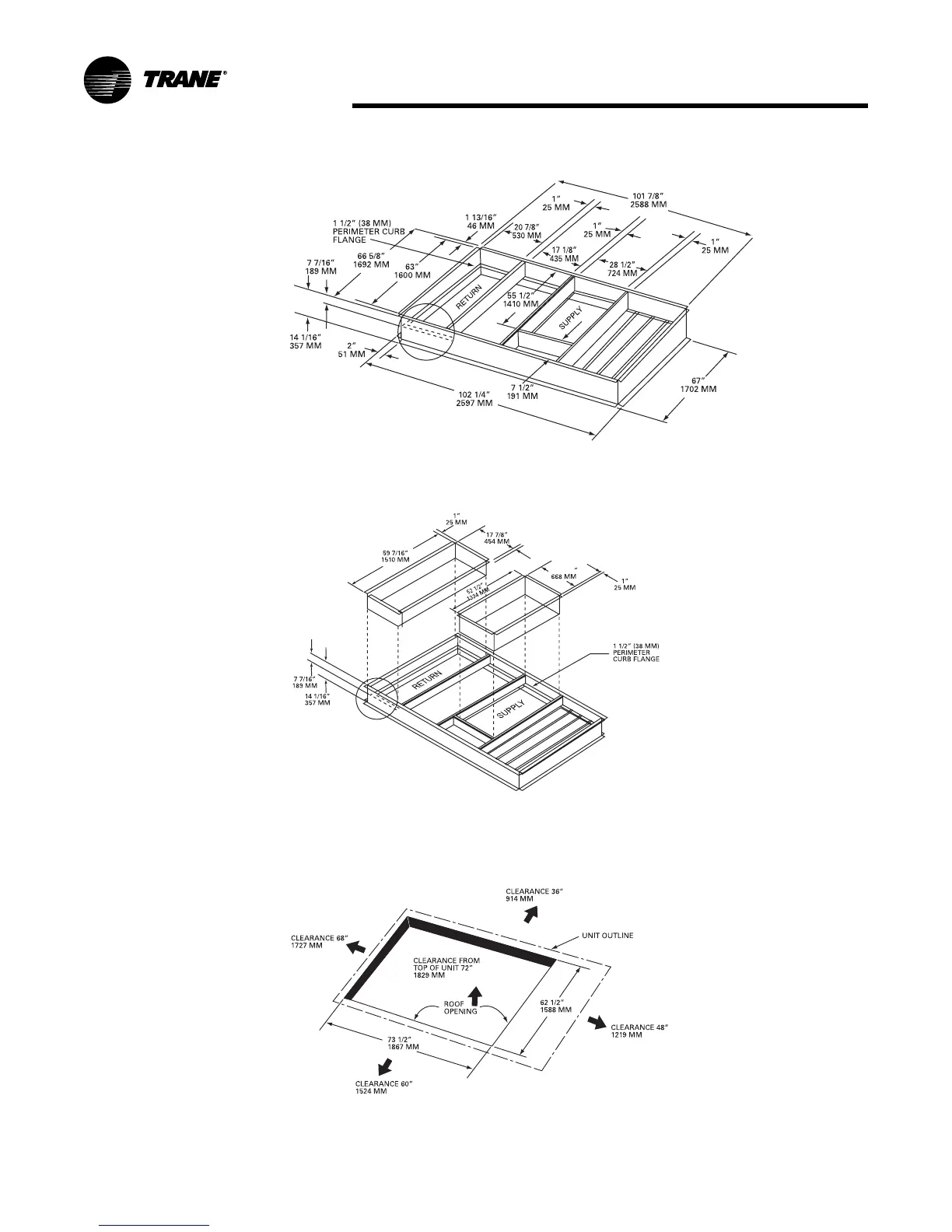

Figure 9. Cooling with Optional Electric Heat and Gas/Electric Models 12½-17½ Tons
Standard Efficiency - 12½ Tons High Efficiency - Roof Curb
* All dimensions are in inches/millimeters.
Figure 10. Cooling with Optional Electric Heat and Gas/Electric Models 12½-17½ Tons
Standard Efficiency; 12½ High Efficiency - Downflow Duct Connections - Field Fabricated
* Duct flanges mount 7-7/16" (189mm) down inside the curb on the 1.5" (38mm)curb flanges.
Roofcurb is intended for downflow use only.
* All dimensions are in inches/millimeters.
Figure 11. Cooling with Optional Electric Heat and Gas/Electric Models -
12½-17½ Tons Standard Efficiency; 12½ Tons High Efficiency - Horizontal
Unit Supply/Return and Unit Clearance
* All dimensions are in inches/millimeters.
