RT-PRC024-EN 95
Dimensional Data
(Standard and High Efficiency)

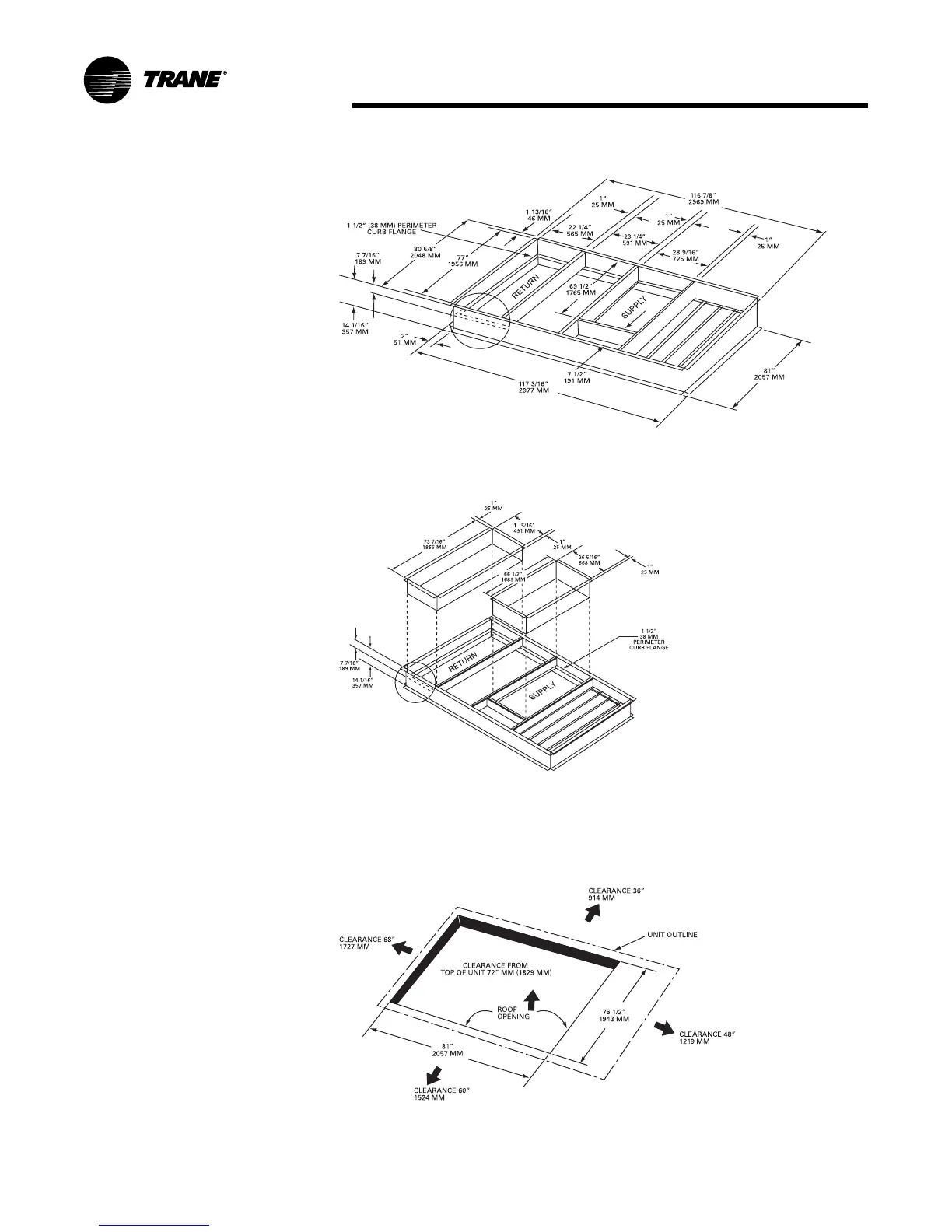

Figure 14. Cooling with Optional Electric Heat and Gas/Electric Models -
20-25 Tons Standard Efficiency; 15-25 Tons High Efficiency - Roof Curb
* All dimensions are in inches/millimeters.
Figure 15. Cooling with Optional Electric Heat and Gas/Electric Models -
20-25 Tons Standard Efficiency; 15-25 Tons High Efficiency - Downflow Duct
Connections - Field Fabricated
* Duct flanges mount 7-7/16" down inside the curb on the 1-1½ curb flanges.
Roofcurb is intended for downflow use only.
* All dimensions are in inches/millimeters.
Figure 16. Cooling with Optional Electric Heat and Gas/Electric Models -
20-25 Tons Standard Efficiency; 15-25 Tons High Efficiency - Downflow Unit
Clearance
* All dimensions are in inches/millimeters.
9
