Trane Voyager TC* User Manual

RT-PRC024-EN 97
Dimensional Data
(12½-25 Tons)
Table 80.
Unit Model # A B C D E
TCD150, 151, 180, 210 42 3/8 48 3/8 31 N/A N/A
TCD181, 211-301 29 1/2 56 38 1/2 18 1/2 N/A
All dimensions are in inches.

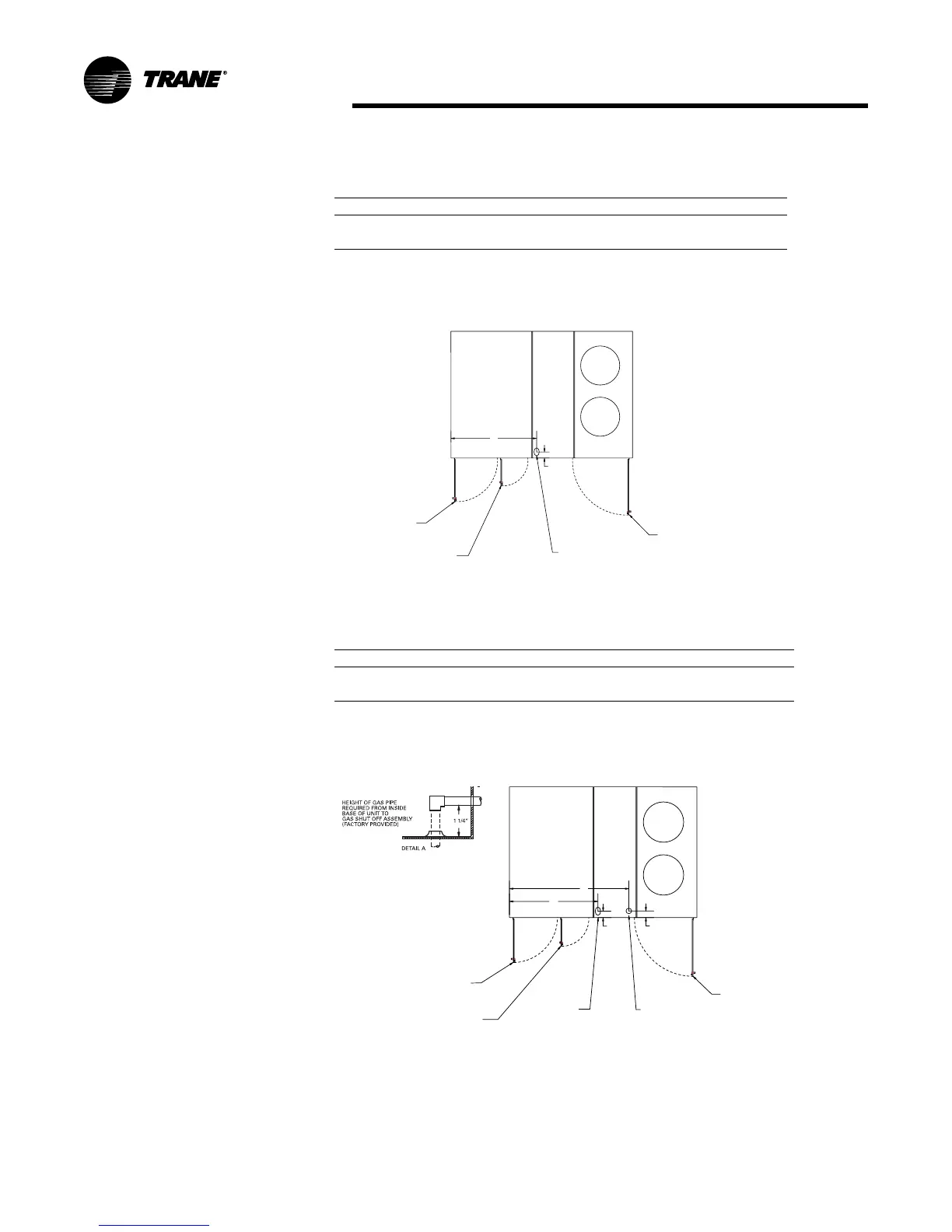

Figure 17. Cooling Unit - Swing Diameter & Through the Base Electrical
Table 81.
Unit Model # A B C D E
YCD150, 151, 180, 210 42 3/8 66 3/8 48 3/8 N/A N/A
YCD181, 211-301 29 1/2 77 7/8 56 18 1/2 N/A
All dimensions are in inches.
Figure 18. Gas/Electric Unit - Swing Diameter & Through the Base Electrical;
Height of Gas Pipe (Second Drawing)
SWING RADIUS (C)
OD SECTION
ACCESS PANEL
THROUGH THE
BASE ELECTRICAL
SWING RADIUS (A)
ID SECTION
ACCESS PANEL
TOP VIEW SHOWING THROUGH THE BASE
ELECTRICAL UTILITY LOCATIONS AND ACCESS PANEL SWING CLEARANCES.
SWING RADIUS (D)
ID FAN SECTION
ACCESS PANEL
B
6 7/8"
SWING RADIUS 31" OD SECTION
ACCESS PANEL
THROUGH
THE BASE
ELECTRICAL
SWING RADIUS
(A ) ID SECTION
ACCESS PANEL
TOP
VIEW
SHOWING
THROUGH
THE
BASE
ELECTRICAL UTILITY LOCATIONS AND ACCESS PANEL SWING CLEARANCES.
SWING RADIUS (D) ID FAN
SECTION ACCESS PANEL
THROUGH THE
BASE GAS
SEE DETAIL A
6 7/8"
C
B
7 3/8"
