RT-PRC024-EN 99
Table 83. Maximum Unit & Corner Weights (Lbs) and Center of Gravity Dimensions (in.) Cooling with Optional Electric Heat Units only
Unit Weights (Lbs)
(i)
,
(ii)
(i)
Weights are approximate. Horizontal and downflow unit and corner weights may vary slightly.
(ii)
Weights do not include additional factory or field installed options/accessories. For option/accessory additional weights, reference Table 85, Table 86,
Table 87 to be added to unit weights.
Corner Weights
(iii)
(iii)
Corner weights are given for information only. 12½-25 ton models must be supported continuously by a curb or equivalent frame support.
* Indicates both downflow and horizontal units.

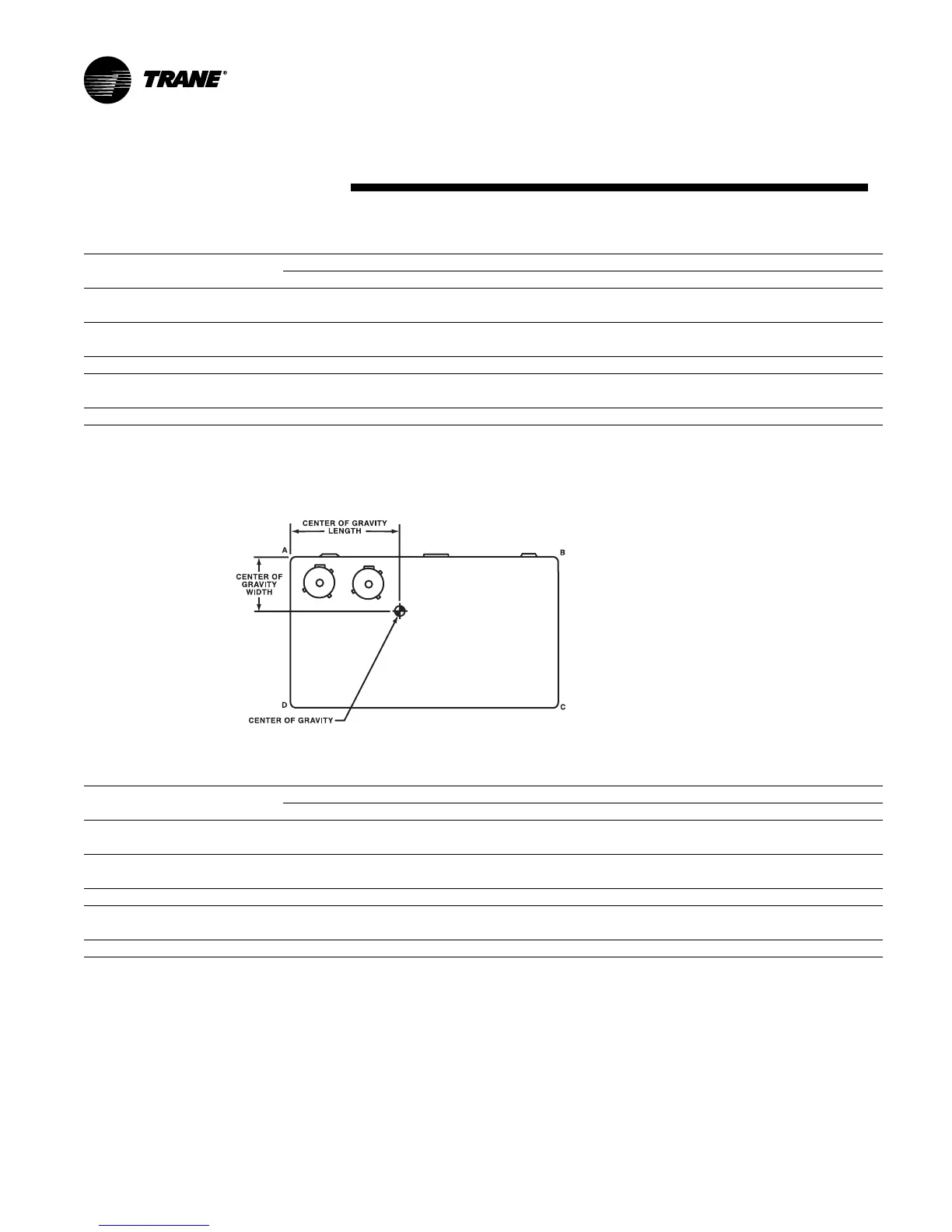

Center of Gravity (in.)
Tons Model No. Shipping Net A B C D Length Width
12½ TC*150D/TC*151C 1687/1820 1319/1452 446/485 339/360 230/259 303/348 46/45 29/30
TCD151C (Reheat Units) 1864 1496 496 371 270 359 45 30
15 TC*180B/TC*181C 1866/2361 1498/1902 547/643 358/477 234/333 359/447 42/52 28/35
TCD181C (Reheat Units) 2425 1966 659 493 349 463 52 35
17½ TC*210C/TC*211C 2022/2380 1654/1921 565/643 425/495 285/341 378/442 46/53 29/35
20 TC*240B/TC*241C 2372/2490 1913/2031 679/697 482/528 312/348 440/458 51/53 34/34
TCD241C (Reheat Units) 2510 2051 702 533 353 463 53 34
25 TC*300B/ TC*301C 2365/2475 1906/2016 661/695 507/524 320/343 418/454 53/53 33/34
Table 84. Maximum Unit & Corner Weights (Lbs) and Center of Gravity Dimensions (in.) Gas/Electric Heat Units only
Unit Weights (Lbs)
(i)
,
(ii)
(i)
Weights are approximate. Horizontal and downflow unit and corner weights may vary slightly.
(ii)
Weights do not include additional factory or field installed options/accessories. For option/accessory additional weights, reference Table 85, Table 86,
Table 87 to be added to unit weights.
Corner Weights
(iii)
(iii)
Corner weights are given for information only. 12½-25 ton models must be supported continuously by a curb or equivalent frame support.
* Indicates both downflow and horizontal units.
Center of Gravity (in.)
Tons Model No. Shipping Net A B C D Length Width
12½ YC*150D/YC*151C 1826/1915 1458/1547 495/523 373/383 254/271 336/370 46/45 29/30
YCD151C (Reheat Units) 1959 1591 534 394 282 381 45 30
15 YC*180B/YC*181C 2033/2464 1665/2005 600/686 395/504 266/345 404/470 43/52 29/35
YCD181C (Reheat Units) 2528 2069 697 515 356 481 52 35
17½ YC*210C/YC*211C 2189/2547 1821/2088 618/701 463/538 317/369 424/480 46/53 29/35
20 YC*240B/YC*241C 2547/2645 2088/2186 738/751 526/568 343/373 481/494 51/53 34/34
YCD241C (Reheat Units) 2665 2206 756 573 378 499 53 34
25 YC*300B/YC*301C 2541/2650 2082/2191 721/755 552/569 351/373 458/495 53/53 33/34
Weights
