transnorm TS 1300 - Main Dimensions

Description
Main dimensions
28
Operating instructions: Indexing conveyor/short track conveyor TS 1300
Version 3.6ENG, 28.02.2019
Main dimensions
The dimensions of your machine can be found in the service specifications
included with the order confirmation. Application-specific dimensions are
given as variables.

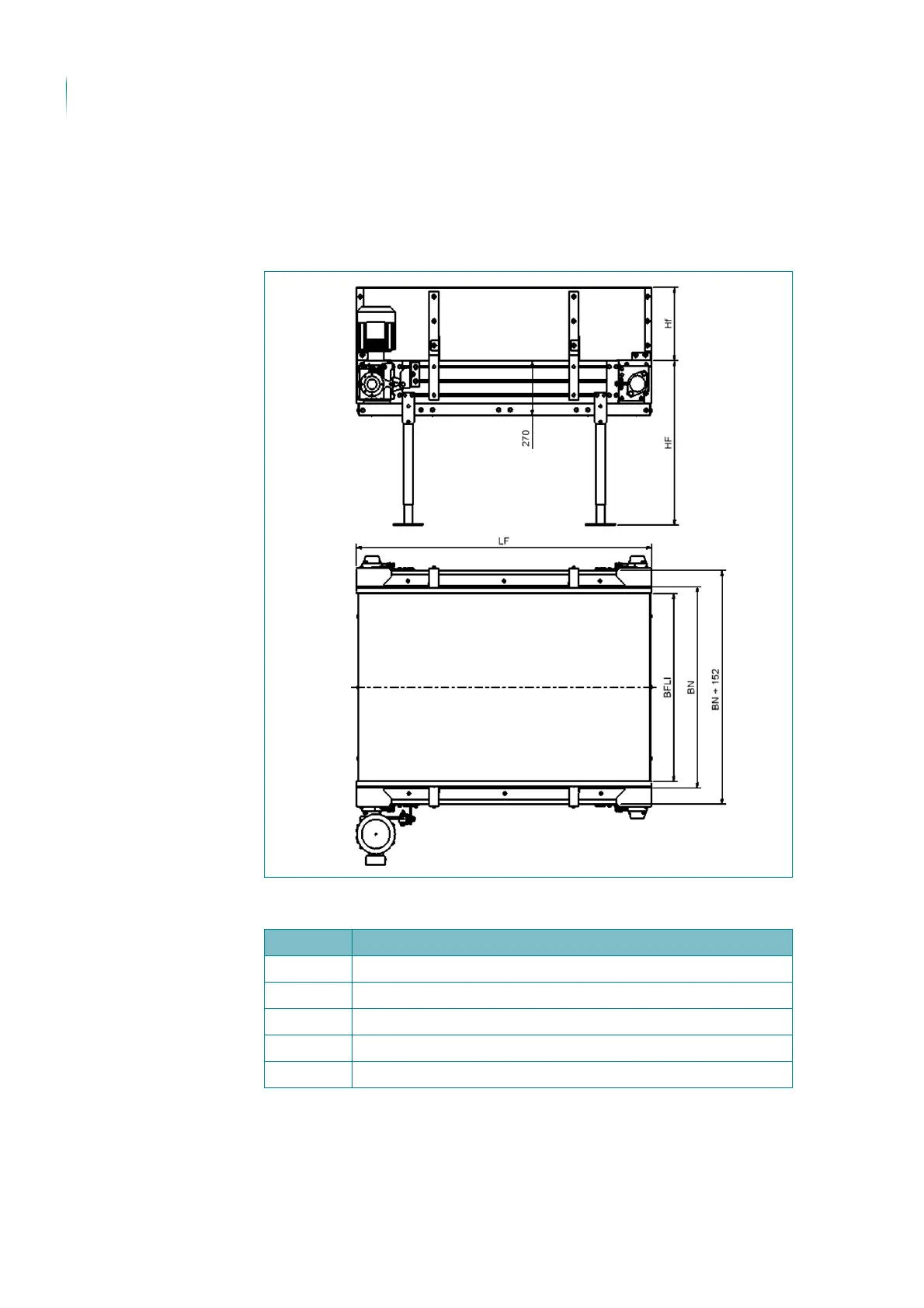

Main dimensions TS 1300
Variables used
Variable Description
LF Nominal length
BN Nominal width
BFLI Side guide clear width
HF Conveying height
HF Height of side guide
