Maintenance and repair
Replacing the drive pulley/tail pulley
80
Operating instructions: Indexing conveyor/short track conveyor TS 1300
Version 3.6ENG, 28.02.2019
Replacing the drive pulley/tail pulley
Requirements:
Machine has been taken out of operation.
Machine has been secured to prevent it from being switched on inadvert-
ently.
Side guide has been disassembled.
Belt has been loosened.
Only for drive pulley: The gear motor has been disassembled.
Disassemble the
covers
Complete the following steps:

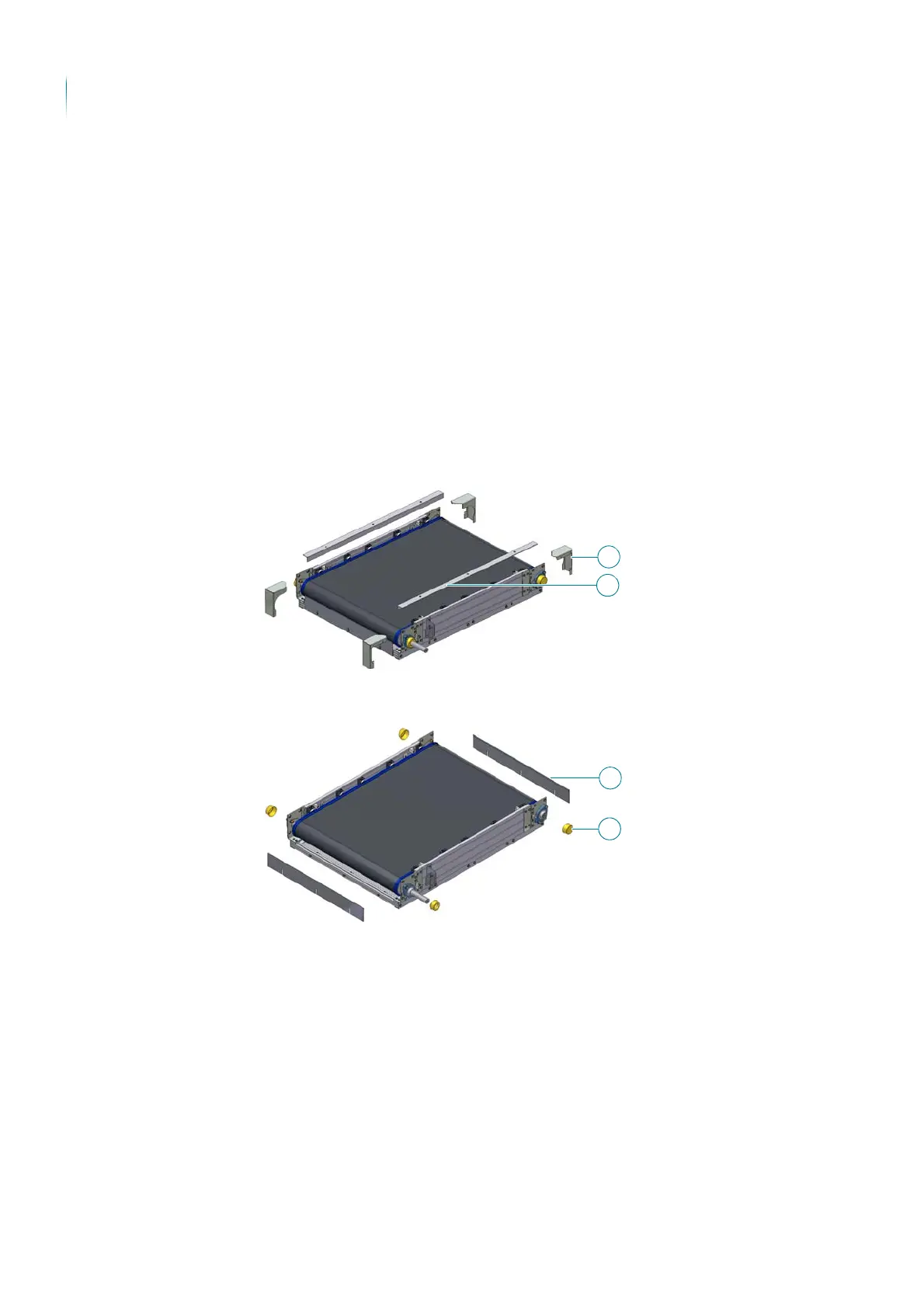

1. Remove the bearing covers (1).
2. Remove the angled finger guard (2).
3. Remove the protective caps (3) and disassemble the finger guard plates
(4).
The covers have been disassembled.
