transnorm TS 1300 - Replacing the Gear Motor

Maintenance and repair
Replacing the gear motor
75
Replacing the gear motor
Requirements:
 Machine has been taken out of operation.
 Machine has been secured to prevent it from being switched on inadvert-
ently.
 Motor has cooled down.
 Disassemble the
gear motor
WARNING
Increased risk of accident!
Motor may tilt and crush parts of the body.
 Secure the motor to prevent it from falling.
 Use hoists to raise and lower the motor.

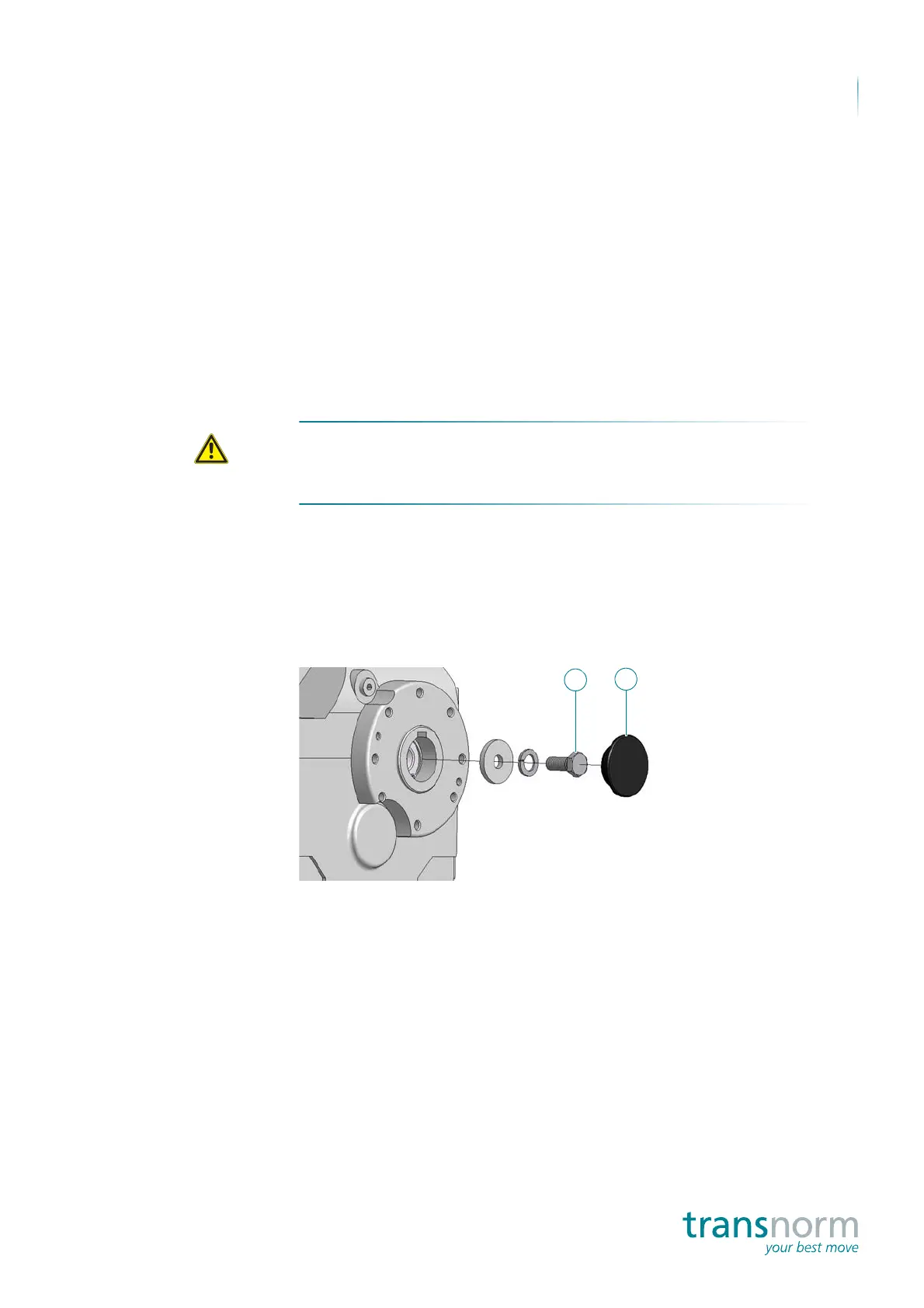

Complete the following steps:
1. Disconnect electrical cables to motor.
2. Remove the cap (1).
3. Remove the joining elements (2).
1
2
