transnorm TS 1300 - Parts of the Machine

Description
Parts of the machine
33
Parts of the machine

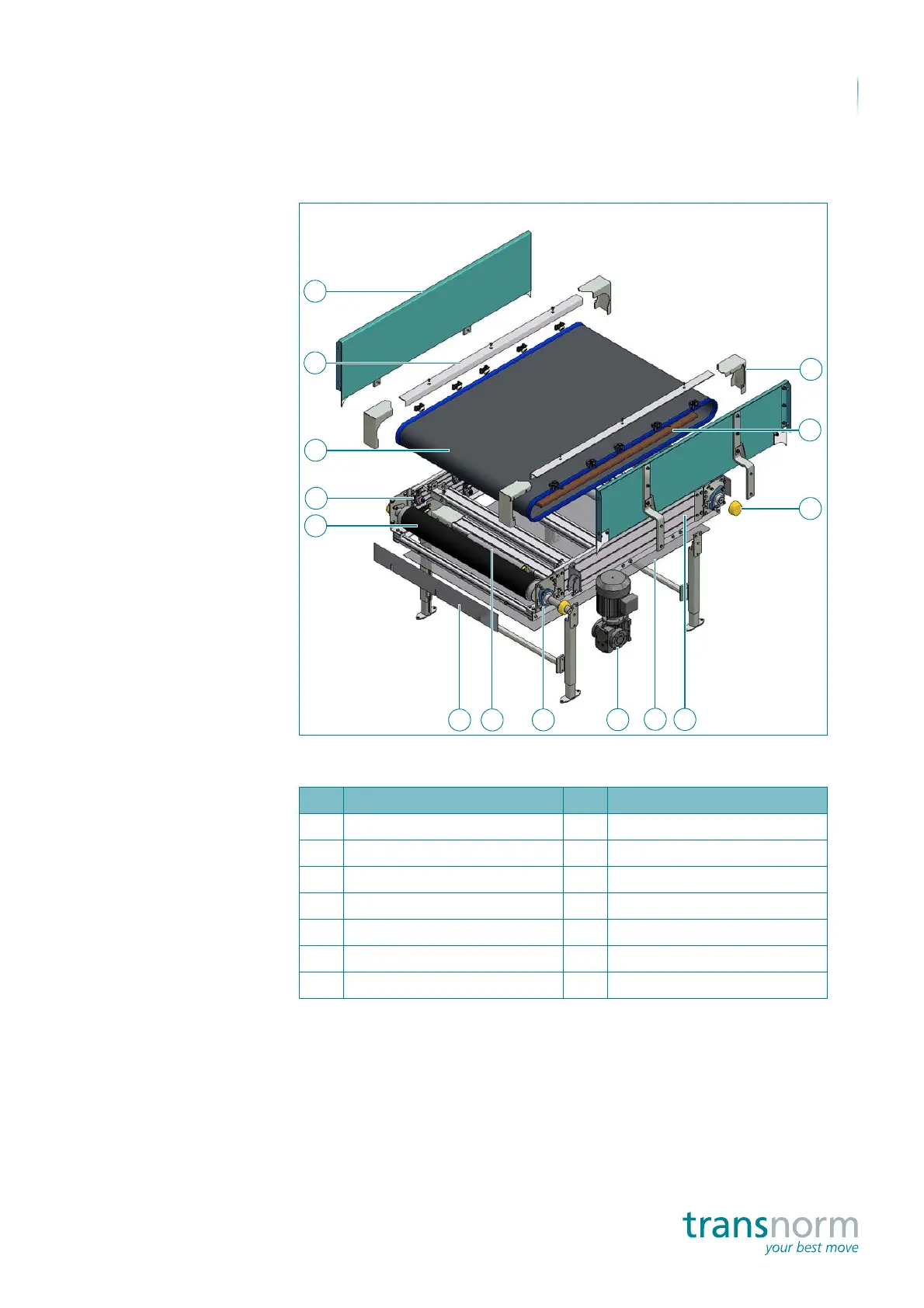

TS 1300 functional units
Key to illustration
No. Name No. Name
1 Bearing cover 8 Support roller
2 Bed 9 Finger guard plate
3 Protective cap 10 Drive pulley
4 Basic frame 11 Belt edge holder
5 Bottom conveyor track cover 12 Conveyor belt
6 Gear motor 13 Angled finger guard
7 Flange bearing 14 Side guide plate
6
9
5
2
13
12
10
3
11
7
14
1
4
8
