Maintenance and repair
Replacing the gear motor
76
Operating instructions: Indexing conveyor/short track conveyor TS 1300
Version 3.6ENG, 28.02.2019

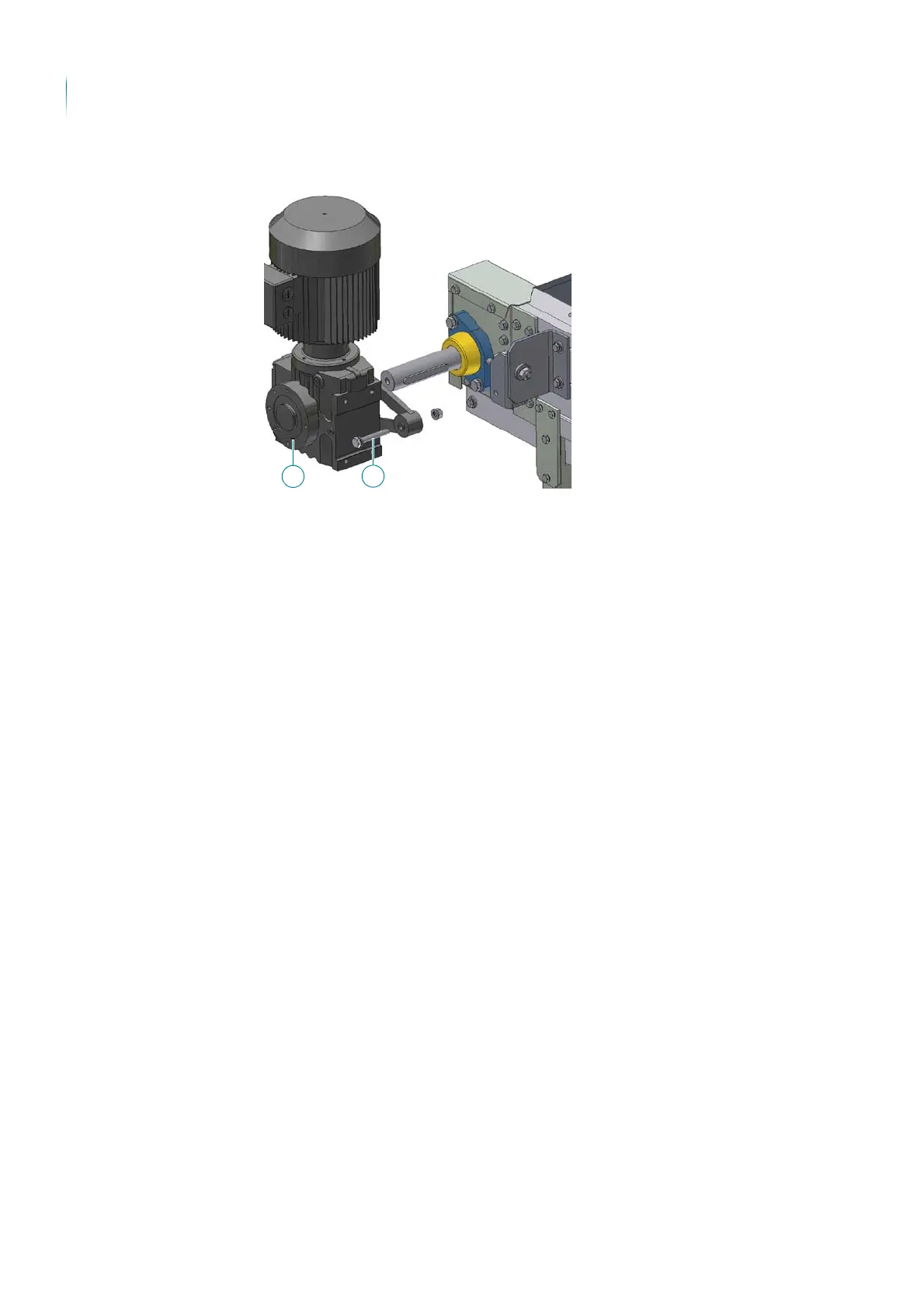

4. Remove the joining elements (3).
5. Pull the gear motor (4) off the shaft.
6. Place the gear motor on a suitable base.
The gear motor has been removed.
Assemble the gear
motor
Complete the following steps:
1. Apply assembly paste to the pulley journal.
2. Assembly must be carried out in the reverse order.
The gear motor has been fitted.
The gear motor has been replaced.
