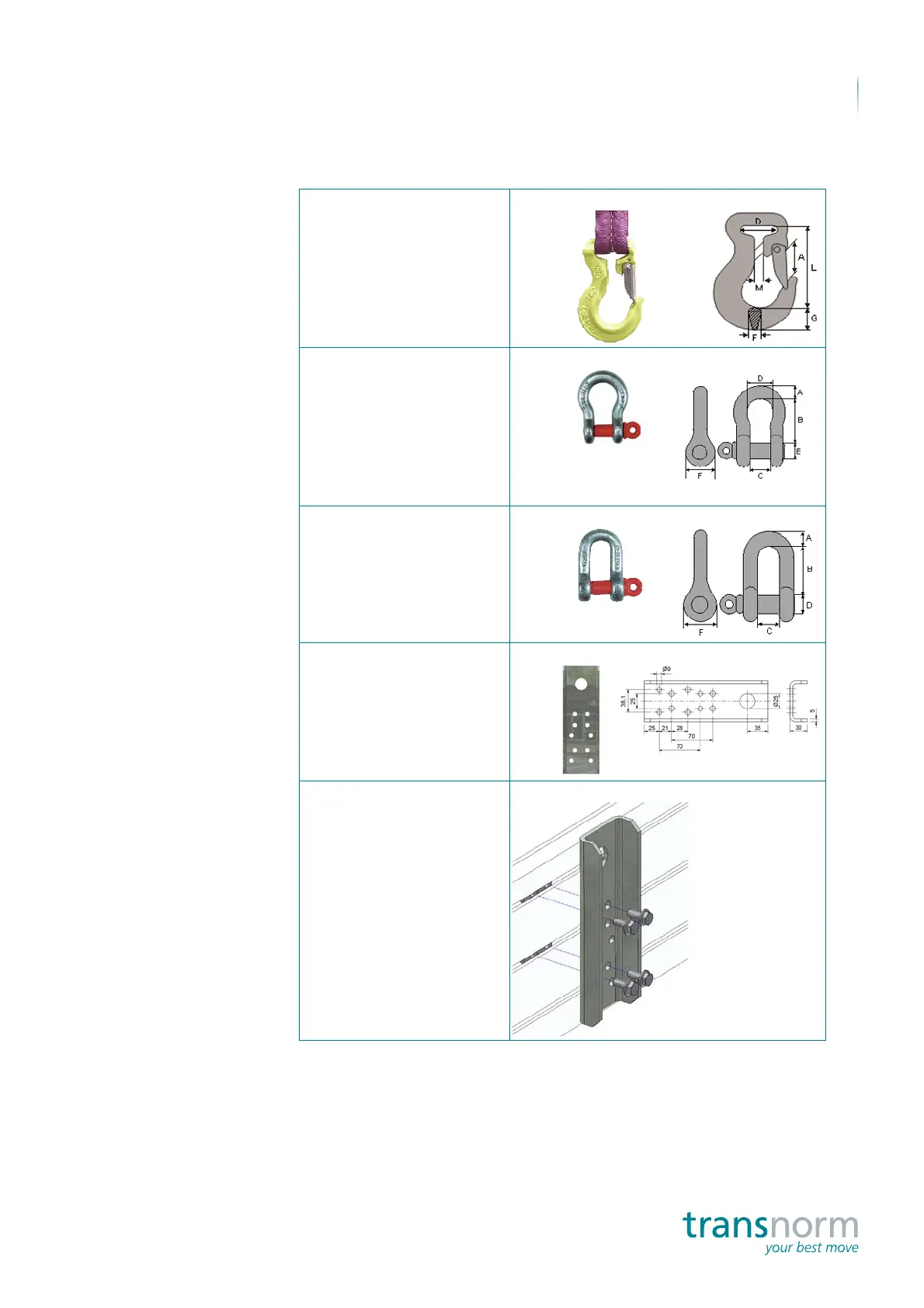

Transportation and installation
Internal transportation
39
Round sling hook,
safe working load 1000 kg
L = 84 mm
A = 24 mm
D = 35 mm
F = 17 mm
G = 20 mm
M = 8 mm
Anchor shackle,
safe working load 3250 kg
A = 16 mm
B = 60 mm
C = 27 mm
D = 43 mm
E = 20 mm
F = 42 mm
Chain shackle,
safe working load 3250 kg
A = 16 mm
B = 51 mm
C = 27 mm
D = 20 mm
F = 42 mm
Transport plate E2009698
Exclusively intended for internal
transportation of TS conveyors
Installation of support E2009698
on conveyor bed with fixing set
consisting of:
4 pcs N1001434
Slot nut M8
4 pcs K1009663
Screw M8x18
Exclusively intended for internal
transportation of TS conveyors
Required auxiliary equipment
