transnorm TS 1300 - Page 70

Maintenance and repair
Replacing the conveyor belt
70
Operating instructions: Indexing conveyor/short track conveyor TS 1300
Version 3.6ENG, 28.02.2019

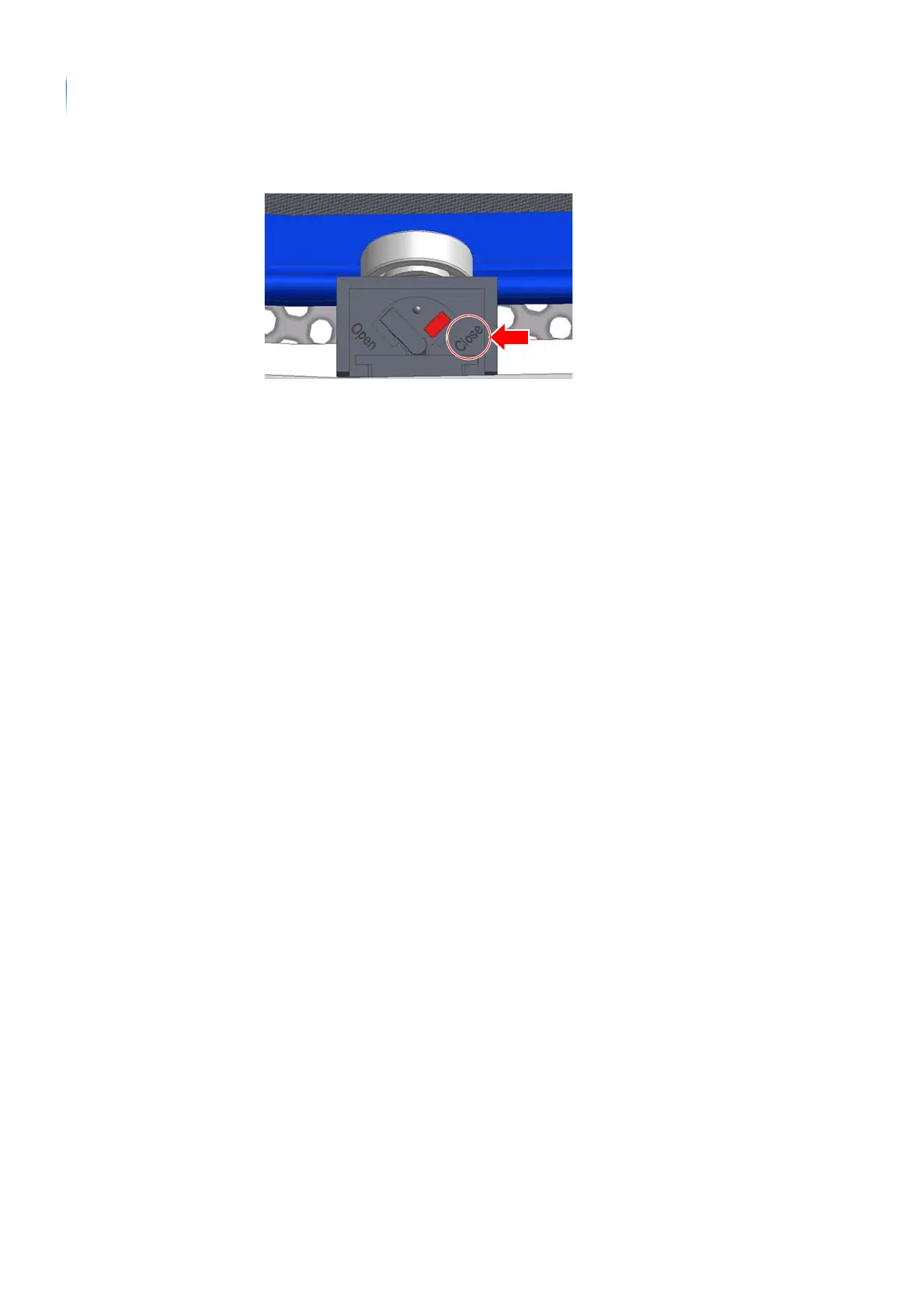

3. Turn the locking lever to "Close".
 The upper belt edge holder parts have been assembled - upper run.
 Assemble the covers
Complete the following steps:
 Assembly must be carried out in the reverse order.
 The covers have been assembled.
 Assemble the gear
motor
Complete the following steps:
 Assembly must be carried out in the reverse order.
 The gear motor has been fitted.
 Tighten/adjust the
belt
Complete the following steps:
 Proceed as described in "Tightening/adjusting the conveyor belt".
 The belt has been tightened/adjusted.
 Assemble the side
guide
Complete the following steps:
 Assembly must be carried out in the reverse order.
 The side guide has been fitted.

The conveyor belt has been replaced.
