30
Asymmetric VLAN function.

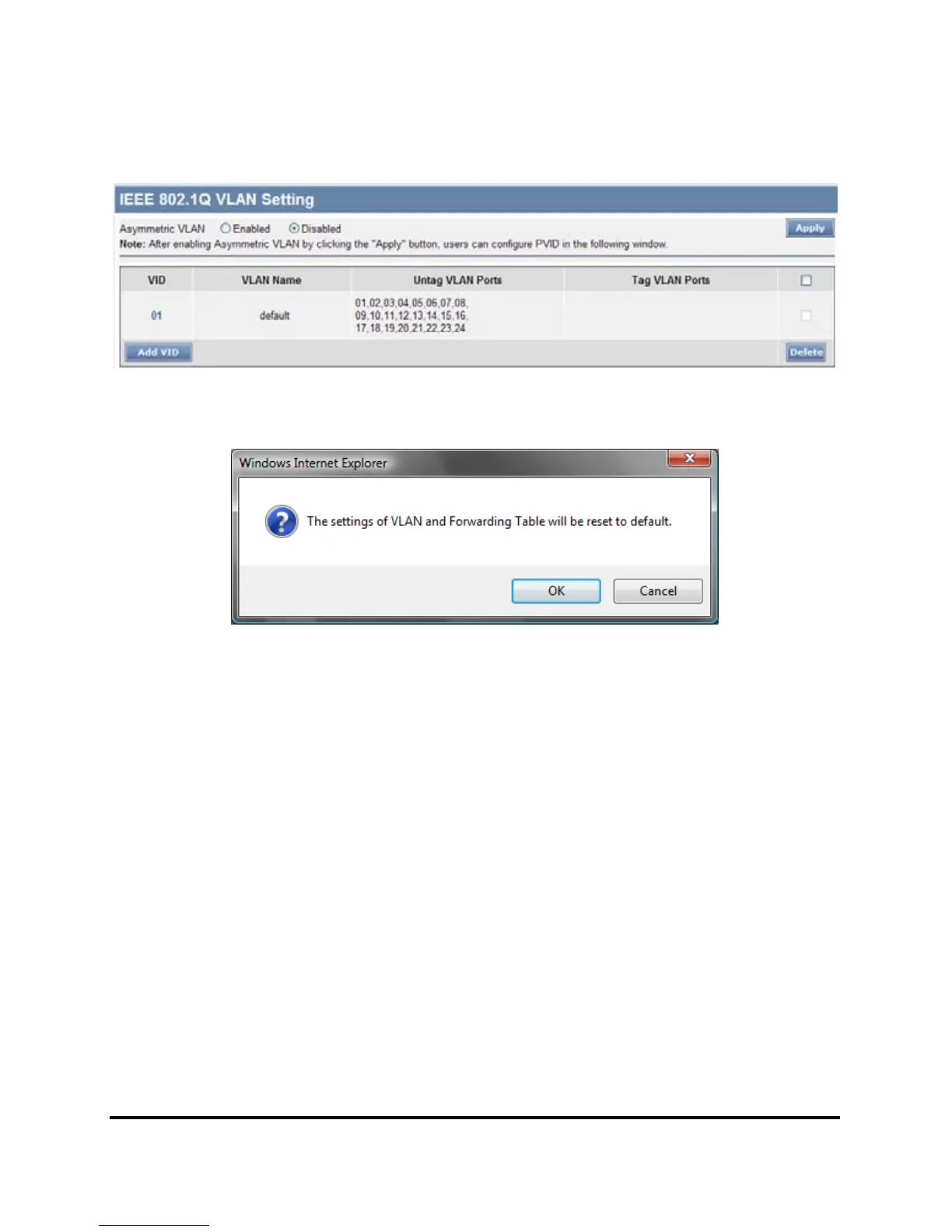

Figure 18. Enabled Asymmetric VLAN function
Figure 19. Change setting warning message
Note: The Settings of VLAN, IGMP Snooping and Forwarding Table will be reset to
default.
Untag Asymmetric VLAN Setting:
The IEEE 802.1Q VLAN Configuration page provides powerful VID
management functions. The original default VLAN setting has the
VID as 01, named “default”, and contains all ports as “Untagged”.
