35

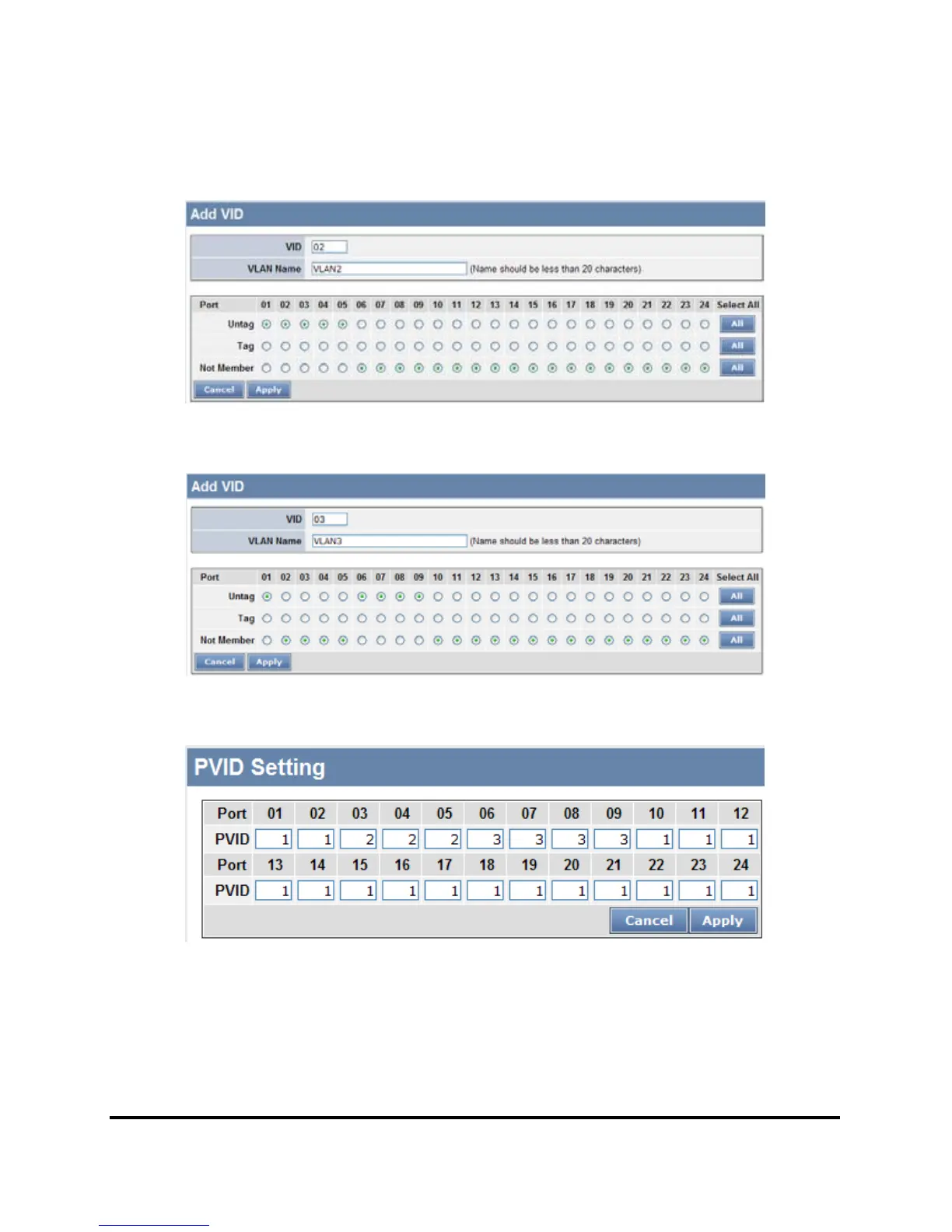

Step3: Create VID 02 and set port 1~5 to “Untag” ports and port 6~24 to “Not
Member” ports, then apply setting.
Figure 31.
Step4: Create VID03 and set port 1 and 6~9 to “Untag” ports, then apply setting.
Figure 32.
Step5: Set PVID Port 3~9 PVID value to below list:
Figure 33.
