Triumph Trophy - Coolant Level Inspection

128
Maintenance and Adjustment
Note:
• HD4X Hybrid OAT coolant, as
supplied by Triumph, is pre-mixed
and does not need to be diluted
prior to filling or topping off the
cooling system.
Coolant Level Inspection
Note:
• The coolant level should be checked
when the engine is cold (at room or
ambient temperature).

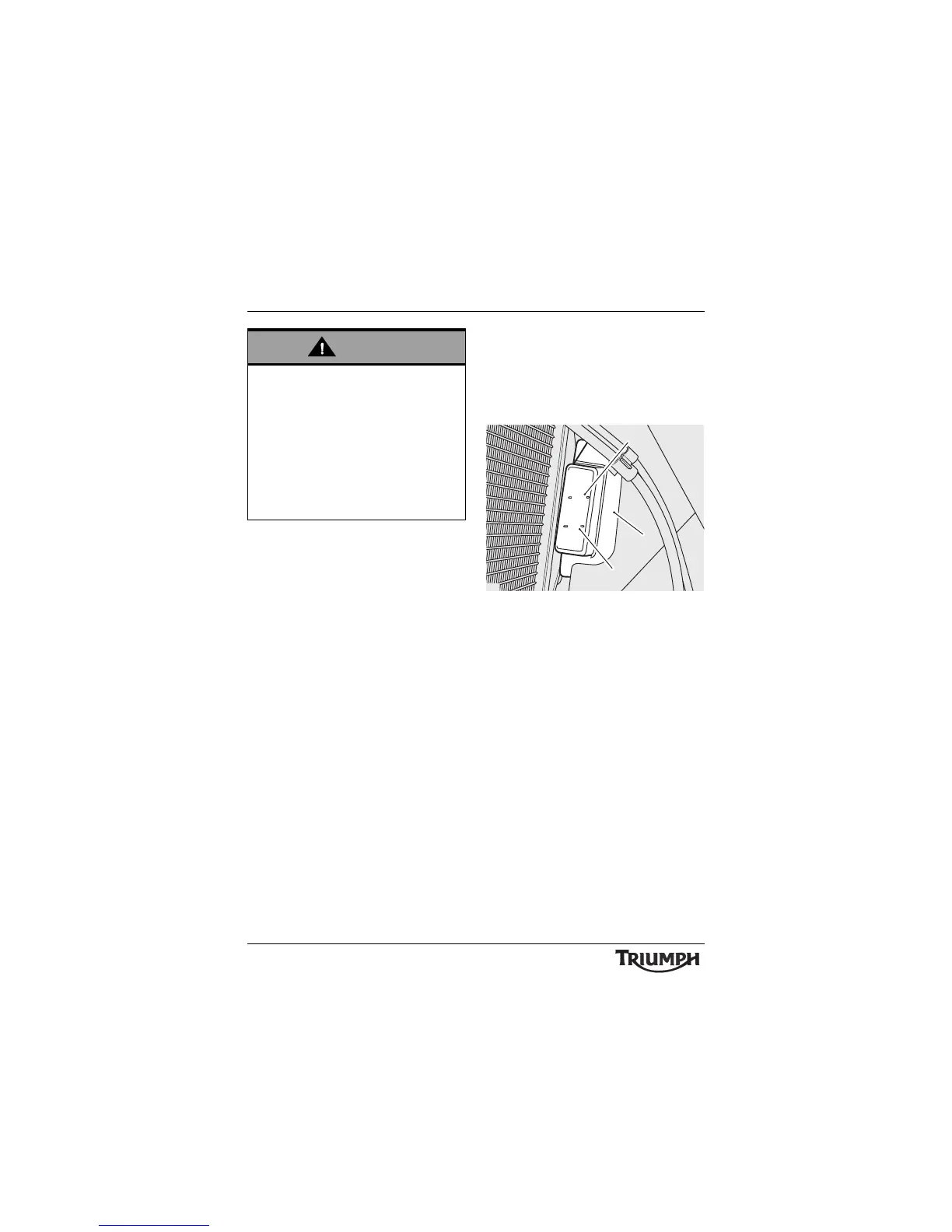

1. Expansion tank
2. MAX mark
3. MIN mark
Position the motorcycle on level ground and
in an upright position. Check the coolant
level in the expansion tank by looking up
through the center opening of the front
fairing.
Check the coolant level in the expansion
tank. The coolant level must be between the
MAX and MIN marks. If the coolant is below
the minimum level, the coolant level must be
adjusted.
Warning
HD4X Hybrid OAT coolant contains
corrosion inhibitors and anti-freeze suitable
for aluminum engines and radiators.
Always use the coolant in accordance with
the instructions of the manufacturer.
Coolant that contains anti-freeze and
corrosion inhibitors contains toxic
chemicals that are harmful to the human
body. Never swallow anti-freeze or any of
the motorcycle coolant.
MIN
MAX
