Maintenance and Adjustment
Front Suspension Adjustment
(Trophy models only)
Note:
• Suspension adjustments for
Trophy SE models fitted with
Triumph Electronic Suspension (TES)
are described on page 58.
The front forks are adjustable for rebound
damping.
Front Suspension Rebound Damping
Adjustment

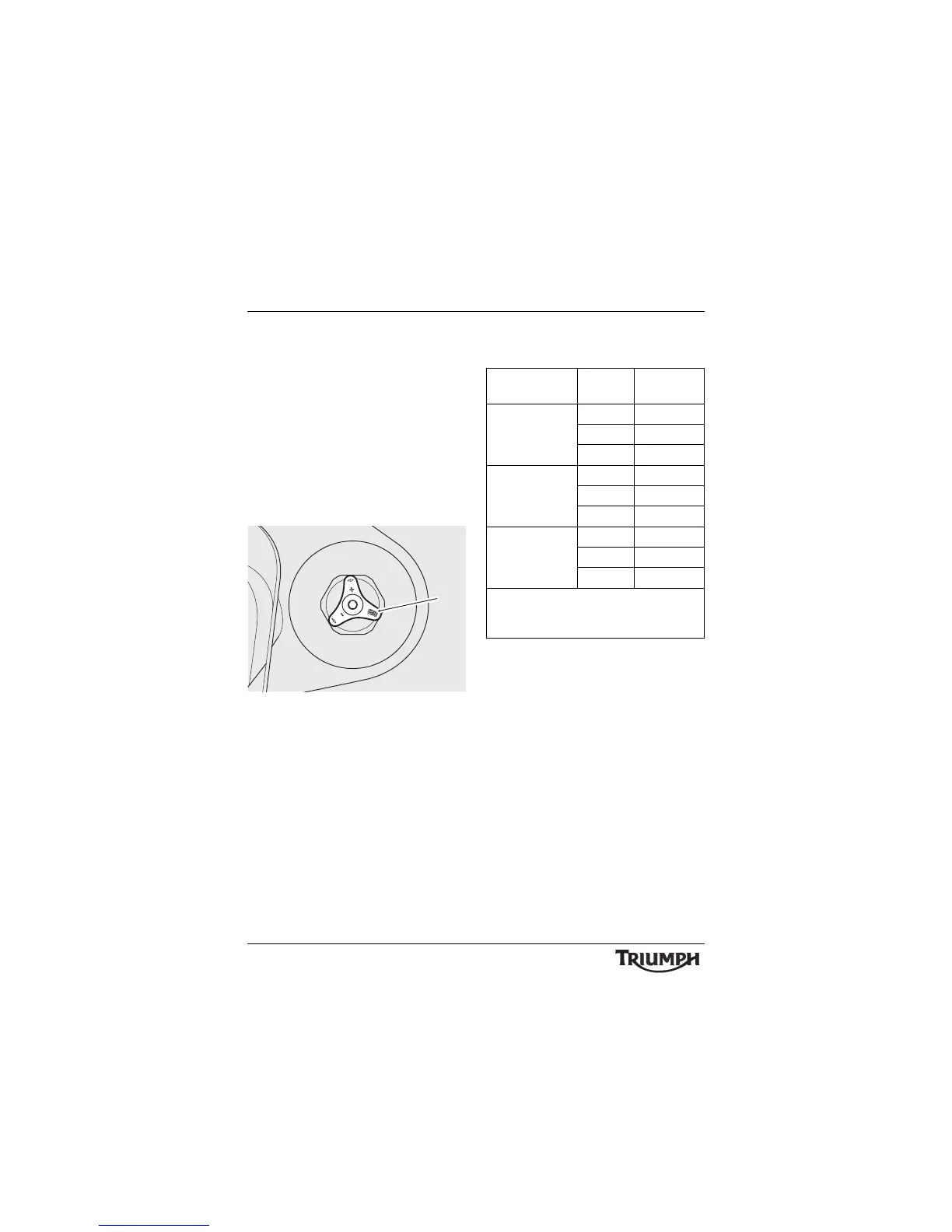

1. Rebound damping adjuster
The rebound damping adjusters are located
at the top of each fork.
To change the rebound damping, rotate the
adjuster clockwise to increase damping, or
counter-clockwise to decrease damping.
Always count the number of
counter-clockwise turns from the fully
clockwise position and set both forks to the
same setting.
Note:
• The motorcycle is delivered from the
factory with the rebound damping
set at 9 counter-clockwise turns
from the fully clockwise position.
Front Suspension Setting Chart
(Trophy models only)
The standard suspension settings provide a
comfortable ride and good handling
characteristics for general, solo riding. The
charts above show suggested settings for the
front suspension.
chsh
1
Loading Mode Rebound
Damping¹
Solo Riding Comfort 15
Standard 9
Sport 4
Solo and
Luggage
Comfort 15
Standard 9
Sport 4
Rider, Passenger
and Luggage
Comfort 15
Standard 9
Sport 4
¹ Number of adjuster turns
counter-clockwise from the fully
clockwise position
