Maintenance and Adjustment

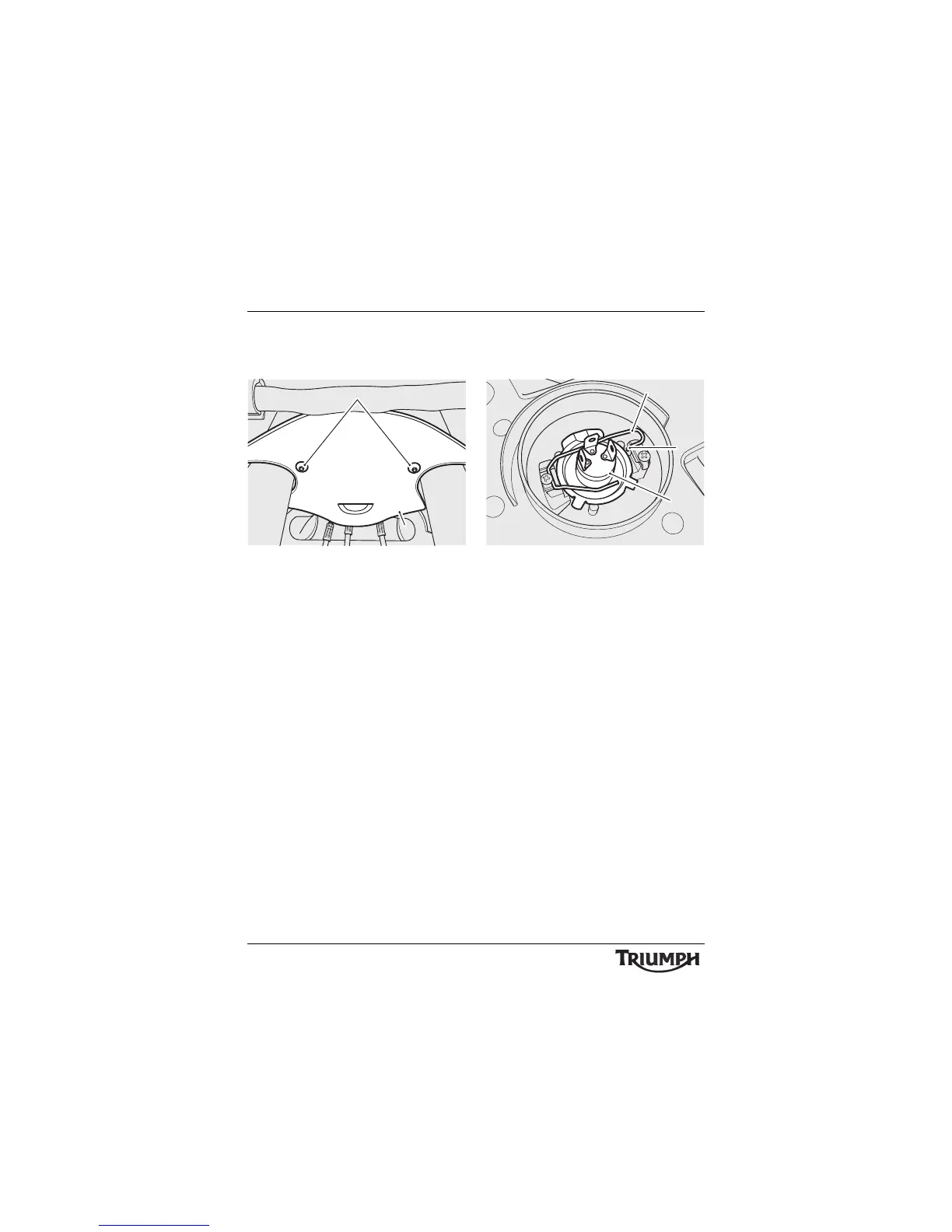

Remove the two fasteners and remove the
lower yoke cover to allow access to the bulbs
from underneath.
1. Lower yoke cover
2. Fasteners
Remove the bulb cover from the bulb to be
replaced.
Disconnect the multi-plug from the bulb.
Detach the bulb retainer from the hook on
the headlight assembly and rotate it away
from the bulb as shown.
1. Bulb retainer (right hand shown)
2. Bulb retainer hook
3. Bulb
Remove the bulb from the headlight.
Installation is the reverse of the removal
procedure, noting the following:
• Tighten the lower yoke cover fasteners to
27 lbf-in (3 Nm).
• Reconnect the battery, positive (red) lead
first (see page 14 8 ).
