AWC7813 motion controller user manual
appear. At this time, the positioning point position should be adjusted. Please refer
to the definition of anchor point 3.2.7 Origin.

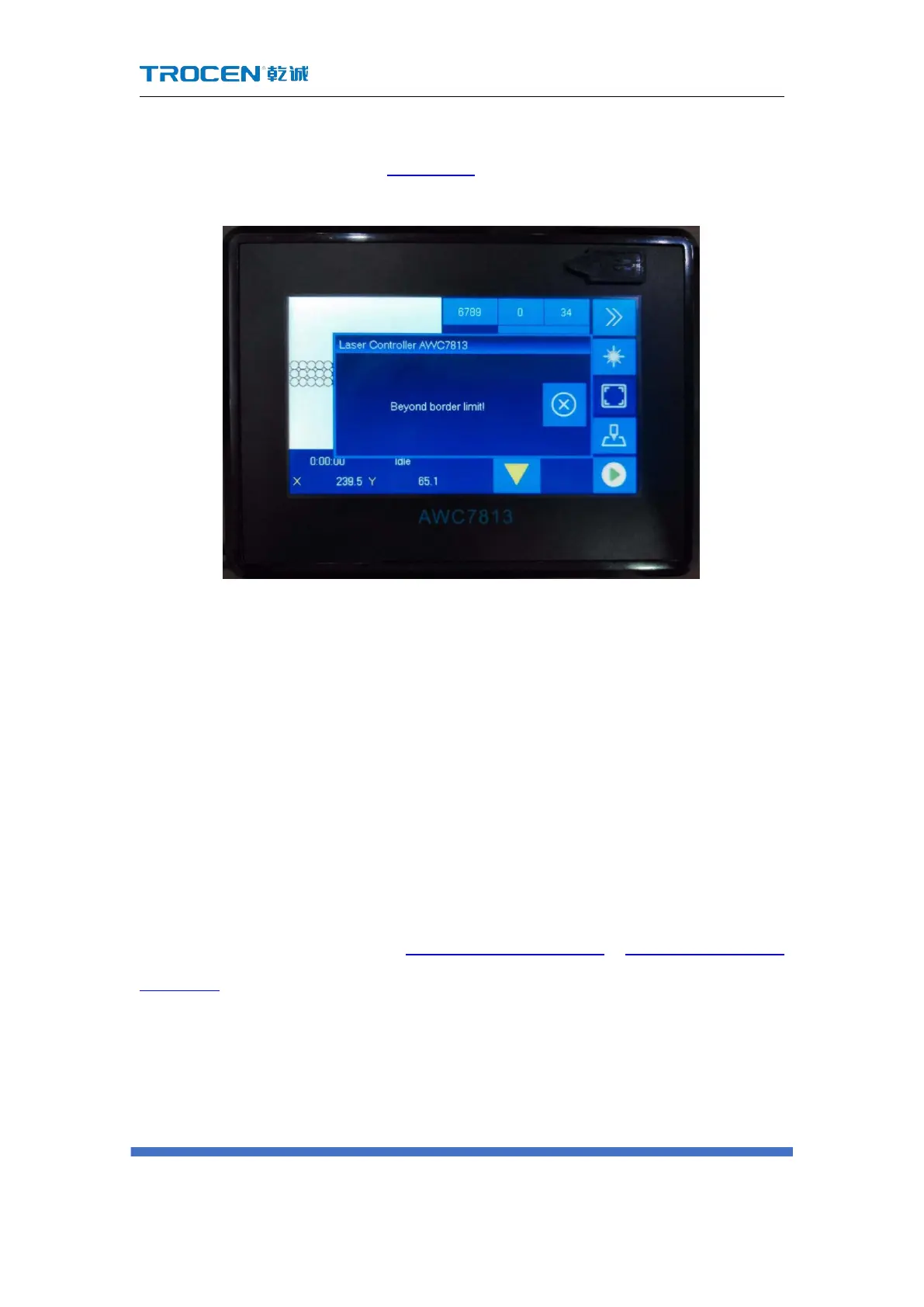

Figure4-4 "Beyond border limit!"
4.5 Why does the prompt "Trigger limit!" appear
After opening the axis hardware limit, if the laser head touches the limit switch
during operation, the prompt "Motion axis has touched the limit switch!" will appear
and the machine will stop operating.
Or the 【Limit-switch valid level】 setting is wrong, press the direction key to
move the machine, and the “Trigger limit!” prompt appears when the machine does
not reach the limit switch position, and the machine stops operating. 【Limit-switch
valid level】 can be modified at this time.
Related content can refer to 3.16.5 HardLimit Settings 、 3.16.1.5 Limit-Switch
Valid Level.
