Trocen AWC78 Series User Manual

AWC7813 motion controller user manual
WWW.SZTROCEN.COM
11
2. Hardware interface introduction

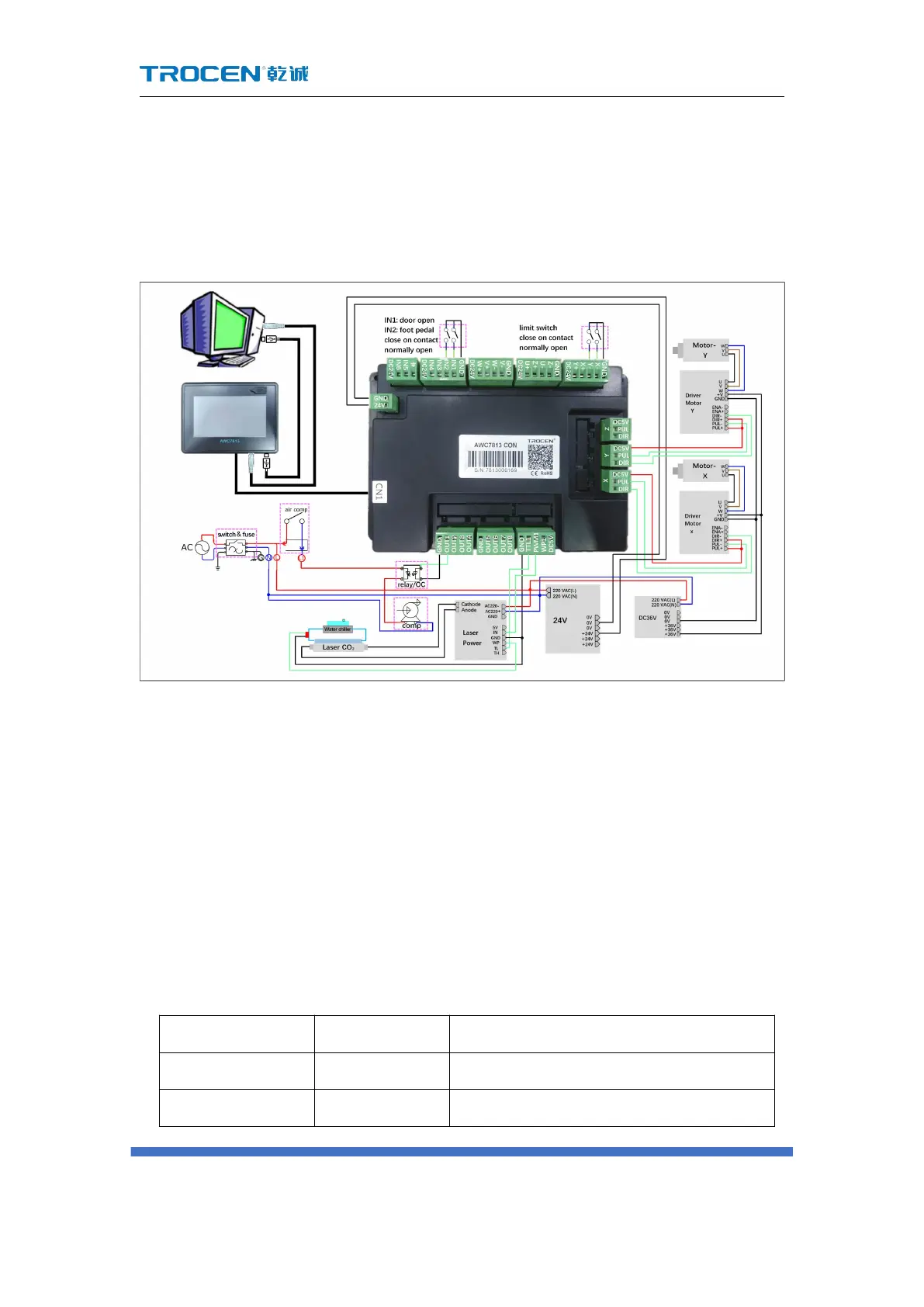

2.1 Control system electrical wiring diagram
2.2 Wiring board unit port description and wiring
diagram
2.2.1 Power port
It is used to supply power to the wiring board and the panel. When connecting,
be careful to the positive and negative poles. Generally need DC24V3A switching
power supply.
Terminal number
Terminal name
Description
1
24V
24V power supply positive
2
GND
24V power ground
