AWC7813 motion controller user manual
as “B” accurately with a ruler.
v. Enter the【X Axis Parameters】interface, move the cursor to【Distance
per Pulse 】 , press 【 Enter 】 key to enter the to calculate the pulse
distance interface, fill A into 【Expected Length】option, fill B into the
【 Actual Length 】 option, and click 【 Enter 】 key to calculate the
distance per pulse of X axis (rotary axis).

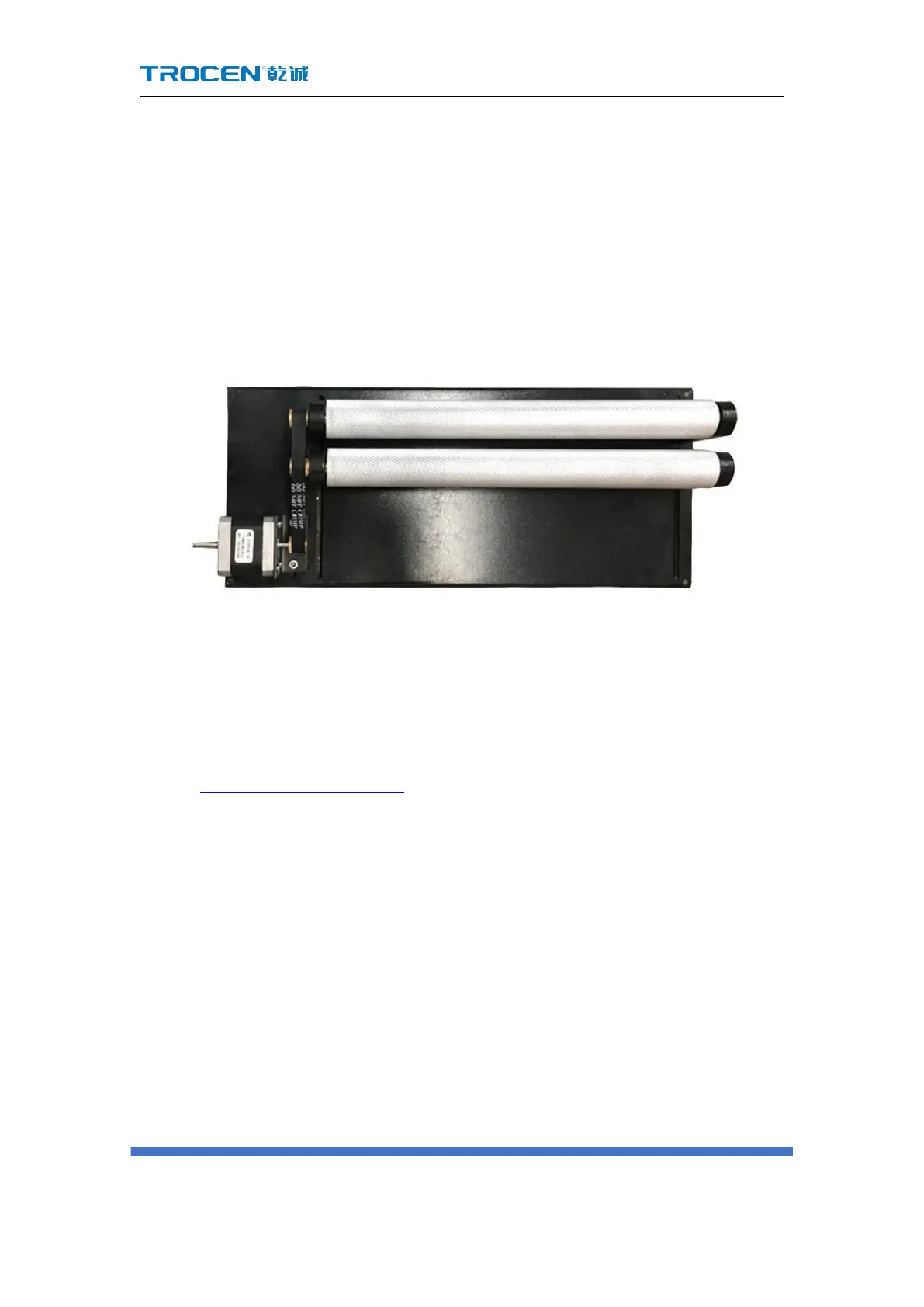

Figure 3-15-4-4 Roller Rotate Engraving & Cutting
3.16 Manufacturer Parameters Settings
3.16.1 Axis Parameters(take X axis as an example)
In Figure3-1-2 Main interface 2 interface, click 【 Menu 】 → 【 Manufacturer
Parameters Setting】→【Axis Parameters】→【X Axis Parameters】 to enter the axis
parameter
s
setting interface.
