AWC7813 motion controller user manual
2.2.3 Universal output port
The wiring board provides two sets of output ports for supplying external power
and controlling signals. When all output signals are working, the output voltage is
24V, and when not working, the output voltage is 0V. All output ports must connect
an external relay before they can be connected to other loads.
Power ground, output signal
Work blowing signal (blowing in the whole
process of work)
Light blowing signal (blowing when lighting )
Power ground, output signal

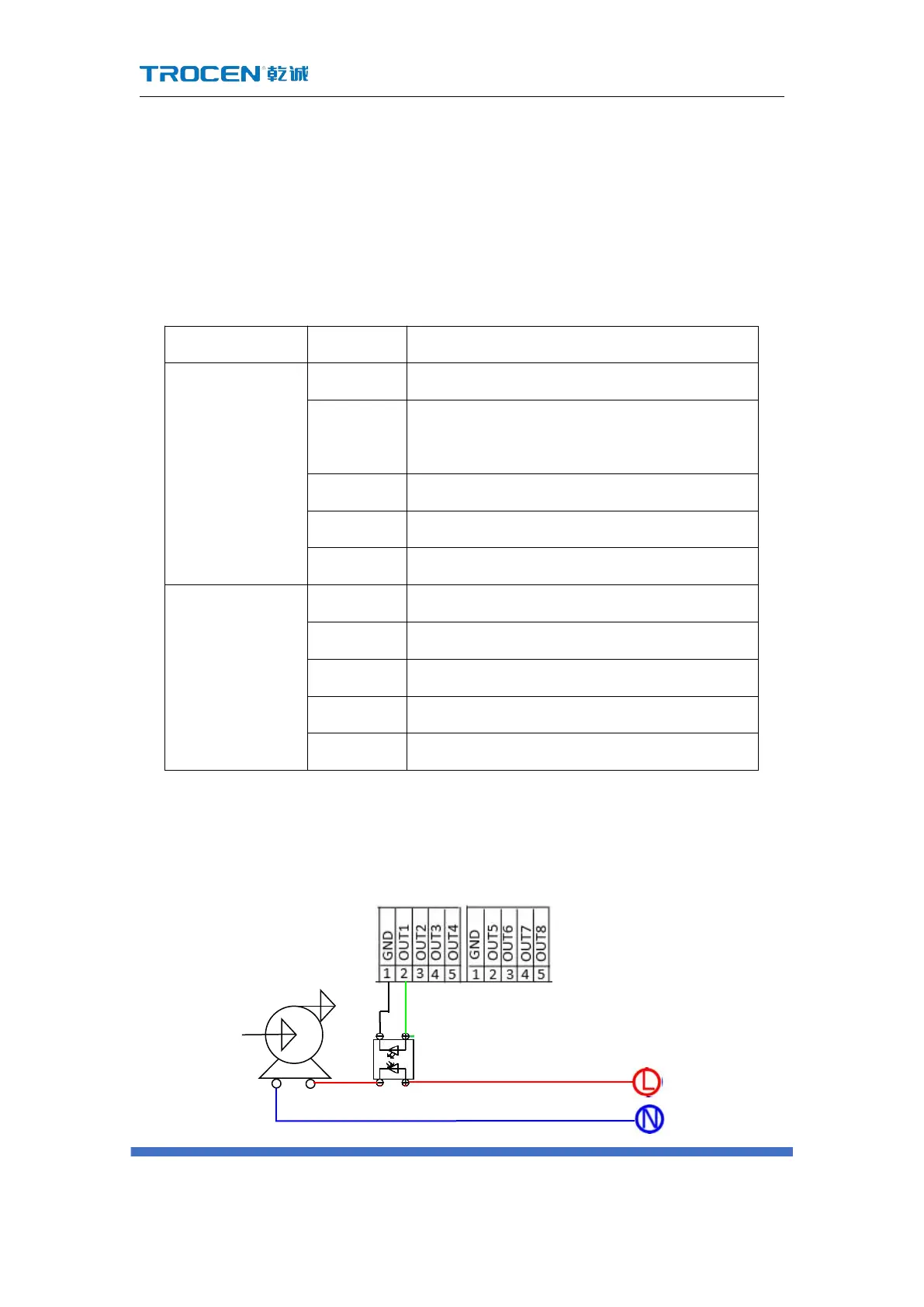

The usual output control signal is used to control the outgassing operation of
the laser. The wiring diagram is as follows:
