Trocen AWC78 Series User Manual

AWC7813 motion controller user manual
WWW.SZTROCEN.COM
58
3.15.4 Rotate Engraving & Cutting

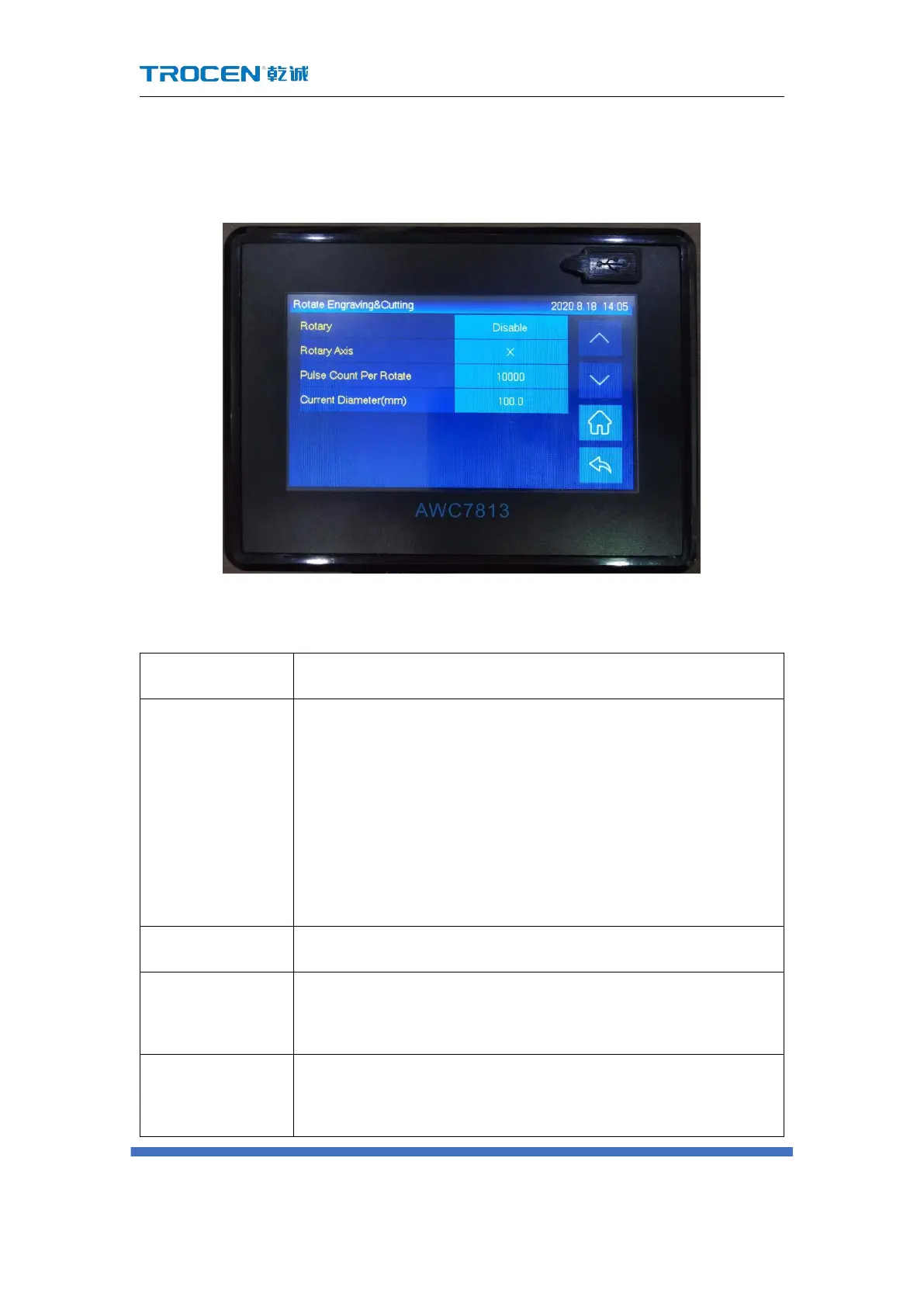

Figure3-15-4-1 Rotate Engraving & Cutting
Table3-15-4 Rotate Engraving & Cutting Instruction
Name
Instruction
Rotary
【 Rotate Engraving & Cutting 】 enable switch. When the
【Rotate Engraving & Cutting】 is turned on, set【Pulse Count
Per Rotate】 and 【Current Diameter(mm)】(【Distance Per
Pulse】=Circumference Length/【Pulse Count Per Rotate】), the
pulse equivalent value will change at this time, so when the
direction key is pressed, the axis movement becomes slower.
Rotary Axis
The axis which rotary engraving uses.
Pulse Count Per
Rotate
The pulse counts for the motor to make the rotary axis
rotate one circle.
Current Diameter
(mm)
The diameter of the material being processed.
