2.2.5 Motor driver control port
The wiring board can provide the connection of 3 motor drives.
Terminal group
Silk screen
Description
X/Y/Z
5V
5V power positive output, connected to the
common anode of the driver
PUL
Pulse signal
DIR
Direction signal

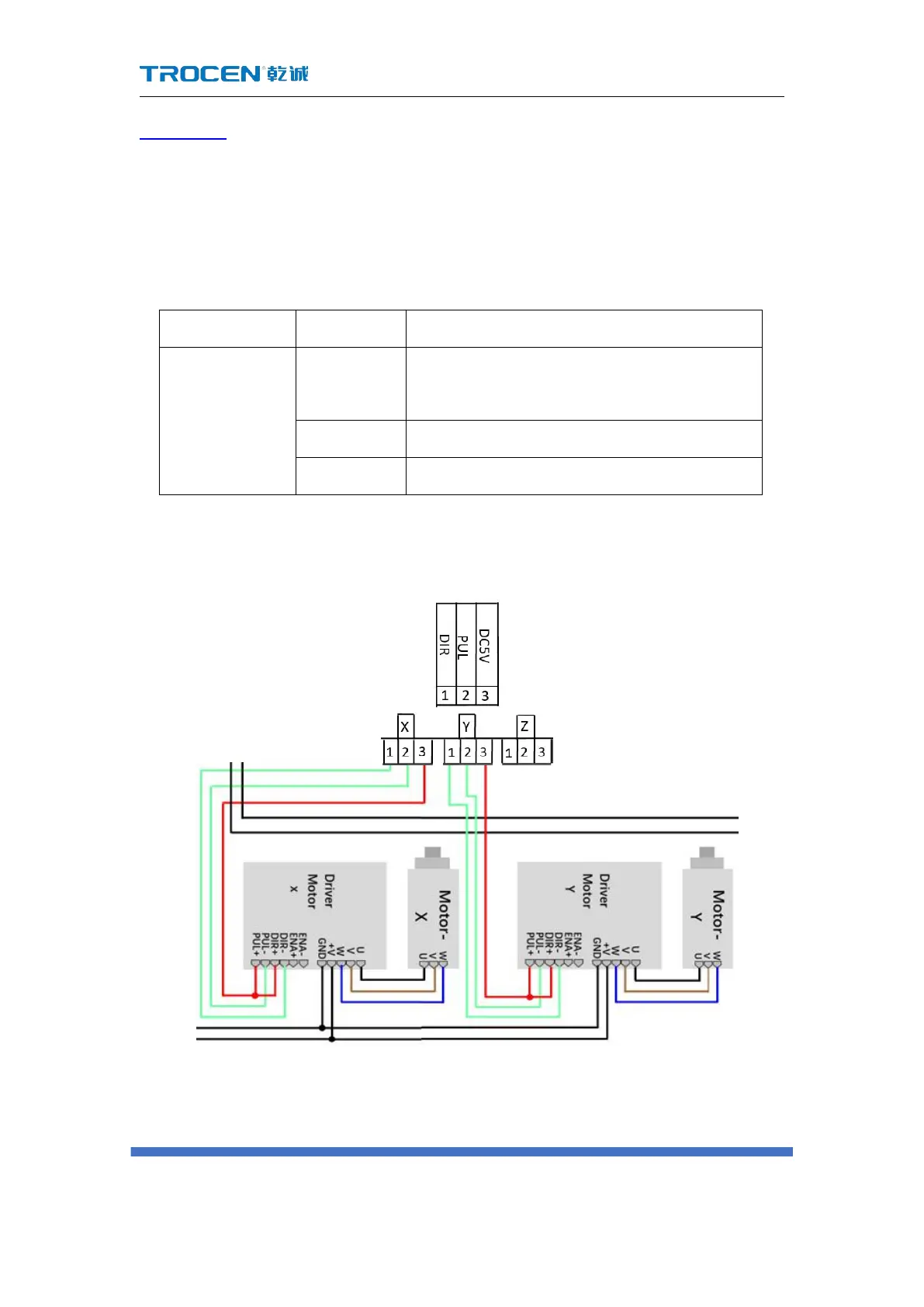

The wiring diagram is as follows:
Note: When the Y&Z double-driver control is turned on, the Z-axis direction
signal line should be connected to the Y-axis direction signal port, so that the Y&Z
