AWC7813 motion controller user manual
WWW.SZTROCEN.COM
29
Figure3-1-3 Main interface area division.

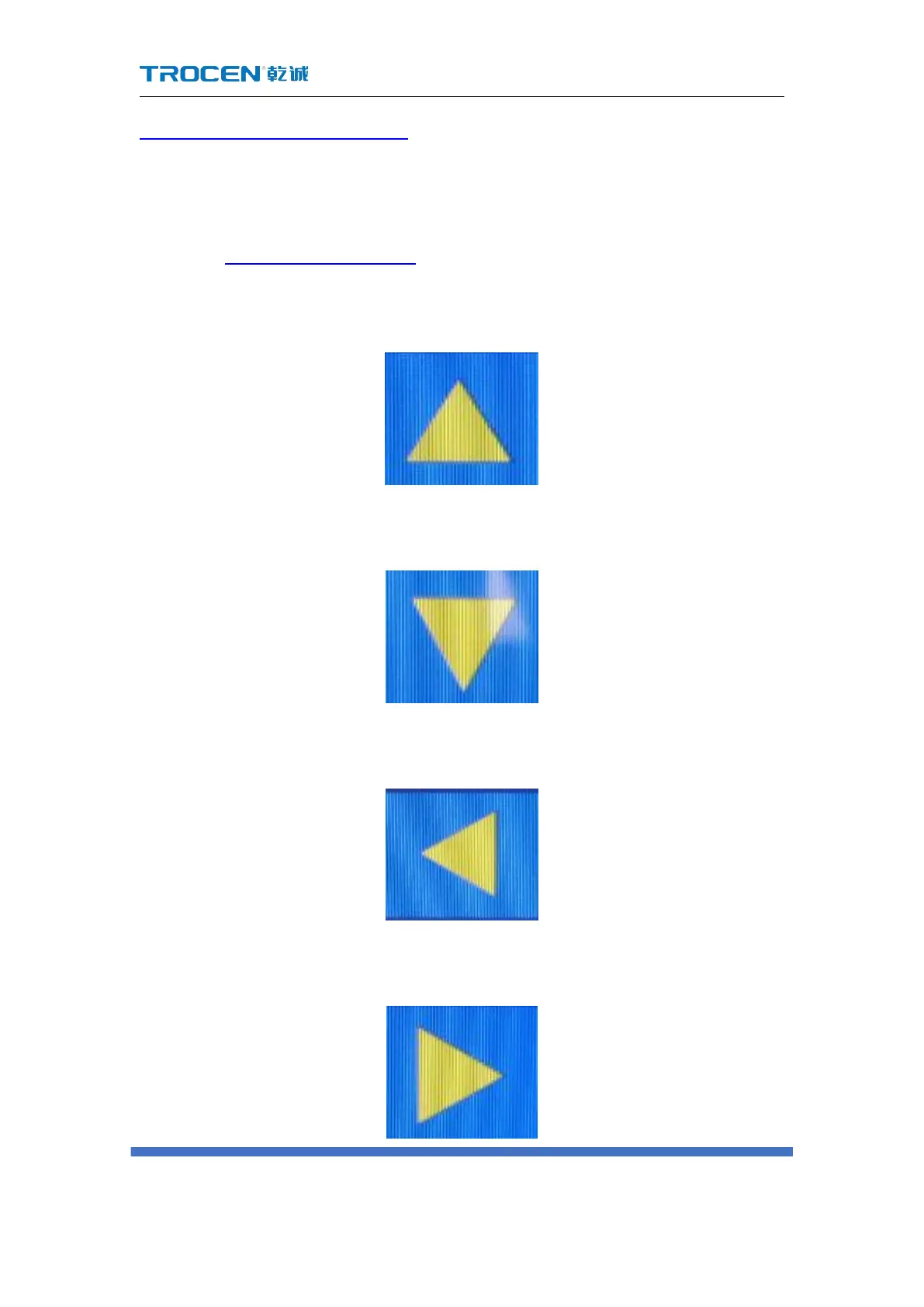

3.3.1 X,Y axis movement keys
In the Figure3-1-1 Main interface 1, press X, Y axis movement key to move X, Y axis.
1) Y axis up move key, control Y axis to move up.
Figure3-3-1-1 Y-axis up key
2) Y-axis down key , control the Y-axis to move down.
Figure3-3-1-2 Y-axis down key
3) X axis left key, control the X axis to move left.
Figure3-3-1-3 X axis left move key
4) X axis right key, control the X axis to move right.
Figue3-3-1-4 X axis right move key
