AWC7813 motion controller user manual

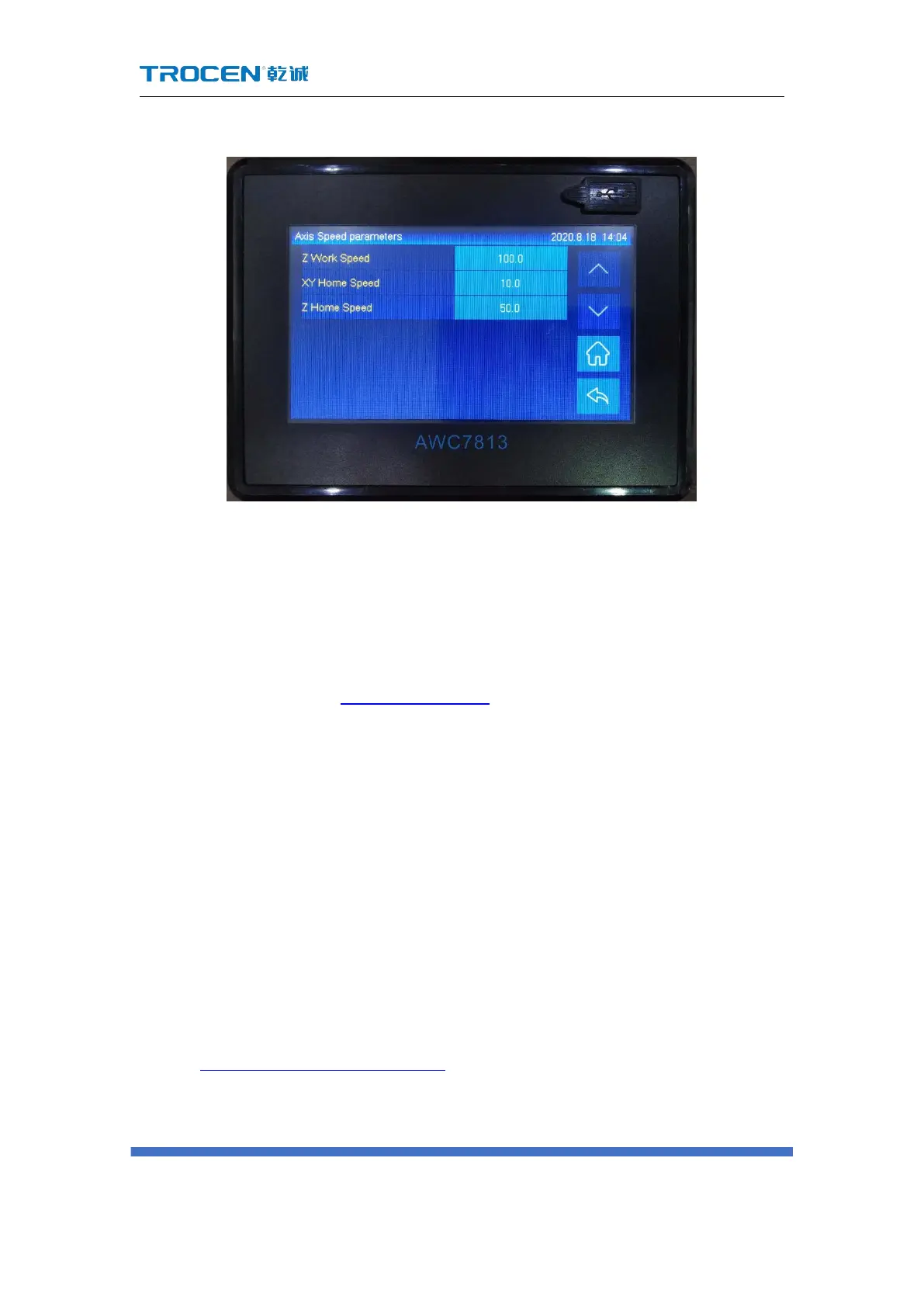

Figure3-15-3 Axis Speed Parameters
3.15.3.1 Z Work Speed(mm/s)
The speed of the laser head when it is working on the Z axis. The maximum
value cannot exceed the 【Max Speed】 of【Z axis parameters】. The unit is mm/s.
For details, please refer to 3.16.1.9 Max Speed.
3.15.3.2 XY Home Speed(mm/s)
The reset speed of XY axis. The maximum value of【 XY Home Speed(mm/s)】
cannot exceed 200. The unit is mm/s.
3.15.3.3 Z Home Speed(mm/s)
The reset speed of Z axis, the maximum speed cannot exceed 200.【Z-Axis for
Autofocus】on the reset speed. For the definition of【Z-Axis for Autofocus】, please
refer to 3.25.1 Run Z AutoFocus function. The unit is mm/s.
