Trotec SP3000 Operation Manual

SP3000
Machine overview
BA 8034_2.4_EN (12/2016) 41 / 87
www.troteclaser.com

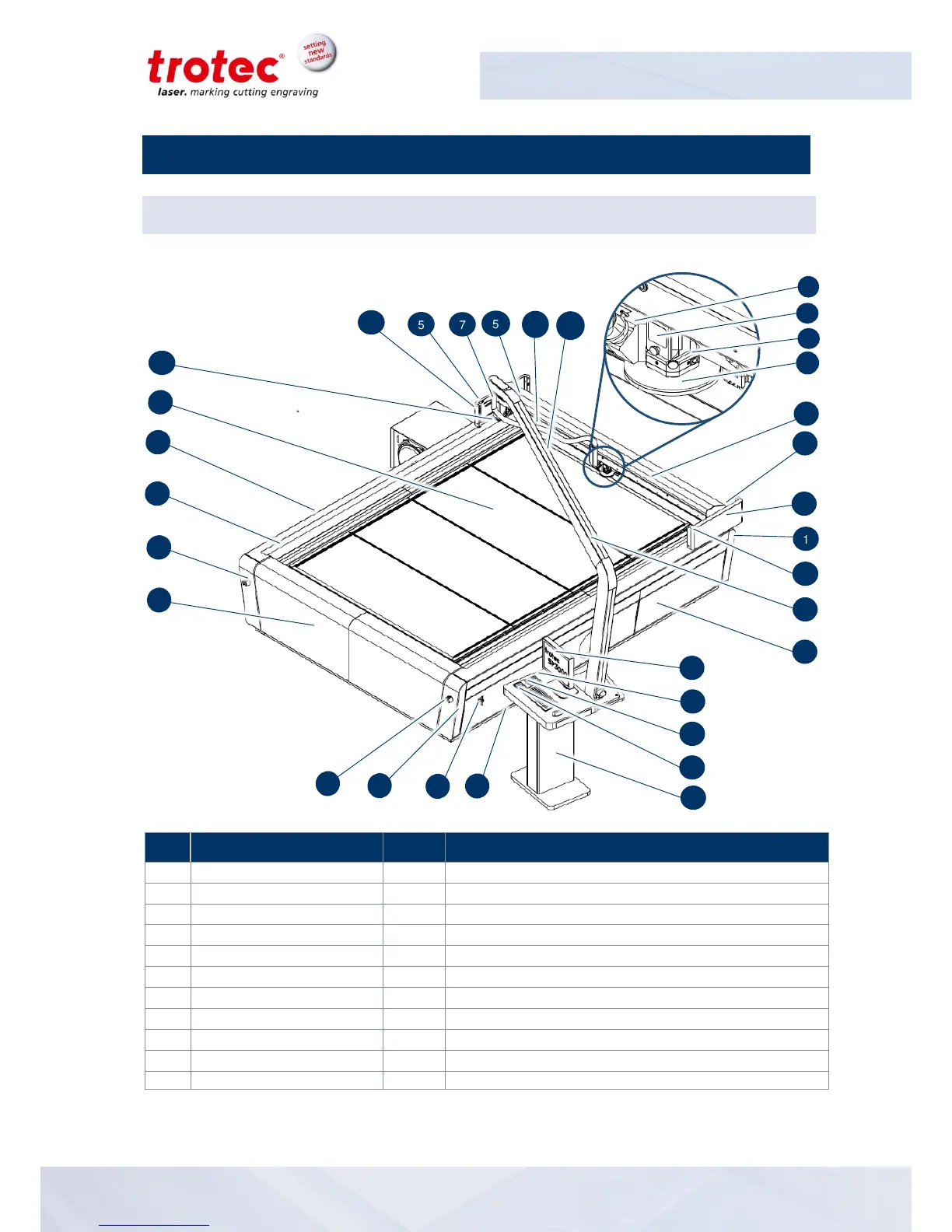

5 Machine overview
5.1 General overview
No
Description
No
Description
1
Emergency stop button
12
X-axis
2
Dust protection belt
13
Reflector
3
Side panel
14
Traveling exhaust
4
Tables
15
Monitor
5
Light sensor
16
Key switch
6
Bumper
17
Keyboard
7
Warning lamp
18
Connection cables (mains, exhaust and cooling system)
8
Head exhaust hose
19
Main switch
9
Laser head
20
Type plate
10
Hall sensor
21
Front and back cover
11
Laser deflector shield
22
Operating console
1
1
10
20
1
2
11
5
5
16
1
15
14
3
12
9
21
13
8
5
7
6
3
19
18
1
4
5
13
13
17
22
