Trotec SP3000 Operation Manual

SP3000
Machine overview
BA 8034_2.4_EN (12/2016) 43 / 87
www.troteclaser.com

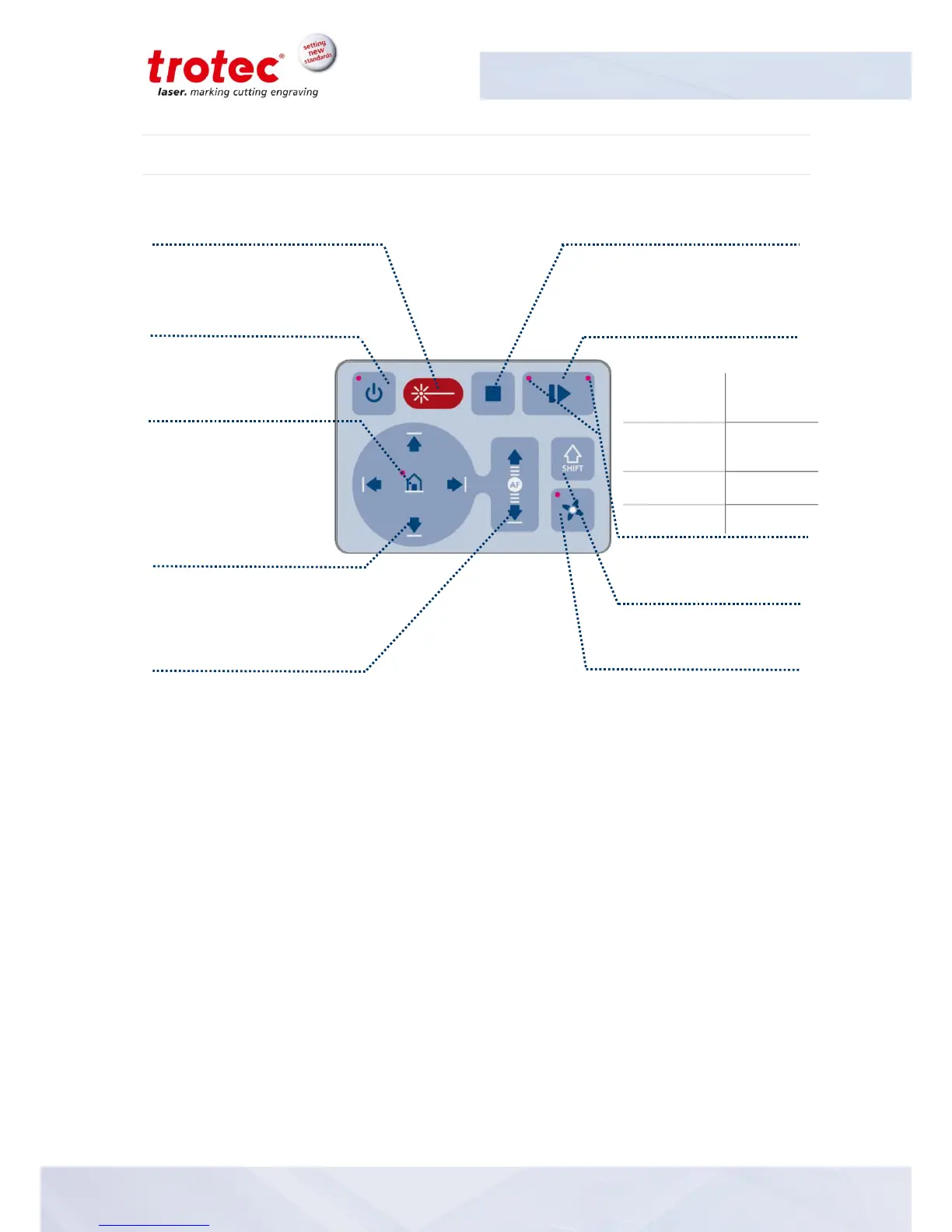

5.2.2 Operation panel
Status indicator: Laser beam
LED ON: The machine is processing data
Button: Laser head
(Z-position)
-Up
-Down
Focus automatically
Button: Home
LED ON: Home position
temporarily changed
Button: Standby
LED ON: Standby-mode
LED OFF: Ready-mode
Button: Laser head
(X/Y-position)
-X-axis direction
-Y-axis direction
Button: Shift
Second operating level
Button: Exhaust
LED ON: Exhaust active
Status LEDs
Green,
flashing slowly
(0.5 Hz)
Machine is
Ready
Covers closed
Green,
flashing fast
(2 Hz)
Cover is open
Blue and green
permanent
Data available
Pause- mode
Green,
permanent
Receiving or
processing data
Button: Start/Pause/Repeat
LED ON: Pause-mode
Button: Stop
