I N D I V I D U A L M A R K I N G S Y S T E M S
What you have to do:
1. Disassemble the cover on the right side of the machine (10mm allen key).
2. Take your laser protection glasses and remove the grey cover of the first mirror at
the rear of your laser (right side) wearing the sign „DANGER. INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EYE OR SKIN EXPOSURE TO DIRECT OR
SCATTERED RADIATION.“

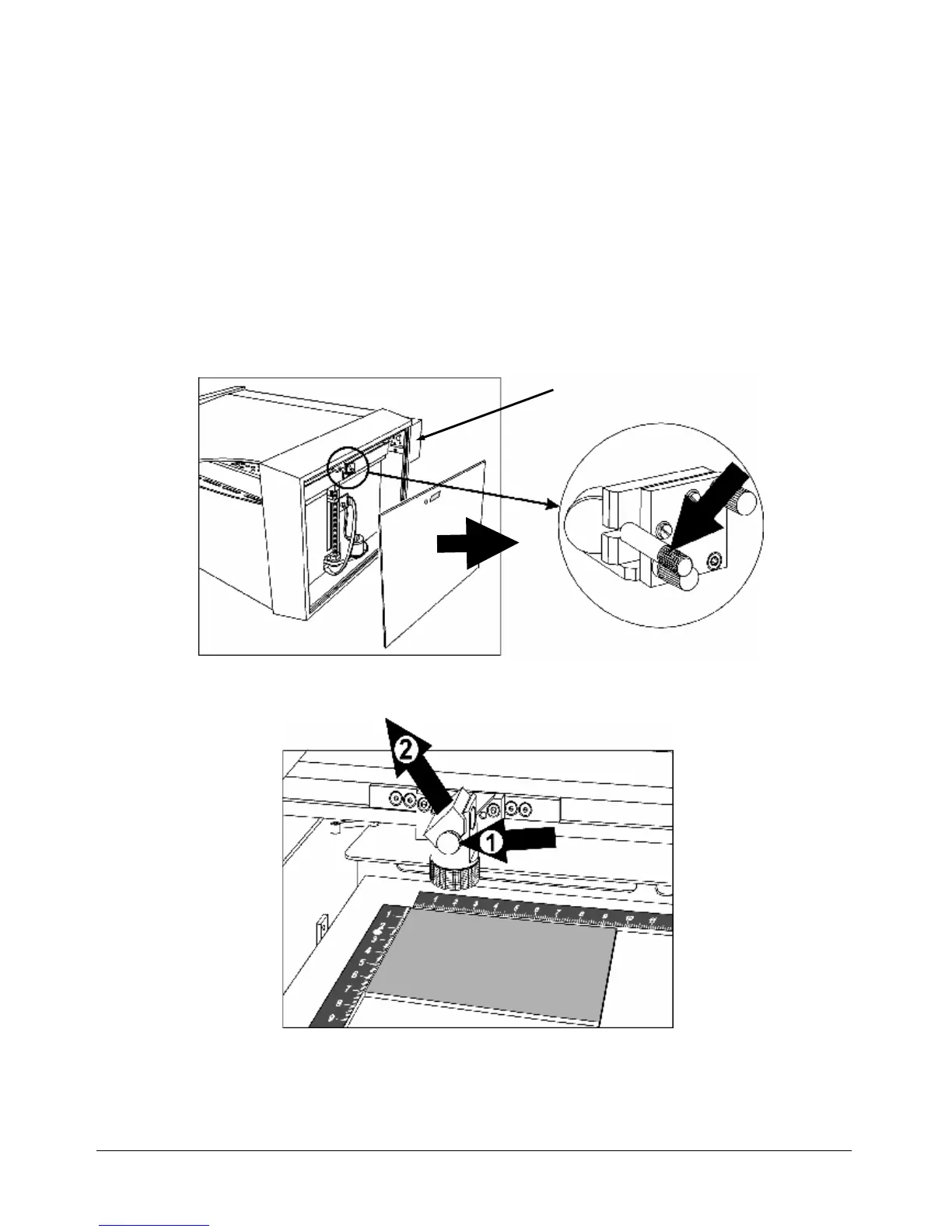

3. Remove mirrors #2 and #3.
Removal of mirror #2
Removal of mirror #3
mirror unit 3
cover of mirror 1
