Steps for servicing the X-axis:
1. Take the X-axis out of the machine

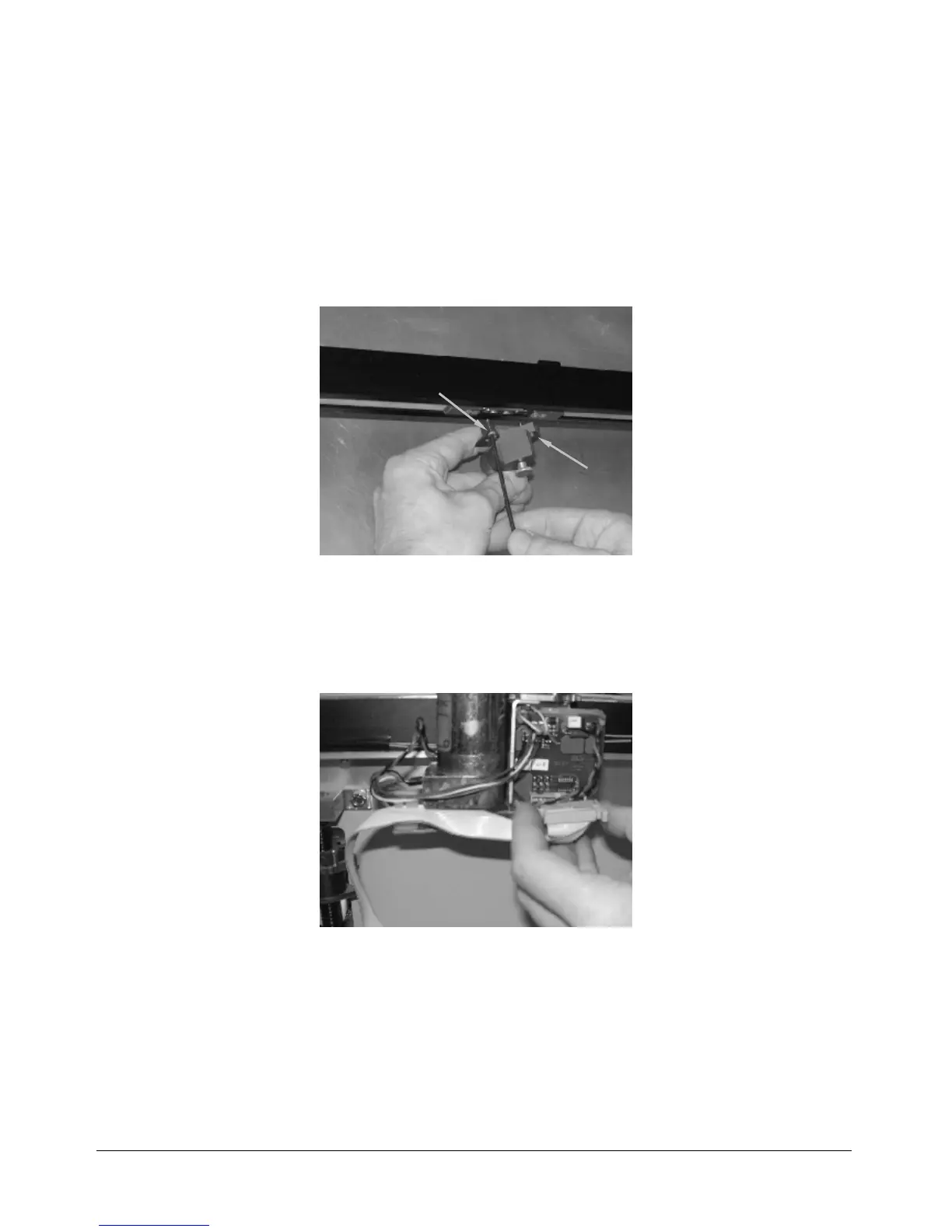

- Loosen the two screws on the left and on the right side of the engraving
head
dismantle the engraving head
- Take off the engraving head
- Open the maintenance and the service access panel. Take off the cover of
the electronic compartment
- Disconnect the X axis motor cable
- Open the five screws that connect X and Y axis (two on the left and three
on the right side of the machine)
