- Connect the new belt to the old one. Pull out the old belt (and at the same
time pull in the new belt)

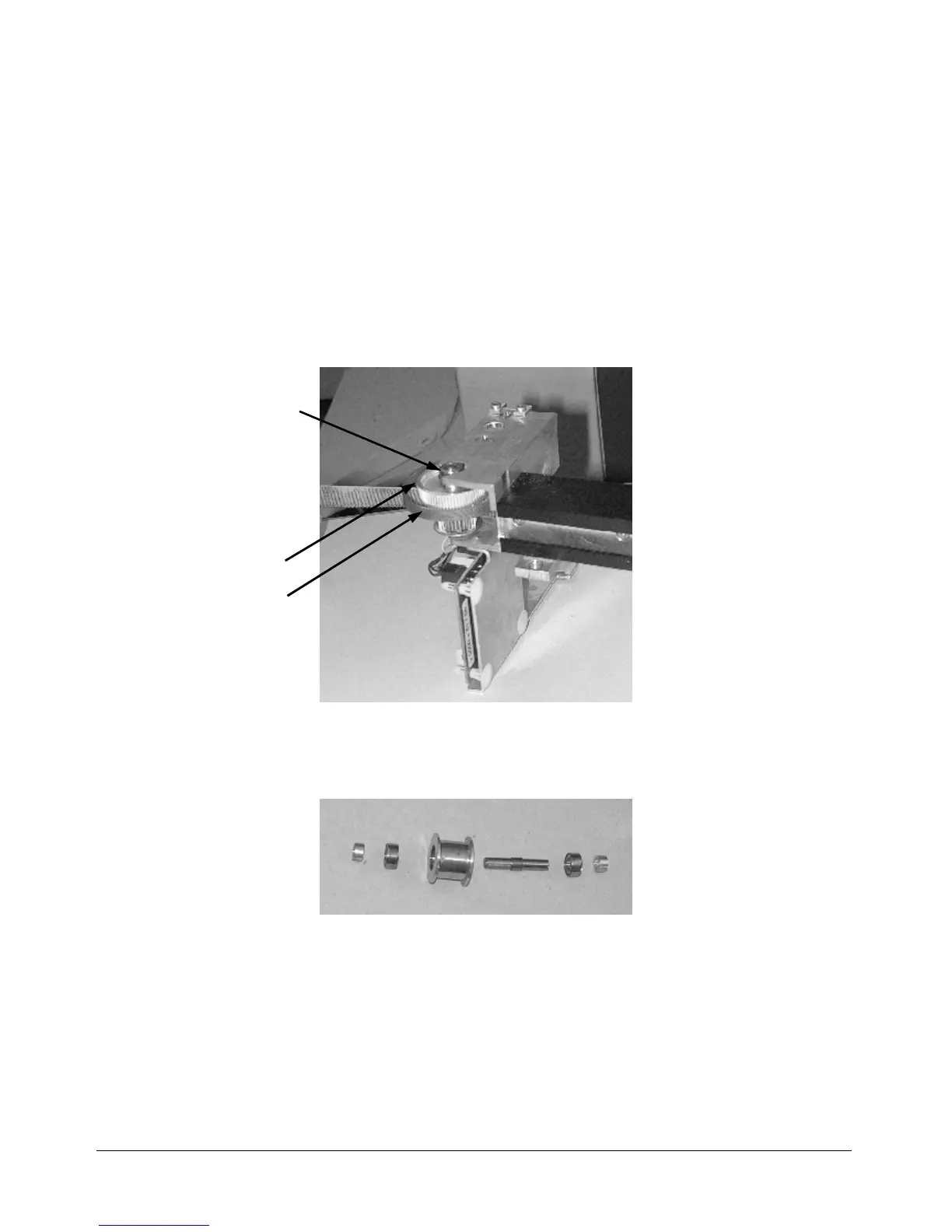

5. Replace the ball bearings, the X-gearing assembly and the motor belt
There are ball bearings on the left side and on the right side of the X axis.
One each on the upper and lower end of the X-gearing assembly and two on
the main belt idler pulley.
- Take out the gearing assembly (including ball bearings) and the motor belt
and replace it.
gearing assembly
- Take out the idler pulley, remove the old ball bearings and replace them for
new ones.
idler pulleyX-axis
6. Assemble all compontents in the reverse order.
ball bearing
gearing
assembly
motor belt
