NORMAL.DOT Gespeichert in:G:\Support\Dokumentationen_CDs\8003Speedy\Service Manual\Servicemanual 8003.doc Gespeichert am:2003/03/10
max Version 14
Seite 49 von 87
I N D I V I D U A L M A R K I N G S Y S T E M S

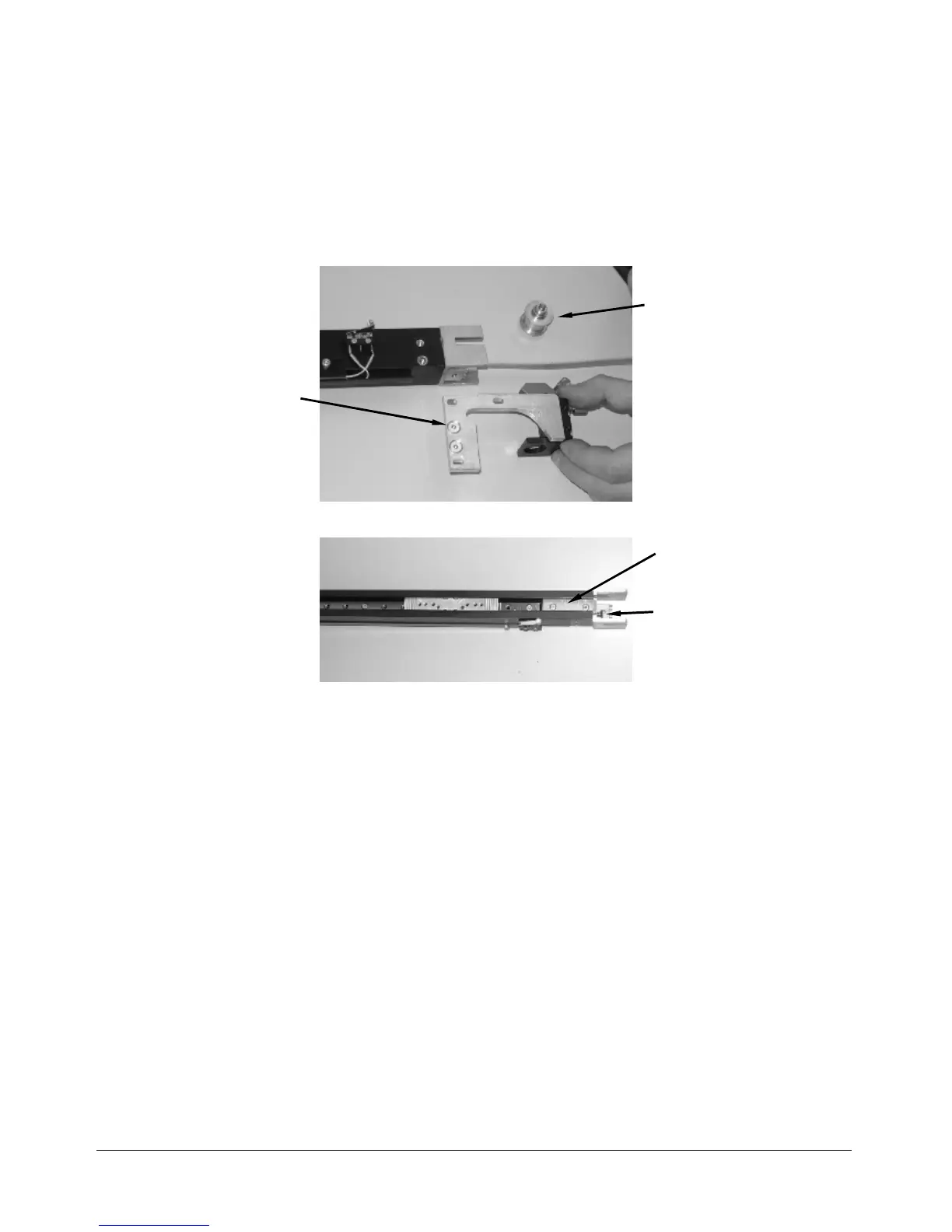

After a very long time of use also the THK guides must be replaced. This is done
between step 4 and 5:
- Remove the mirror unit no.two, bearing holder and carriage stopper.
remove mirror no.2
THK replacement
- Remove all screws that fix the THK and slide it to the right
- Replace it and assemble the components in the reverse order
idler
pulley
fixing
screws
bearing holder
carriage stopper
