● The samples should be placed firmly into the clamp. The clamp should be placed
correctly on the tranfer unit.
Imporper placements may cause damage to the cutting and grinding wheel.
● The clamp tightening bracket should not be pushed forward. Imporper placements may
cause damage to the cutting and grinding wheel.
※Choose a proper V groove depending on the terminal size.
Applicable wire size (for reference):
● Small V groove (Width 1.3mm, Height 0.4mm)
AWG24 ~ AWG32
● Medium V groove (W 2.7mm, H 0.8mm)
AWG14 ~ AWG28
● Large V groove (W 5.6mm, H 1.6mm)
AWG10 ~ AWG16 (Big-wire clamp)
The protrusion length of wires after fixing into the clamp should be 30mm or less.
If the wire protrudes more than 30mm, cut off the wire tip to make it shorter.

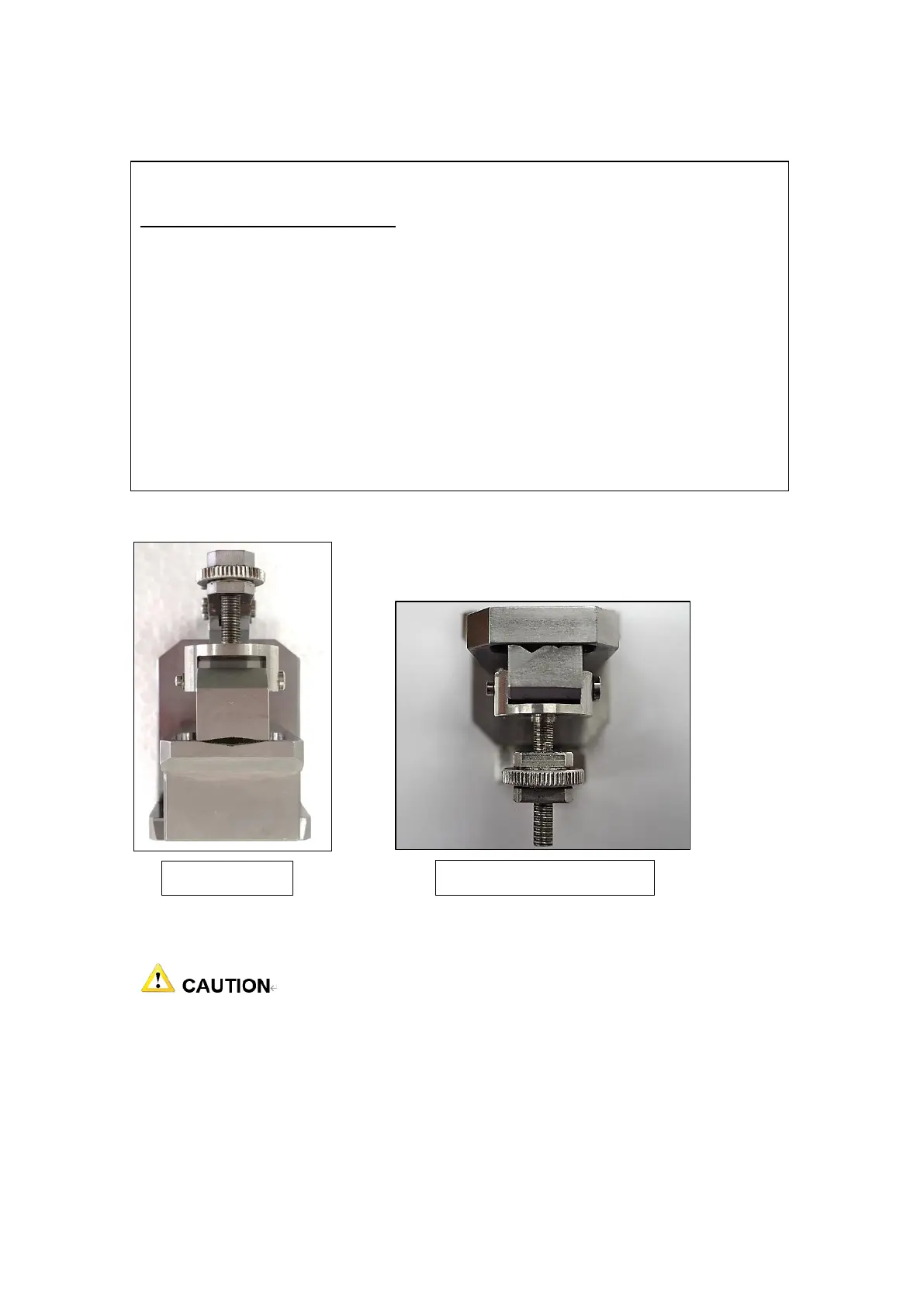

Large V groove
Small and Medium V groove
