8.3 SETTING THE TERMINALS

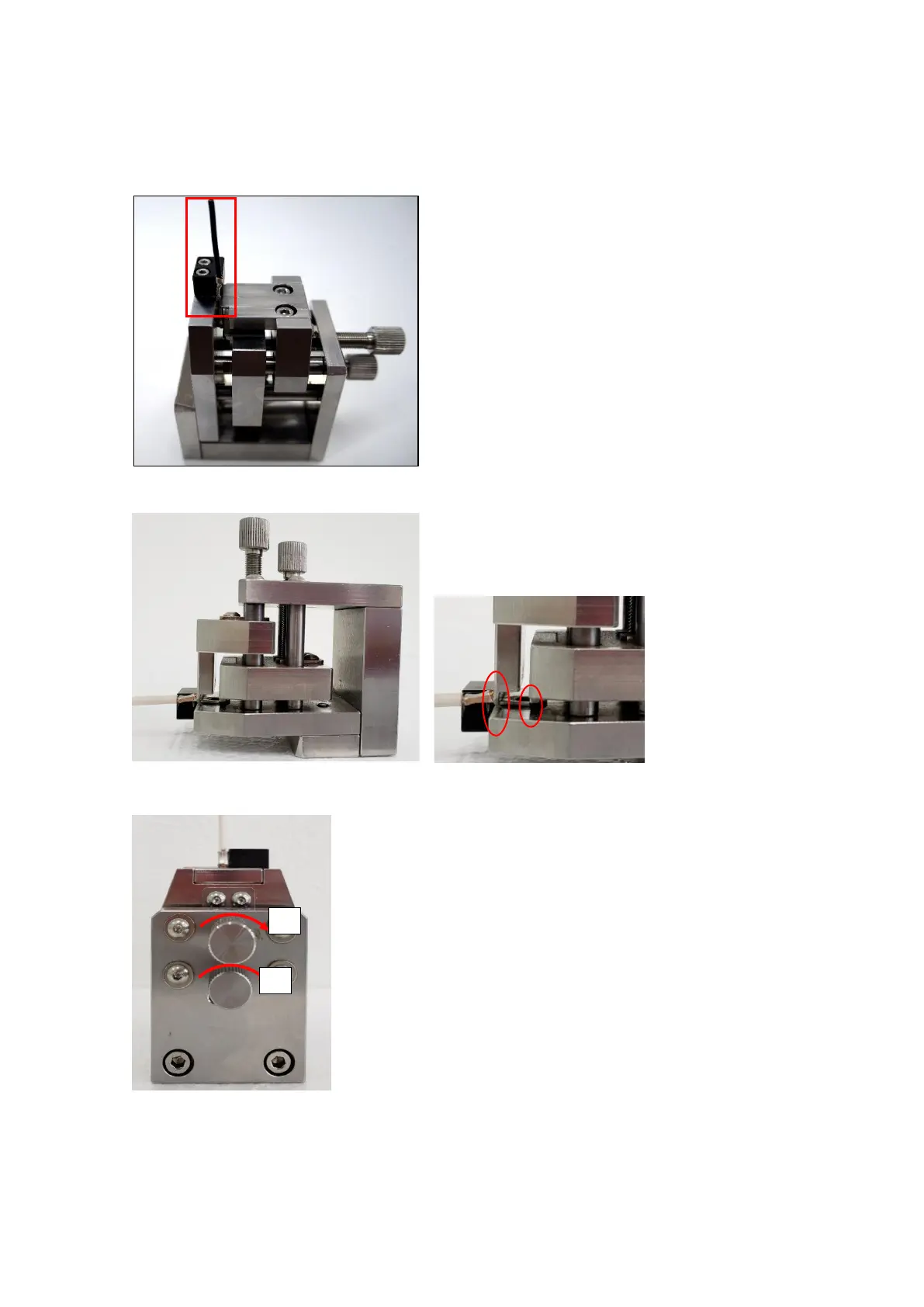

1. Place the terminal mating section into the
clamp tightening bracket.
Ensure the terminal is set straight and leans back
on the fixing block (black). This block will prevent
the terminal from bending during the grinding
process.
2. Longitudinal cutting clamp is designed to hold
the terminal mating section at two positions.
Ensure the mating section is hold firmly at these
positions
3. Rotate screw clockwise to tighten the terminal.
