7.5 CUTTING THE BIG WIRES
Cutting big terminals will produce a large amount of metal dust. Therefore, it is necessary
to activate the vacuum cleaner.

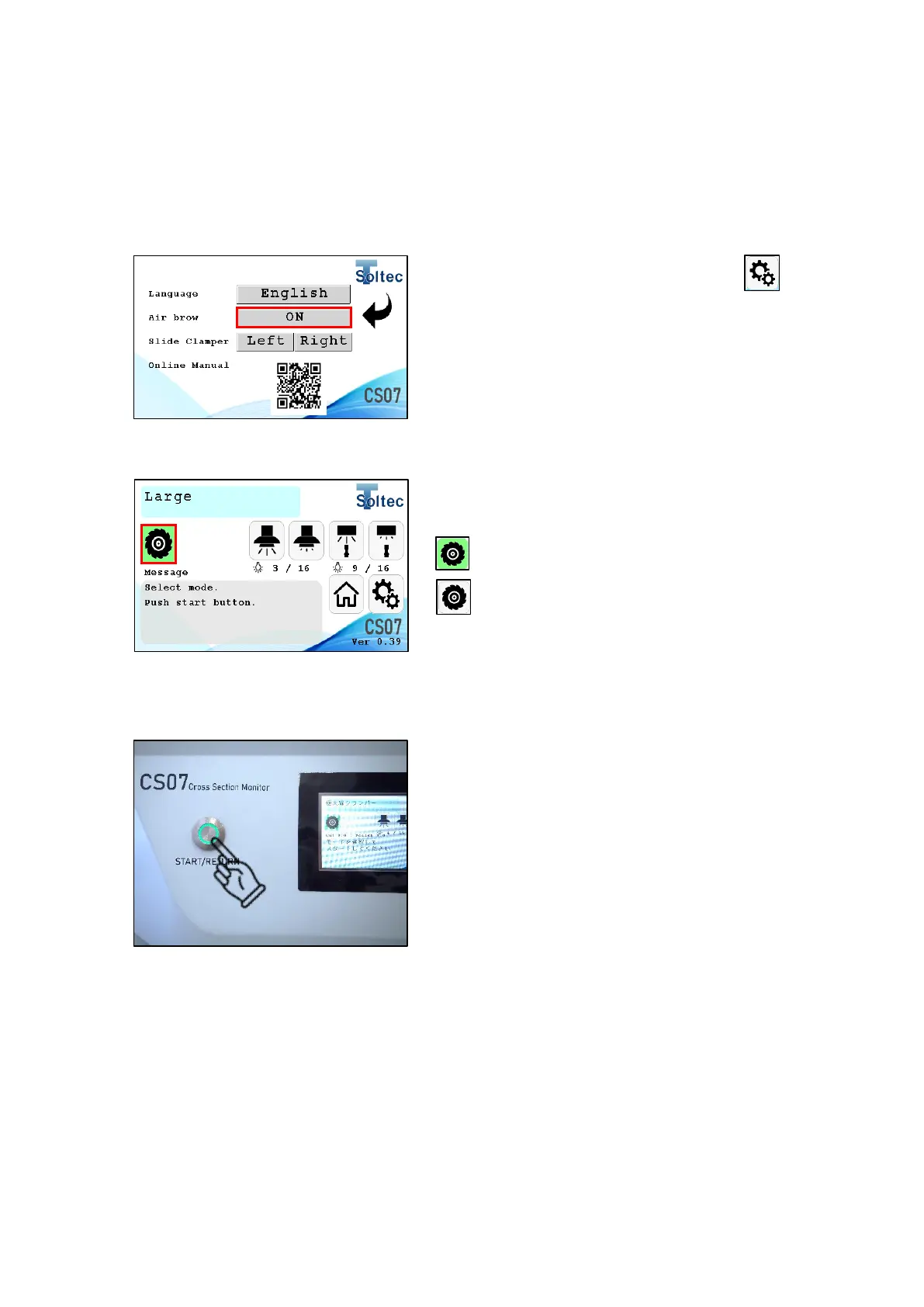

1. On LCD operation panel, select Setting
button.
→ Setting screen appears
At Air brow, touch OFF button
→ It will switch to ON
2. On the LCD panel, big wire cutting mode
(Large) is automatically recognized.
Check if cutting mode is activated or not.
: Activated
: Deactivated
If the cutting mode is not activated, touch Cutting
button
→ It will switch to green (activated)
3. Press START button
→ CS07 automatically cuts the terminal.
When the transfer unit reaches its leftmost limit, it
will then return to its home position.
※After the terminal is cut, if you want the transfer
unit to return to its home position immediately,
press START button.
