8 LONGITUDINAL CROSS SECTION
With CS07 longitudinal cutting option, it is very easy to create a longitudinal cross section.
All terminals that have their total length up to 5mm, can be used with CS07 optional gigs.
CS07 automatically recognizes and switches to the longitudinal cutting mode based on the
type of clamp that is being used.
At longitudinal cutting mode, operator manually moves the terminal close to the grinding
wheel via controlling the LCD panel. The terminal is ground a little at a time until it reaches
the measuring position.

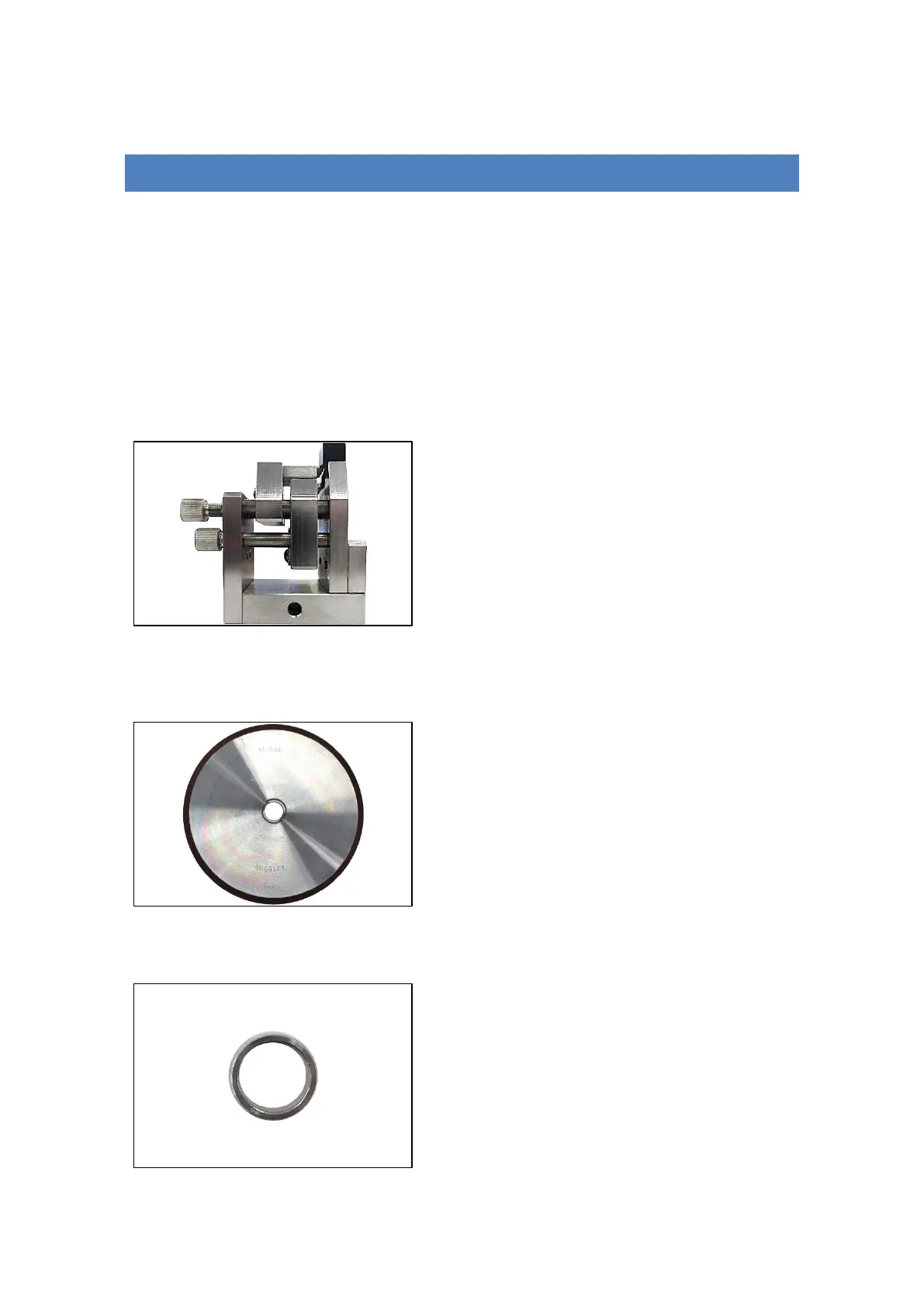

8.1 LONGITUDINAL CROSS SECTION OPTIONAL COMPONENTS
1. Longitudinal cross section clamp
2. Longitudinal cross section grinding wheel
Thickness: 5mm
3. Longitudinal cross section wheel bearing
