20

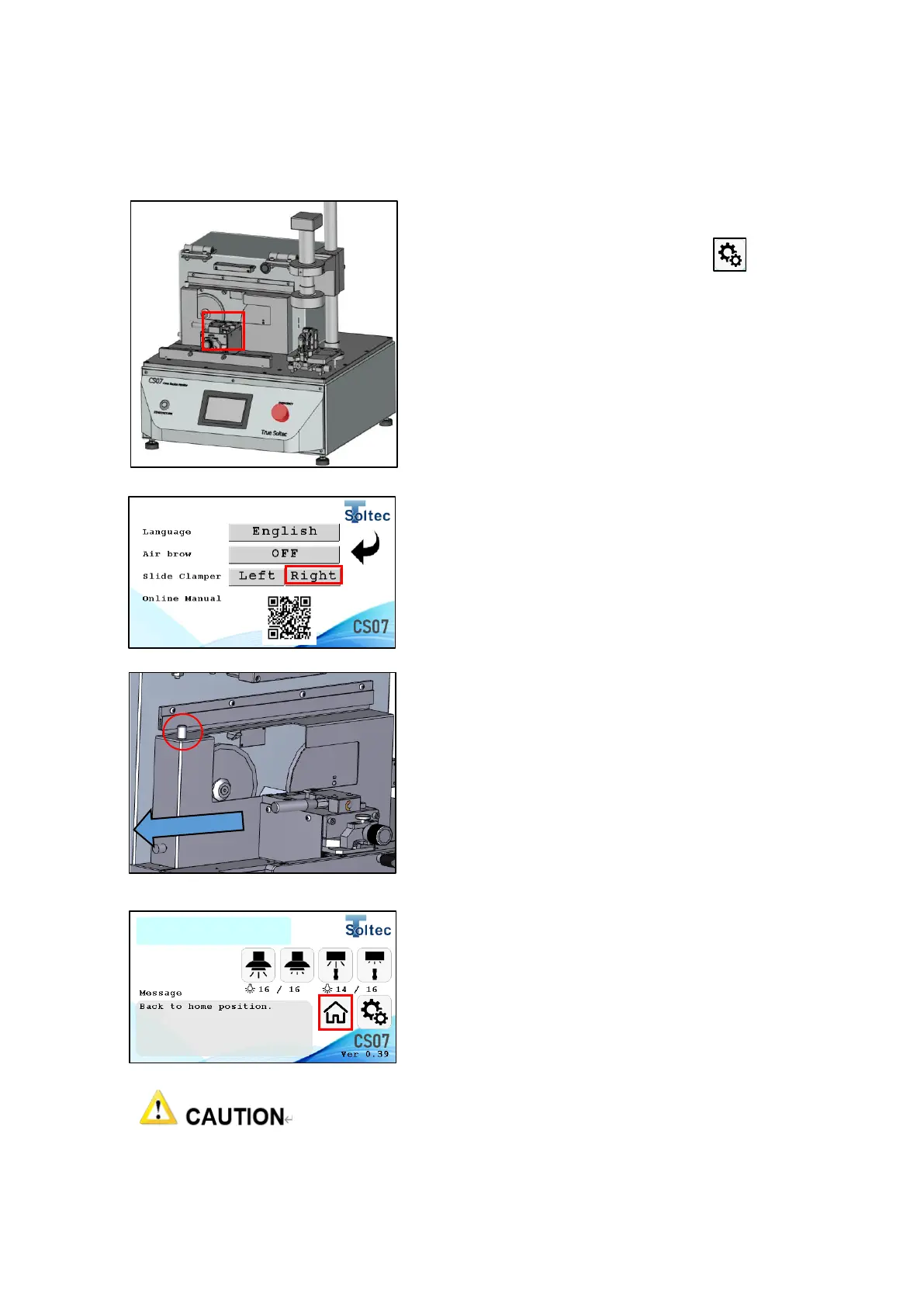

5.3 CLEANING THE INTERNAL CUTTING AREA
1. Remove the clamp from the tranfer unit.
Close the safety cover
On LCD operation panel, press Setting
button.
→ CS07 setting screen appears.
2. At Slide Clamper, press Right button.
→ The tranfer unit starts moving to the right.
→ Turn off the power of CS07.
3. Open the metal protective cover by sliding it to the
left while holding the metal knob (red circle).
→ Use a brush or similar tools to wipe all the cutting
dust into the hole below the cutting wheel.
4. After cleaning the cutting area, return the metal
protective cover to its original location.
→ Turn on the power of CS07.
→ Press HOME button to move the transfer unit to
its home postion.
Setting is completed.
Do not let any metal objects fall into the black brush area under the clamp transfer unit.
