17

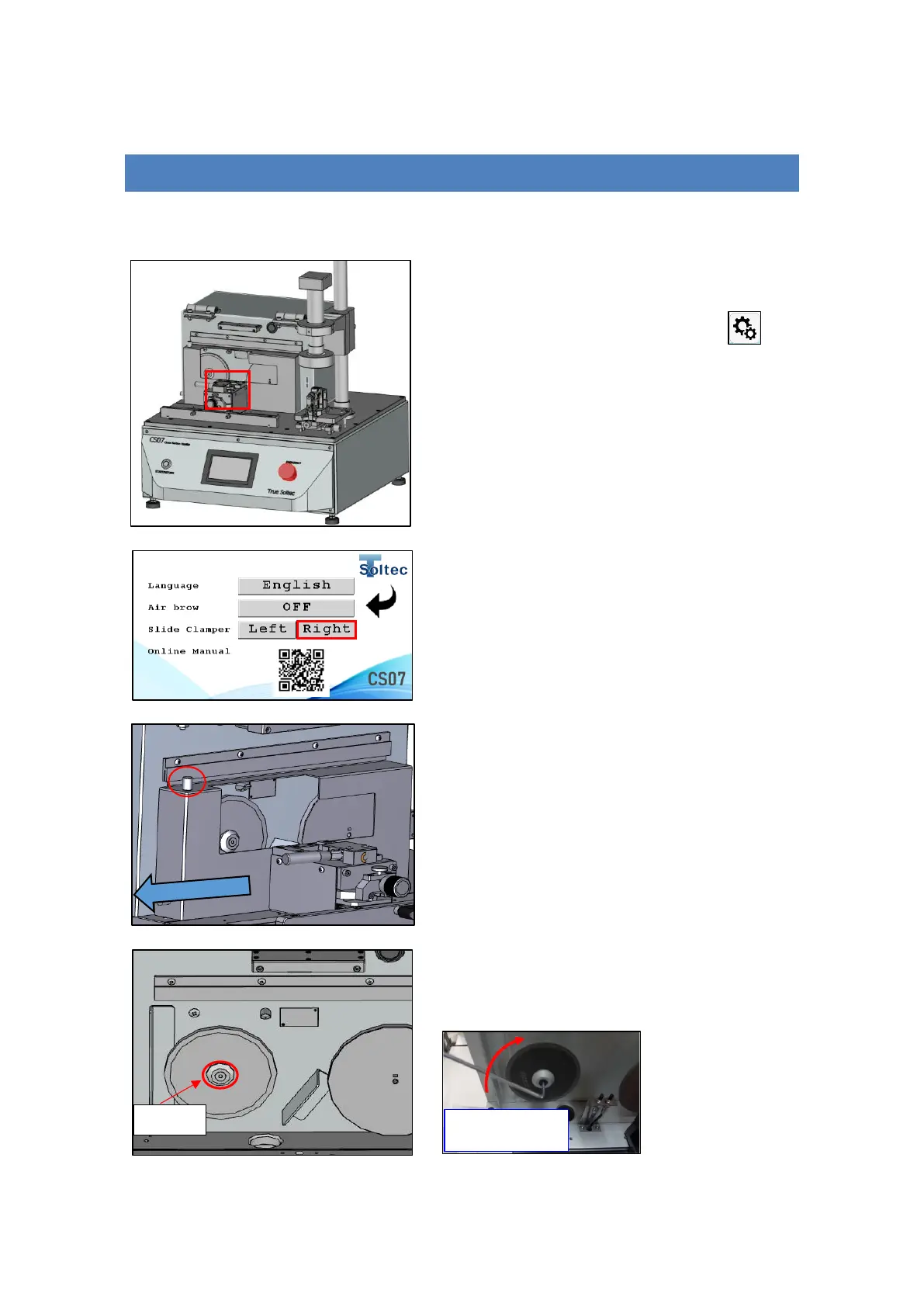

5 REPLACING & CLEANING CONSUMABLES
5.1 REPLACING THE CUTTING WHEEL
1. Remove the clamp from the tranfer unit.
Close the safety cover
On LCD operation panel, press Setting
button.
→ CS07 setting screen appears.
2. At Slide Clamper, press Right button.
→ The tranfer unit starts moving to the right.
→ Turn off the power of CS07.
3. Open the metal protective cover by sliding it to
the left while holding the metal knob (red circle).
4. On the cutting side, remove the cutting wheel
by rotating the flange clockwise.
※Do not rotate the flange counterclockwise.
To Next Page
