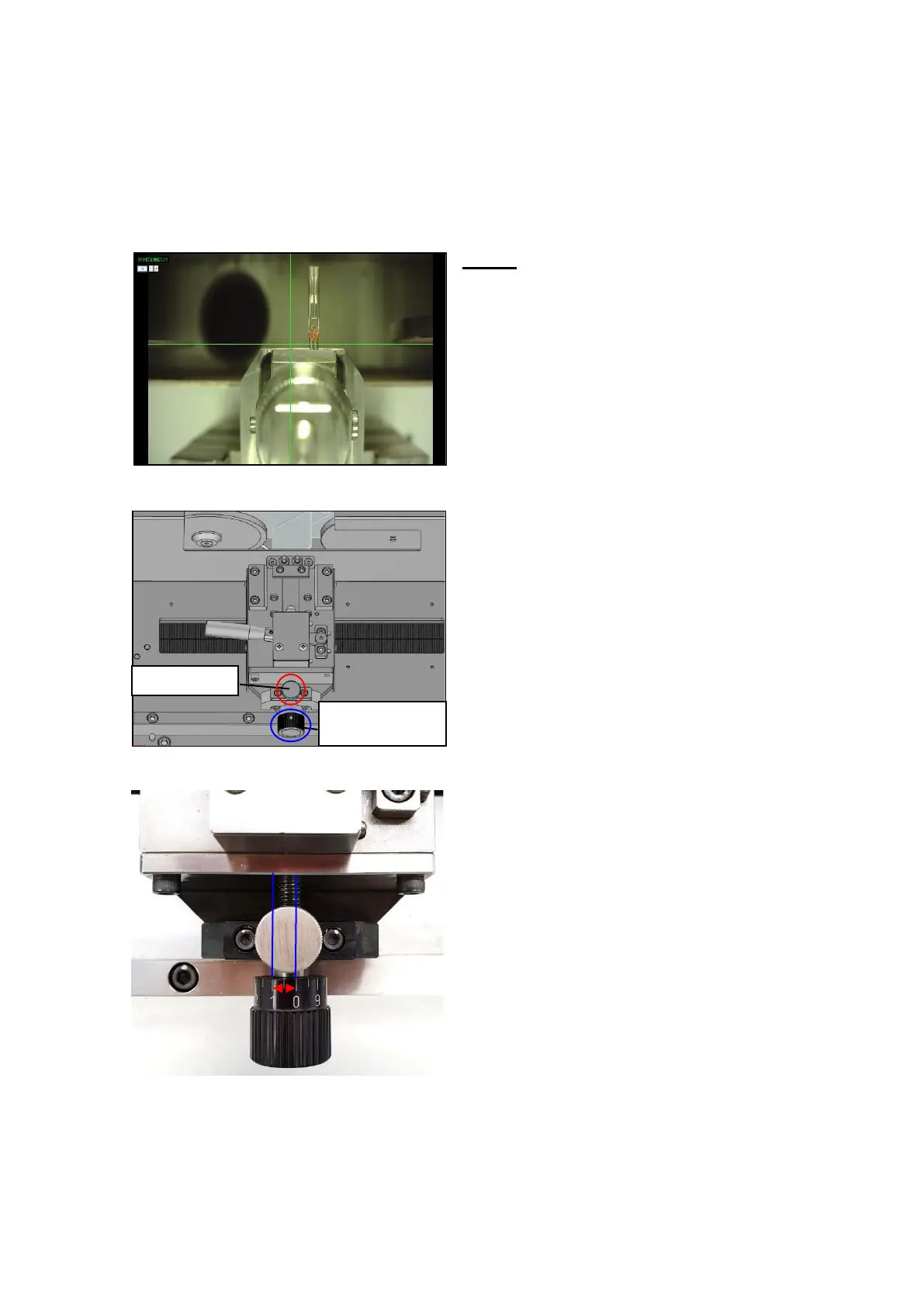

4.2 ADJUSTING THE CUTTING POSITION
This function is only valid if using with CS07HI software. It helps locate a proper cutting
position (measurement position).
Usage:
1. Open CS07 software.
2. Activate the position checking camera.
→ 2 green lines appear.
→ Check if the terminal is set up straight
vertically, and if it is perpendicular to the
horizontal line or not, based on these lines.
(Refer to CS07HI operation manual for details)
3. Loosen the fixing screw by rotating it
counterclockwise.
This screw prevents the position adjusting
dial from moving.
4. Rotate the position adjusting dial clockwise
to change the cutting position.
The position, where the horizontal green line
goes across, is the cutting position.
Each step = 0.1mm
e.g: 0~1 = + 0.1mm
0~2 = + 0.2mm
0~3 = + 0.3mm
5. After changing the position, tighten the
fixing screw again.
Close the safety cover.
