37

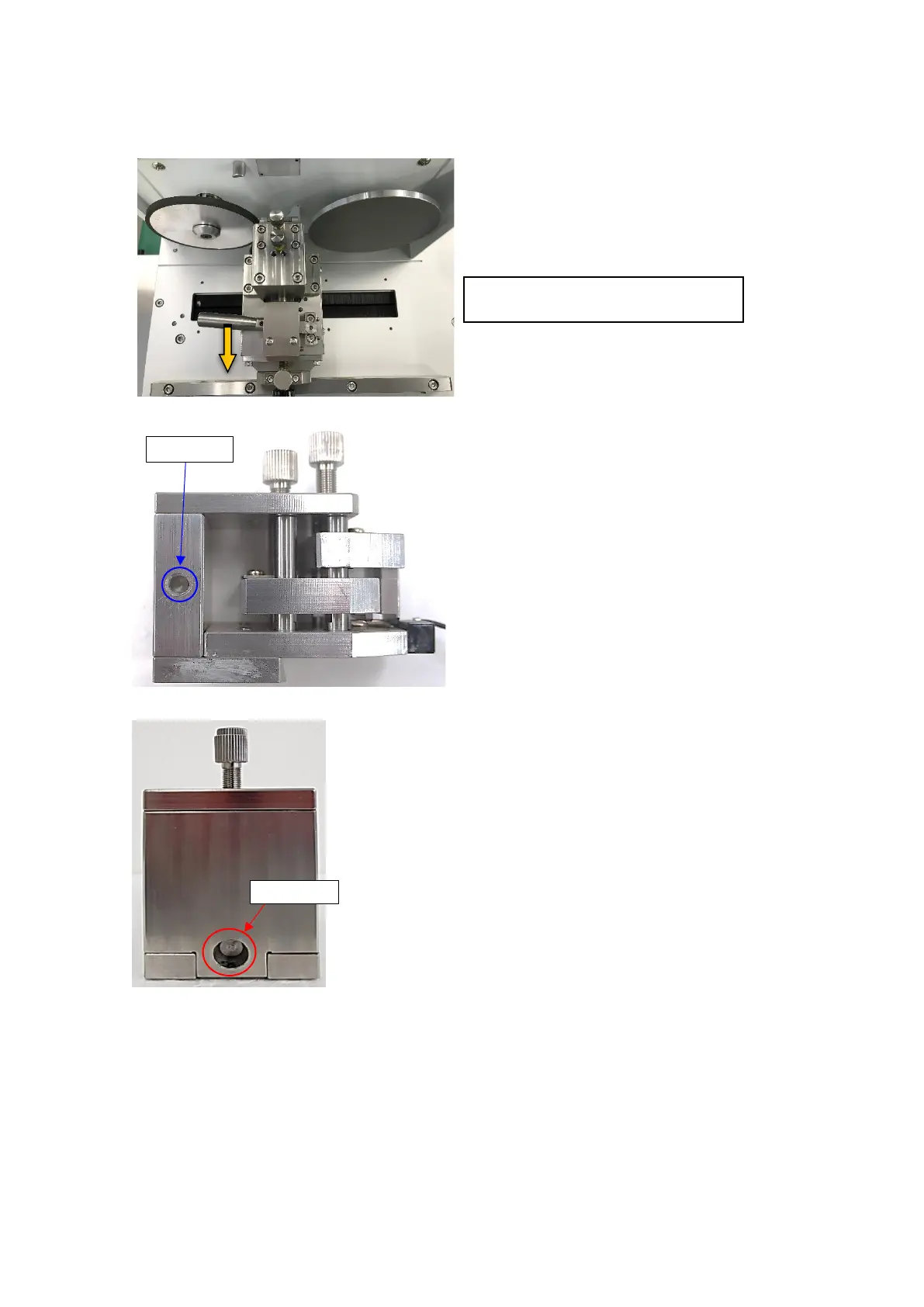

4. Pull the level down
→ Place the clamp on the transfer unit.
Align the clamp fixing hole with the
cylindrical pin.
→ Release the lever.
Grinding wheel thickness: 5mm
Wire barrel total length: 5mm or less
※Each clamp has 2 holes on its body:
● Fixing hole: Used when placing the clamps
on the transfer unit.
● Fitting hole: Used when placing the clamps
on the clamp holding stand.
5. Adjust the cutting position.
→ The conductive barrel should be within the range of the grinding wheel’s thickness.
※Refer to 4.2 Adjusting the cutting position (page 12) and CS07HI operation manual for
details.
To Next Page
